Black HDPE Graduated Narrow-Mouth Bottles
Capacity range
125–1000ml
- Material
- HDPE
- Height
- 112–214mm
- Diameter
- 52–96mm
OEM / ODM Customization
Color, capacity, logo, packaging and product specifications.
Samples Available
Factory Pricing
Available Product Variants
Select a capacity to view the full-size SKU image.
Specifications
Opaque black HDPE helps shield light-sensitive contents, while molded graduations on selected sizes support quick volume reference.
| SKU / Capacity | Mouth(mm) | Diameter(mm) | Height(mm) |
|---|---|---|---|

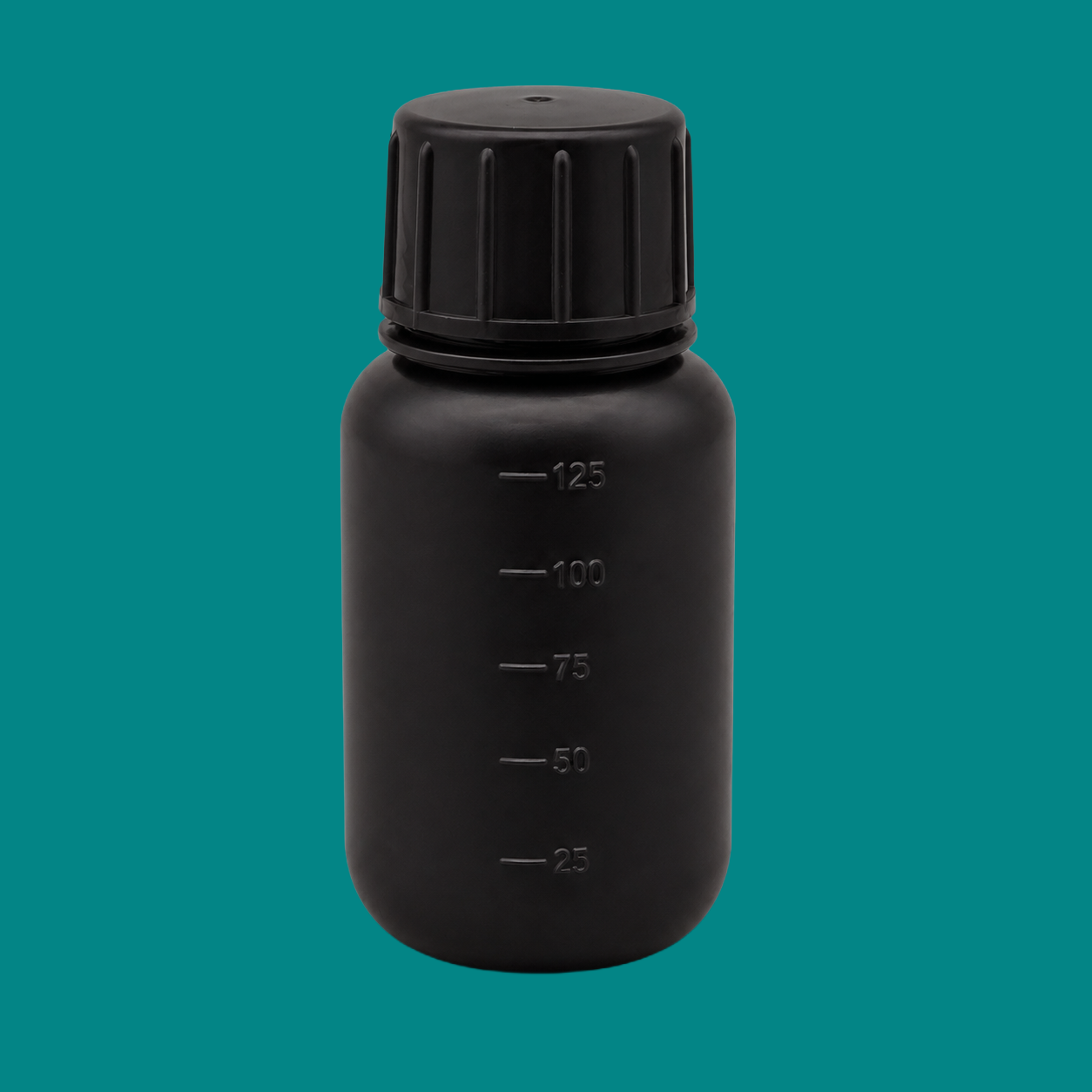

| 82266125ml | 28 | 52 | 112 |

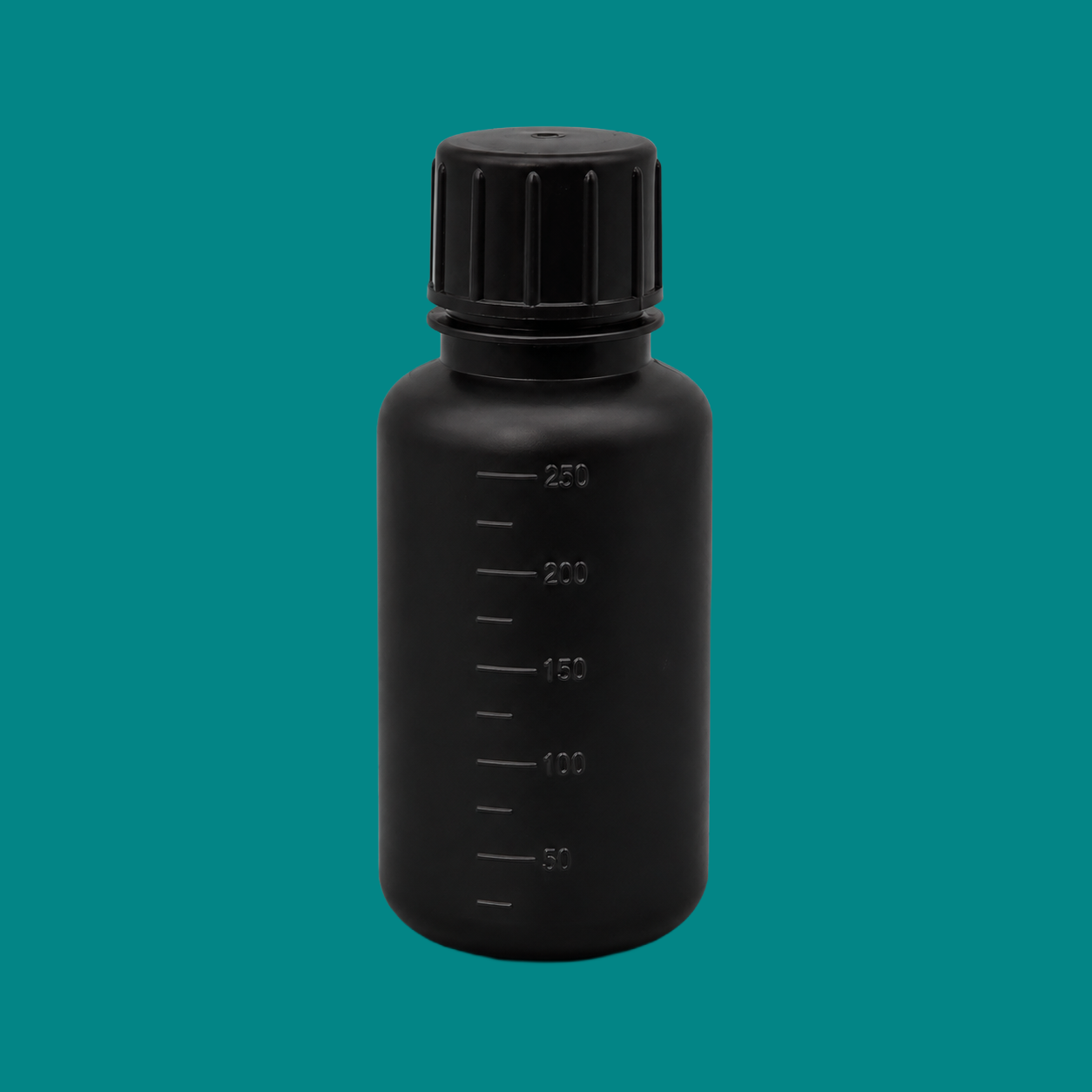

| 82267250ml | 28 | 61 | 150 |

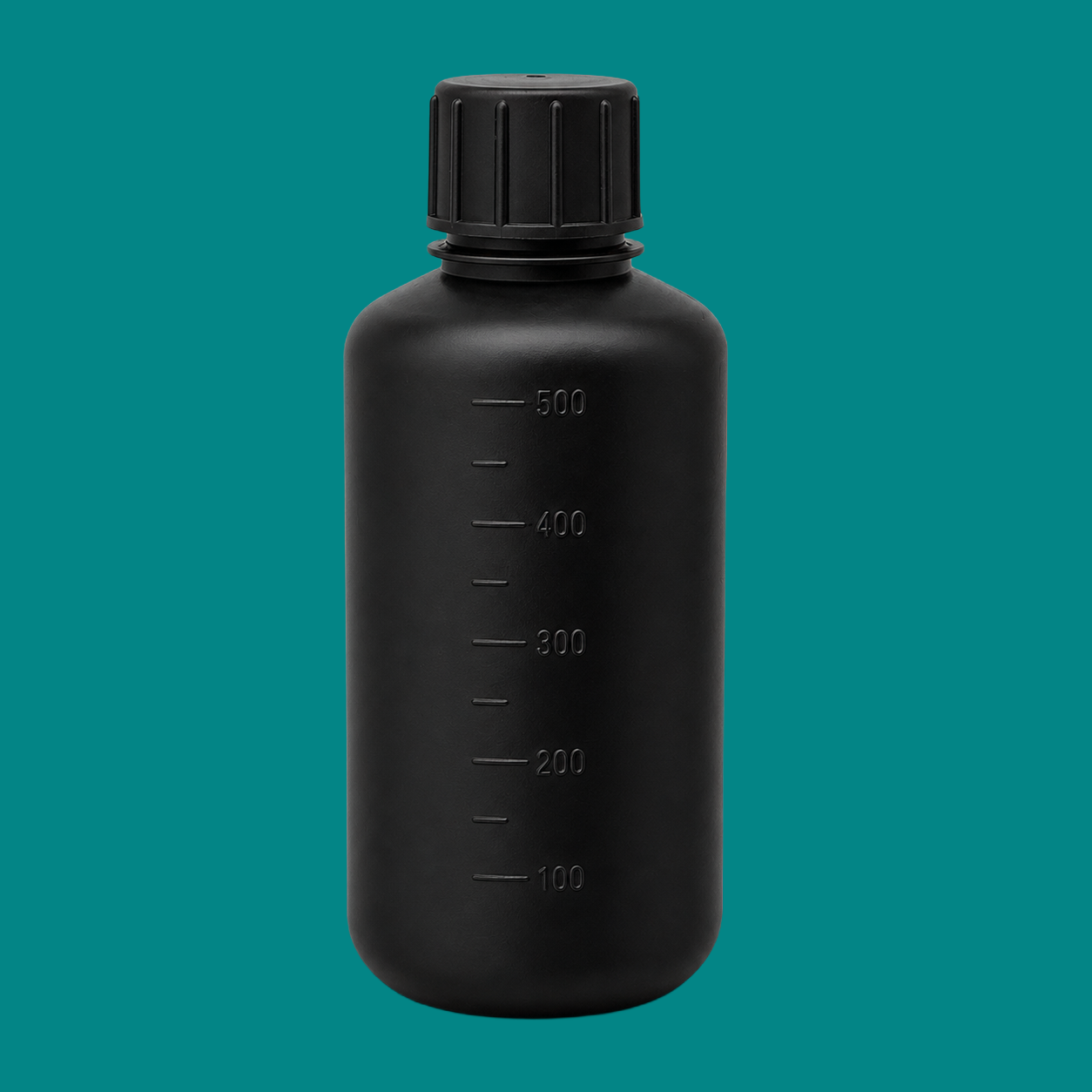

| 82268500ml | 28 | 71 | 180 |

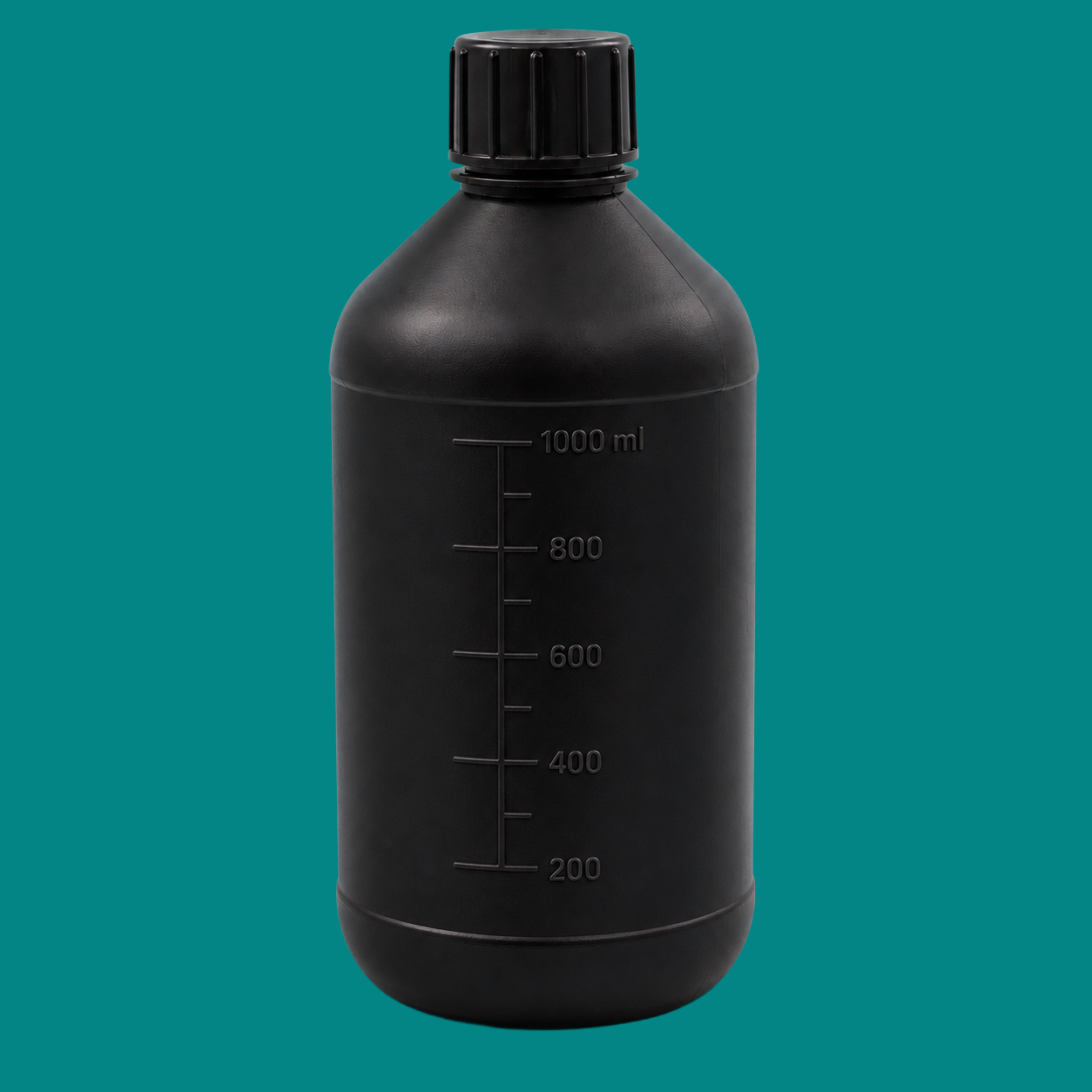

| 822691000ml | 28 | 96 | 214 |
Services & Certification
Sterilization
Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.
Packaging Design
Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.
ISO 13485 Certification
Product description
Black HDPE graduated narrow-mouth reagent bottles are supplied in 125ml, 250ml, 500ml and 1000ml capacities. Each variant combines an opaque black body, a 28mm opening and a screw closure for controlled pouring. Visible molded markings provide a practical volume reference, while the coordinated bottle sizes cover samples, working reagents and prepared liquids. For light-sensitive contents, confirm that the selected bottle meets the required protection level.
