Large Format

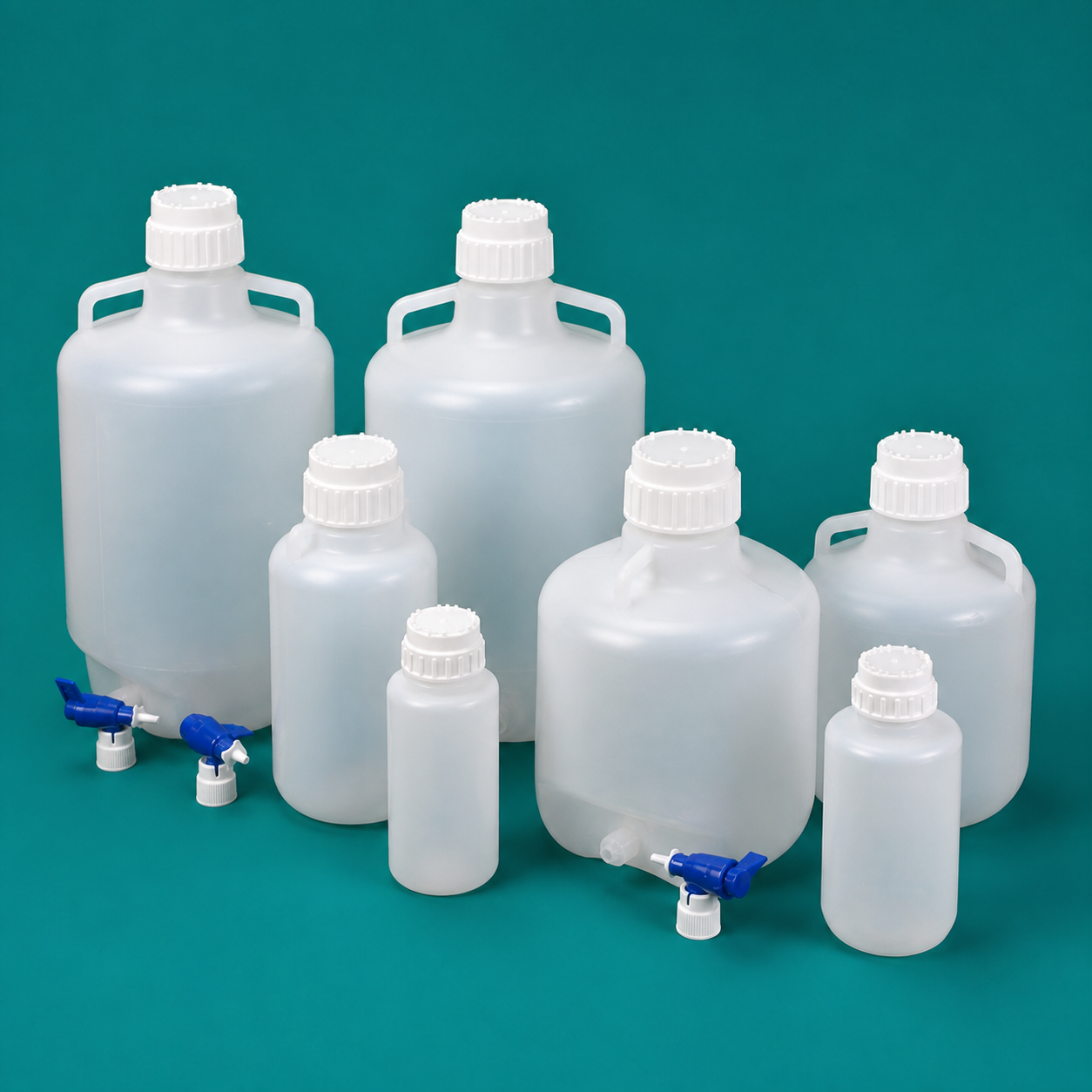

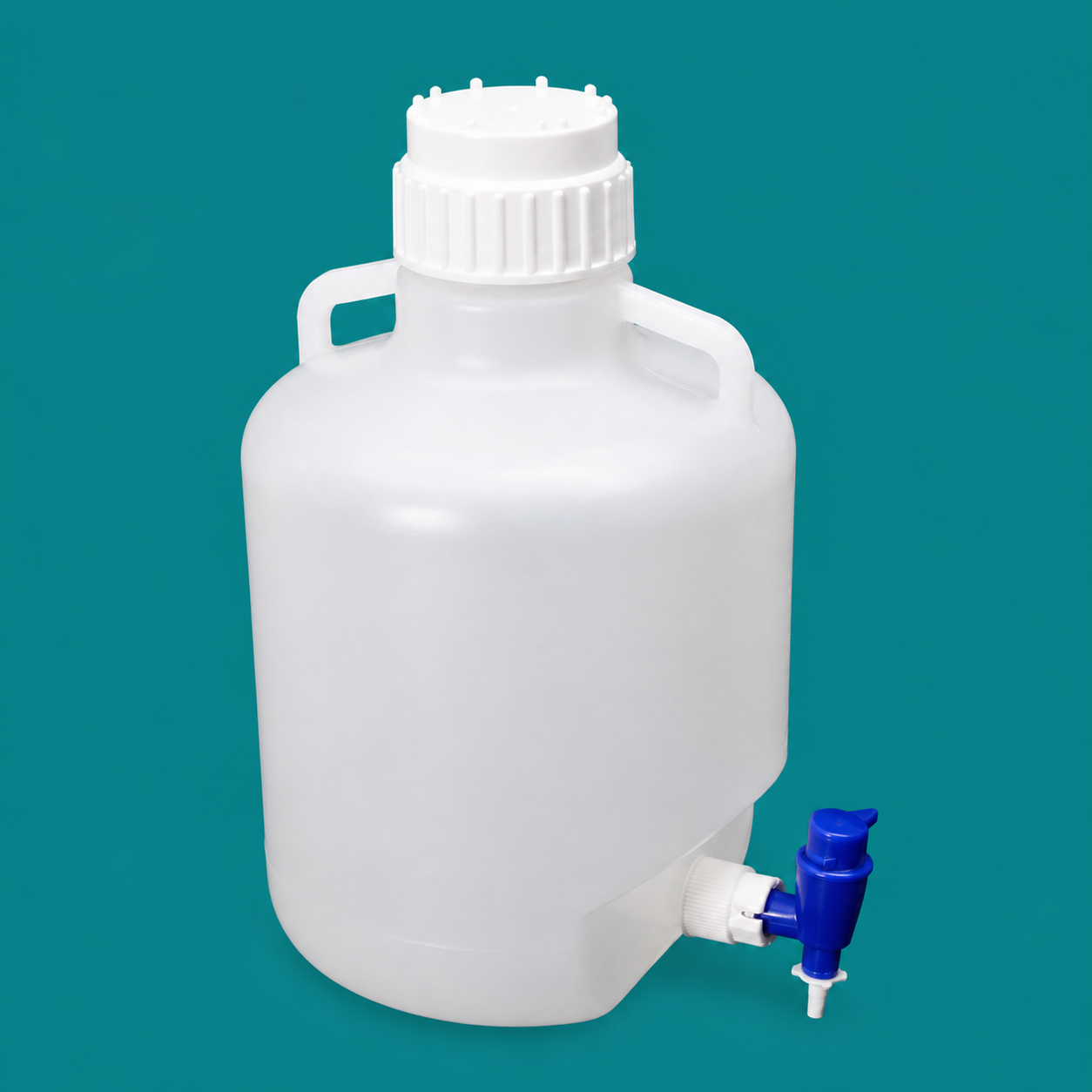

HDPE Dispensing Carboys
Product Details
- Capacity
- 5L10L20L25L50L
- Cap Color
- WhiteBlack
- Mouth
- 66mm73mm
- Diameter
- 175mm250mm268mm360mm176mm234mm320mm
Available Product Variants & Specifications
Select a capacity to view the full-size SKU image.
Specifications
| Item No. | Capacity | Cap Color | Mouth(mm) | Diameter(mm) | Height(mm) |
|---|---|---|---|---|---|

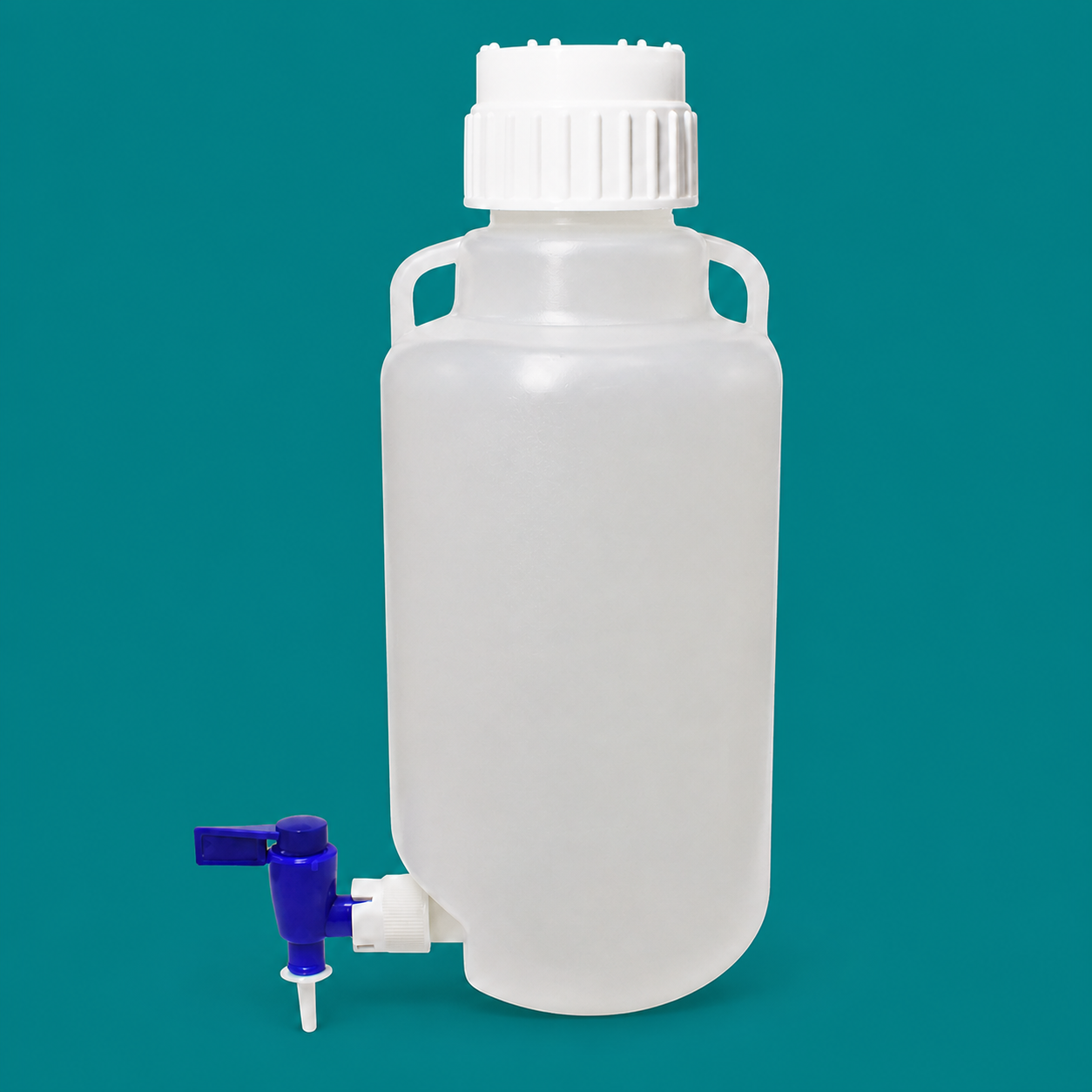

| 87290 | 5L | White | 66 | 175 | 400 |

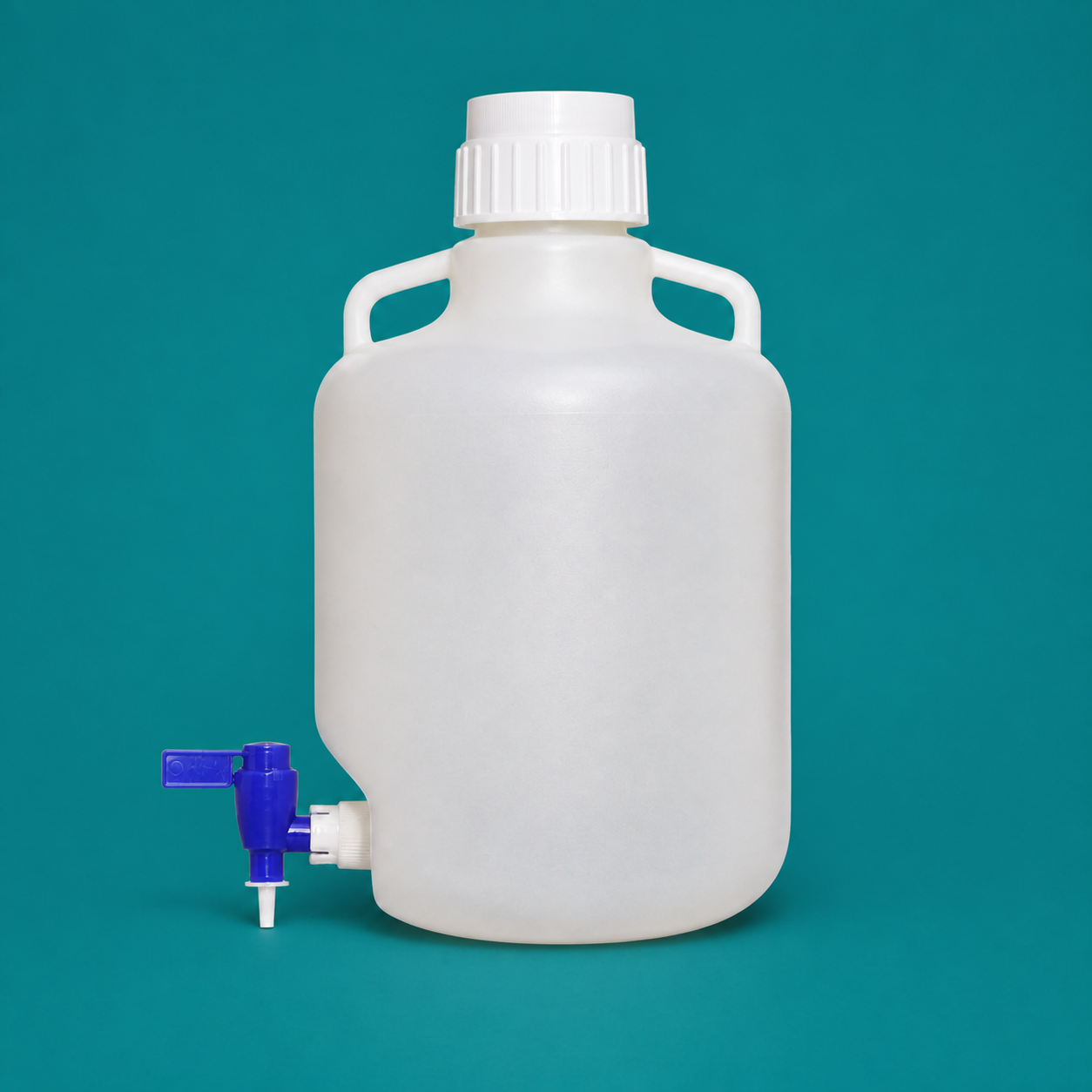

| 87291 | 10L | White | 66 | 250 | 400 |

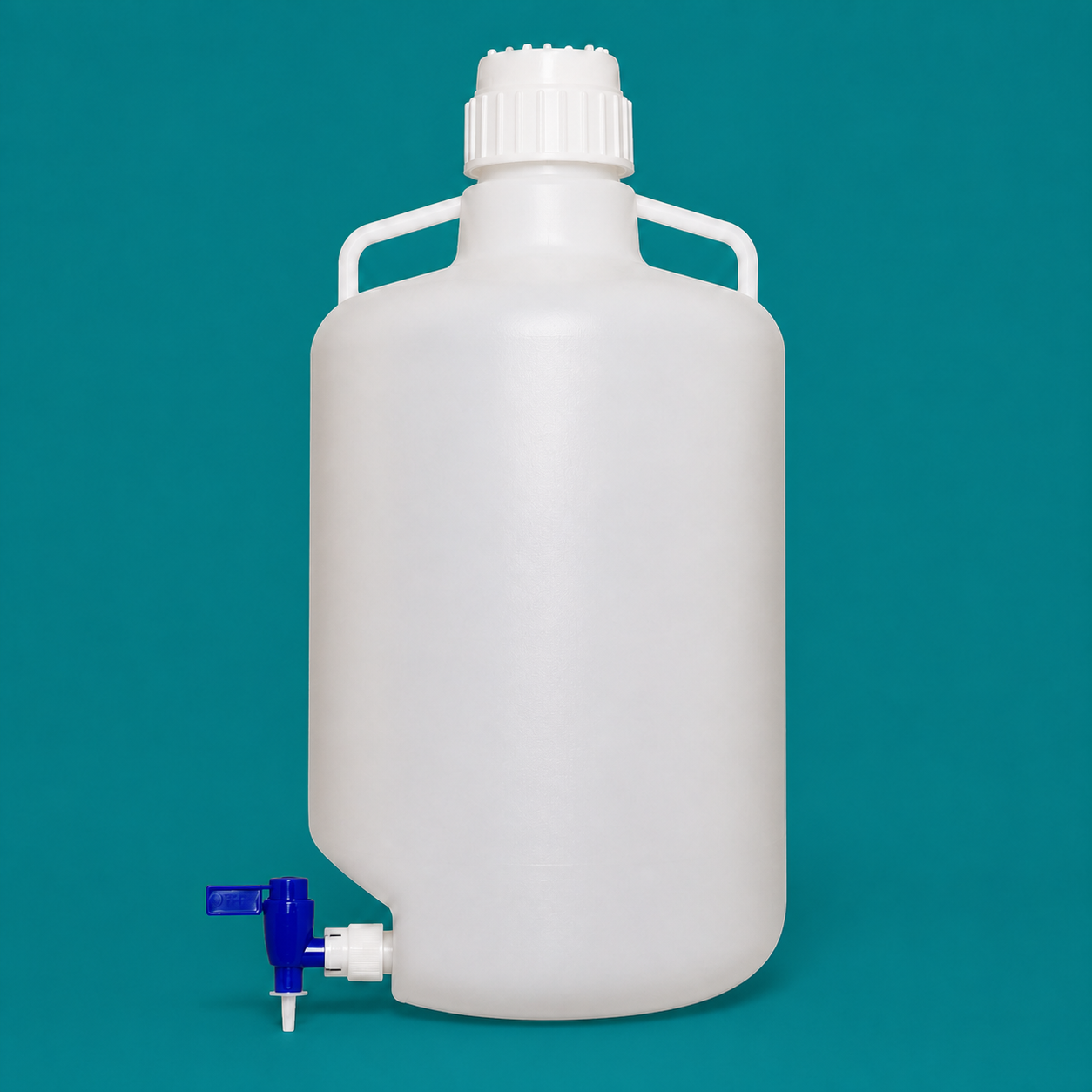

| 87292 | 20L | White | 66 | 268 | 528 |

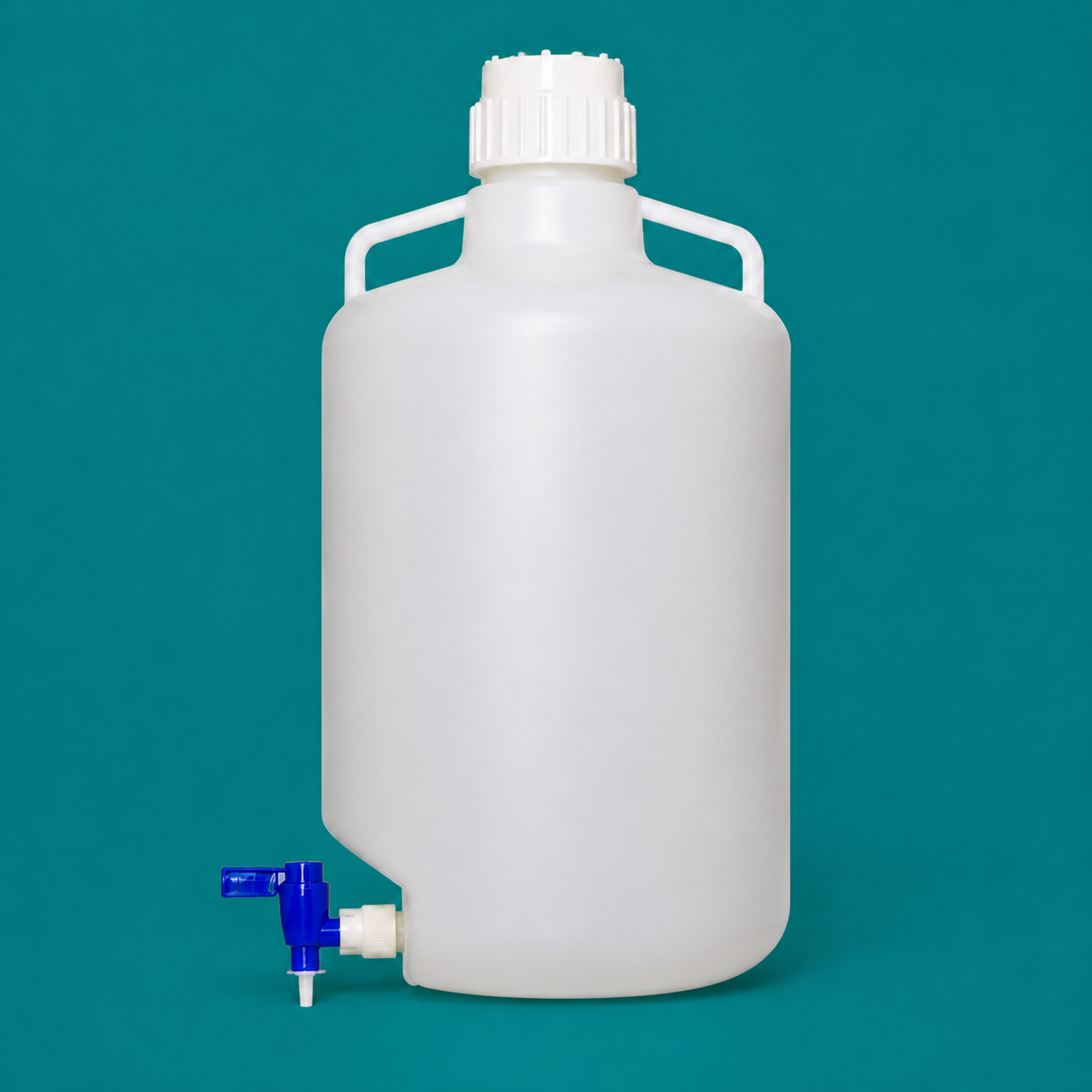

| 87293 | 25L | White | 66 | 268 | 610 |

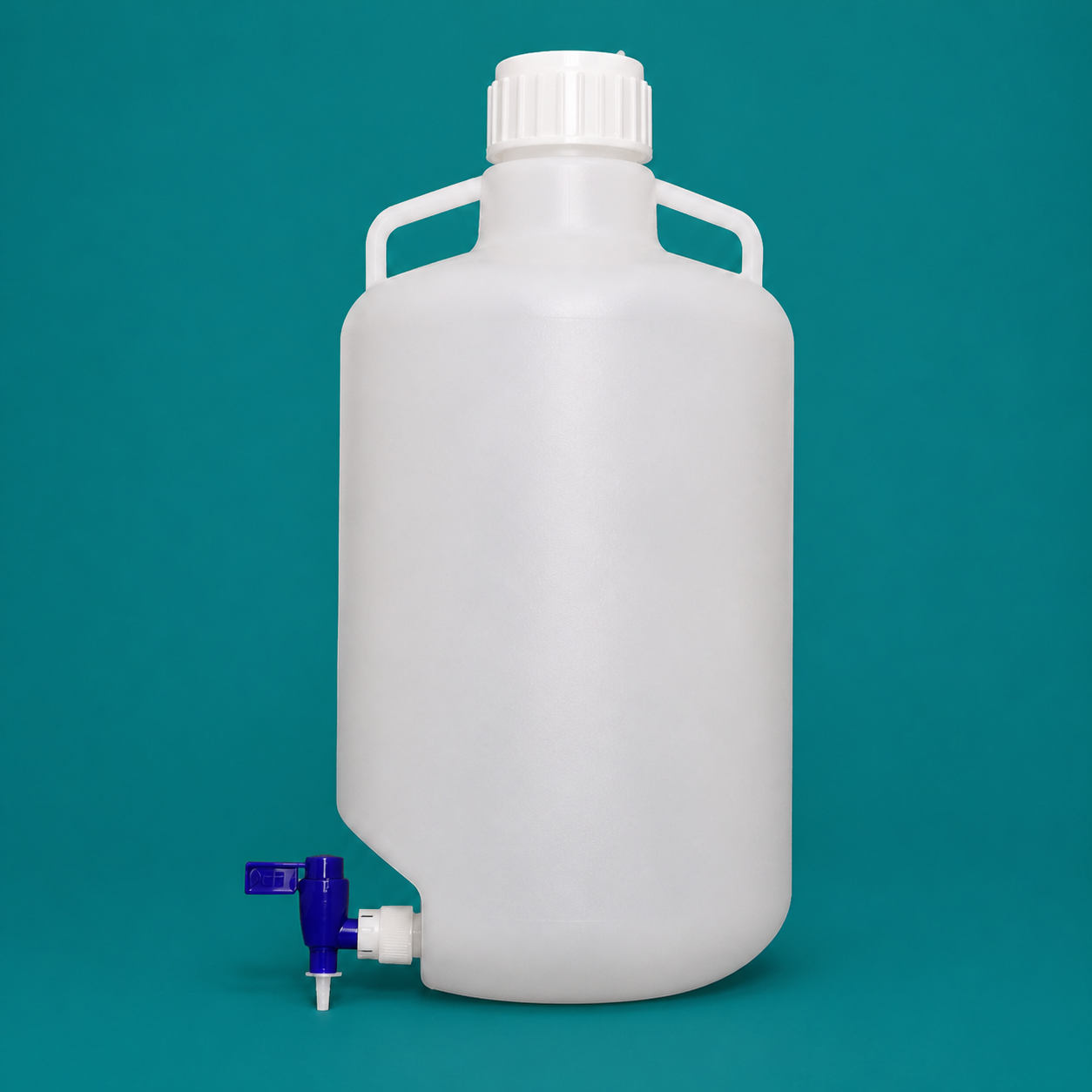

| 87294 | 50L | White | 66 | 360 | 700 |

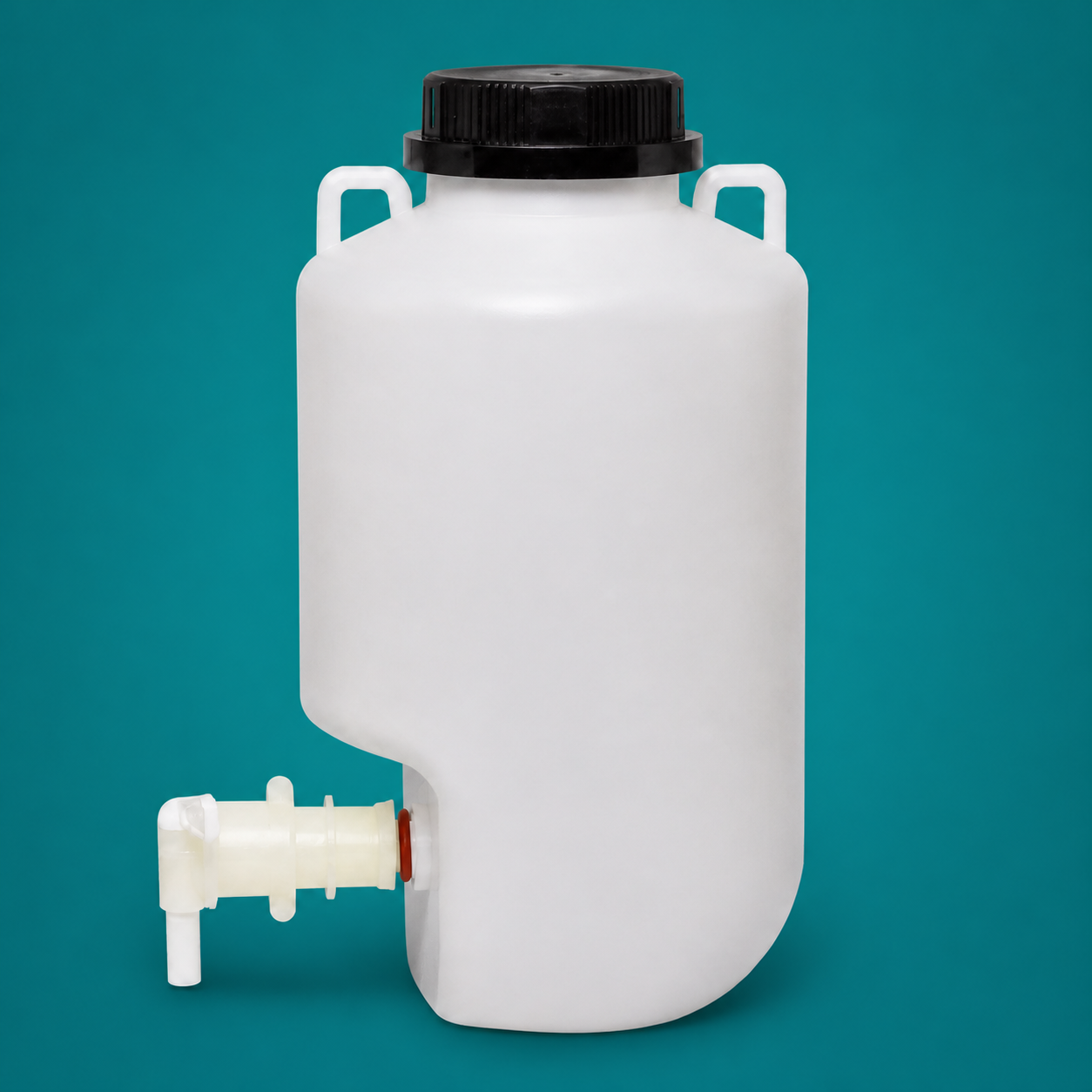

| 87295 | 5L | Black | 73 | 176 | 328 |

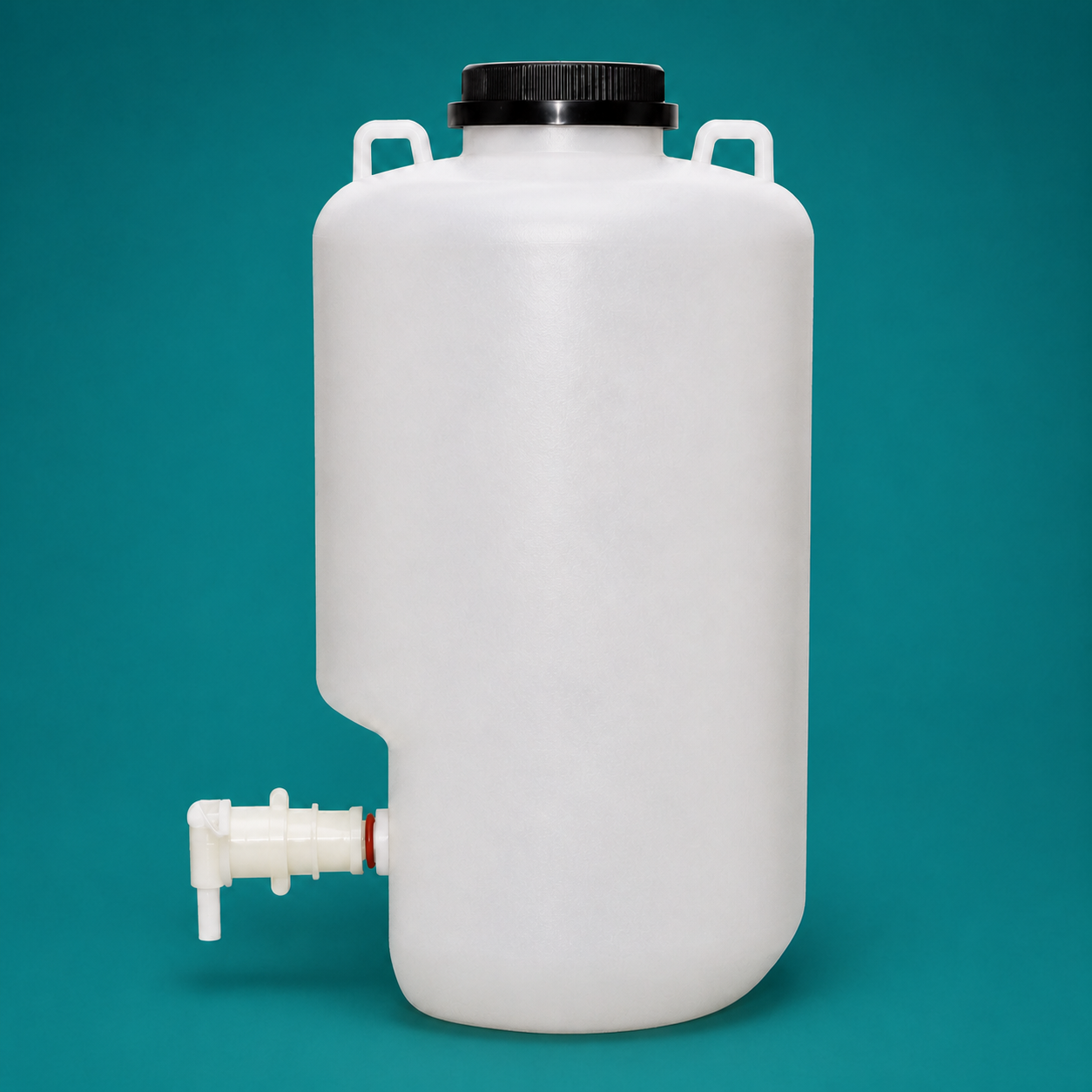

| 87296 | 10L | Black | 73 | 234 | 368 |

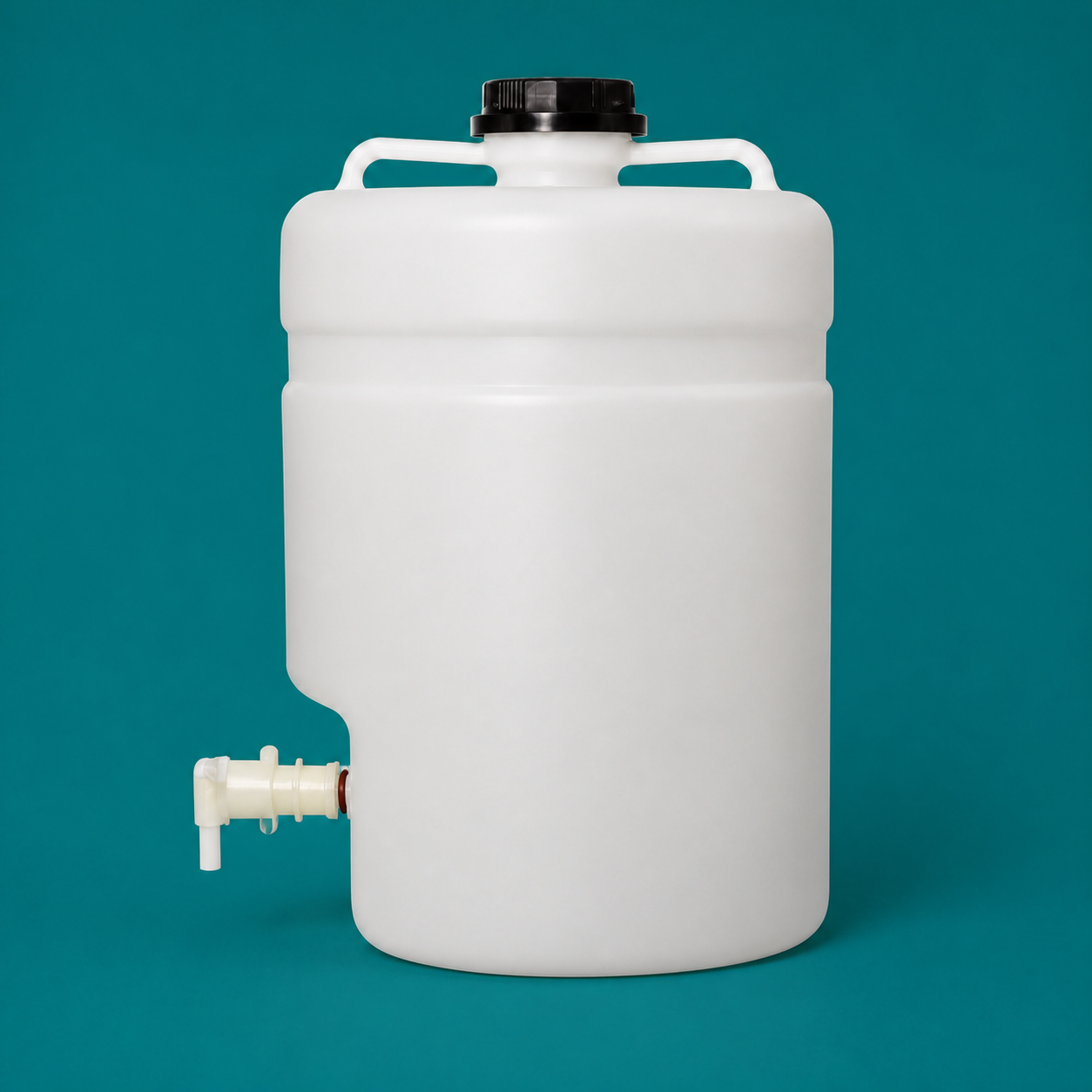

| 87297 | 25L | Black | 73 | 320 | 475 |
Accessory Specifications
Connection and outlet dimensions for compatible dispensing faucets.
| Accessory | SKU | Connection OD(mm) | Connection ID(mm) | Outlet ID(mm) | Outlet OD(mm) |
|---|---|---|---|---|---|

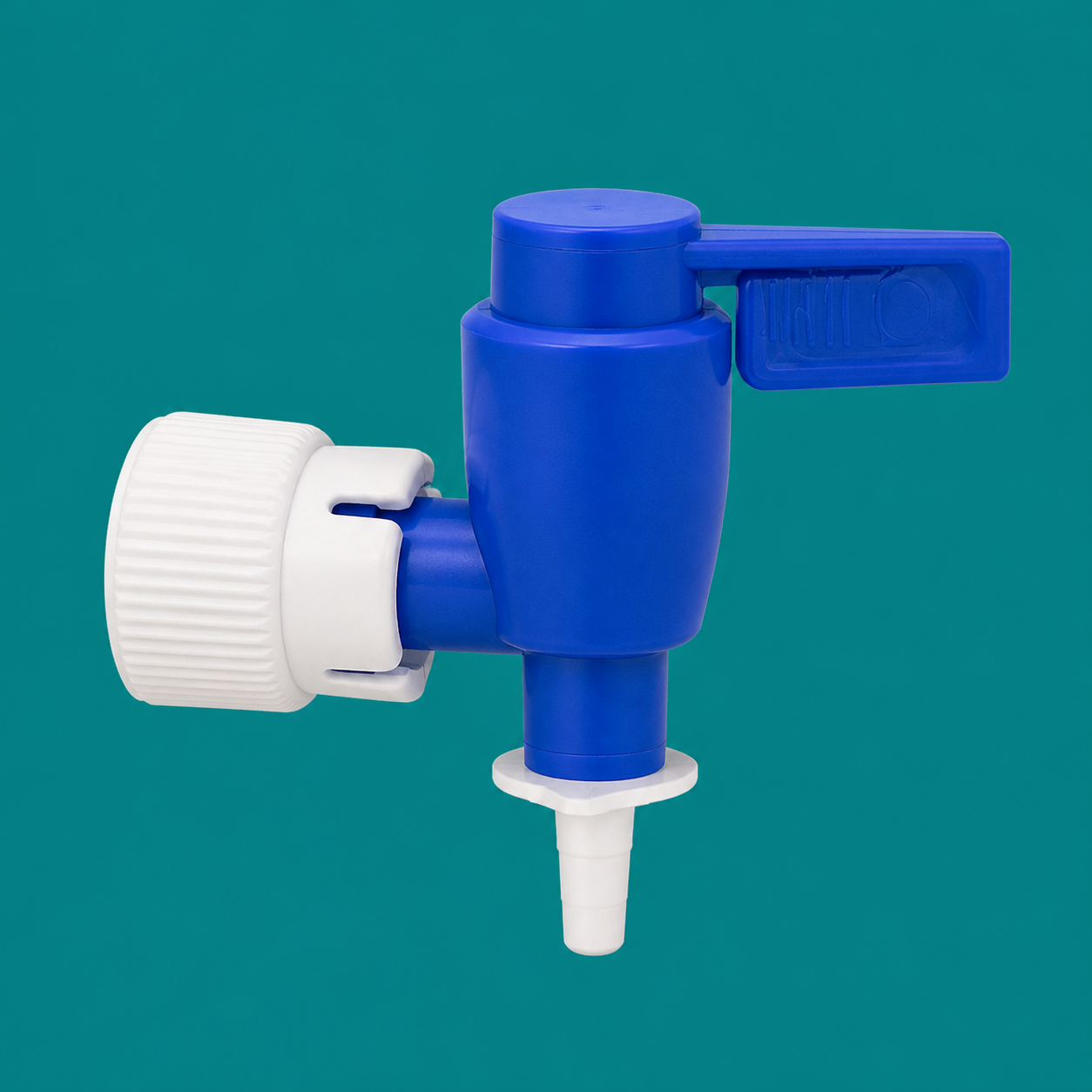

| Blue Faucet | 773960-32 | 35 | 27 | 4 | 6.5 |

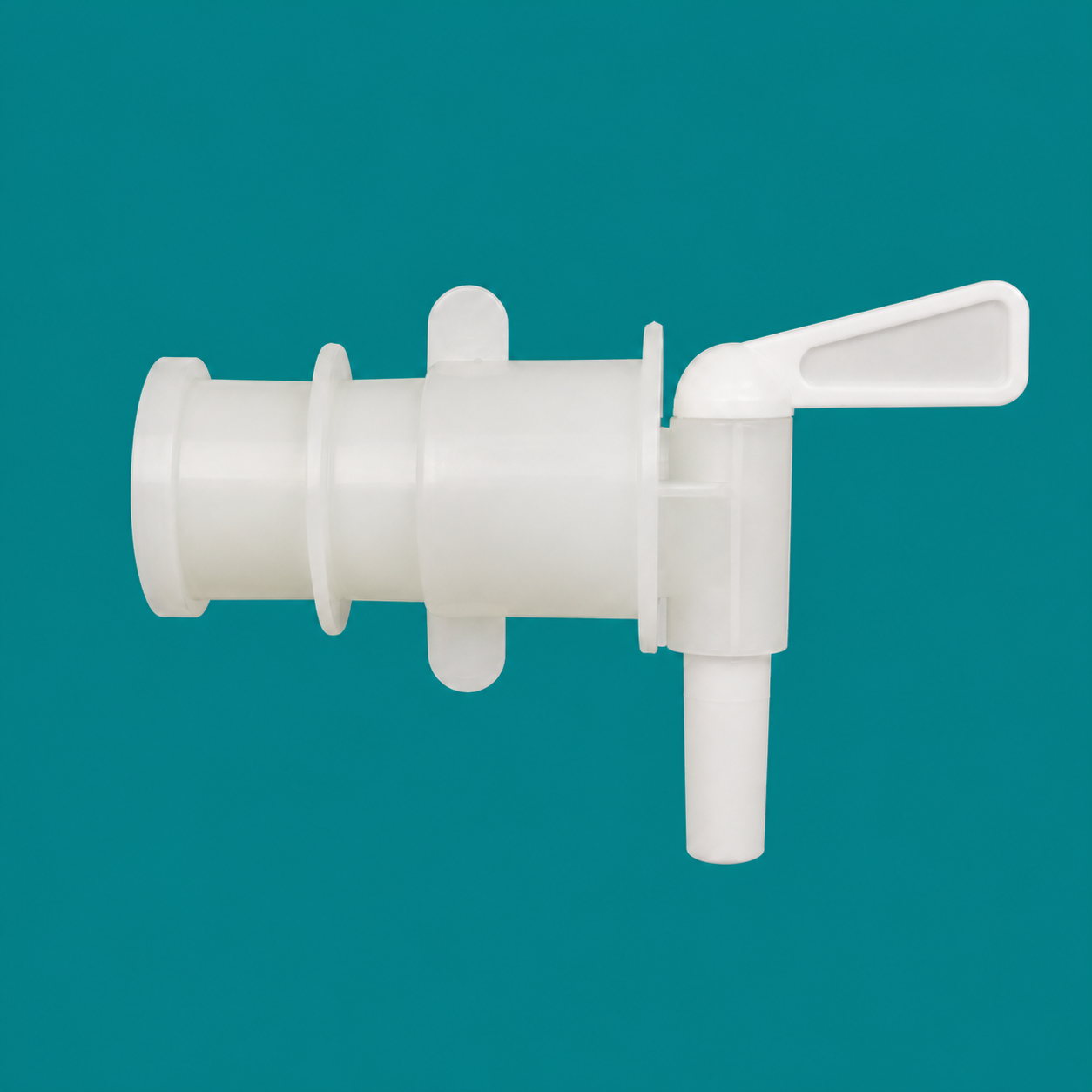

| White Faucet | 773960-33 | 32 | 20 | 9 | 11 |
