Custom Mold
Support from bottle and closure design through custom tooling, prototype sampling, and production validation.
Lateral Flow Test Cassettes R101-R106
Capacity range
5 options available
- Material
- —
- Model
- 6 options available
- Outside Dimensions
- 5 options available
OEM / ODM Customization
Color, capacity, logo, packaging and product specifications.
Samples Available
Factory Pricing
Available Product Variants
Select a model to view the full-size SKU image.
Specifications
Lateral flow test cassette housings available in six configurations, from compact single-panel formats to a large five-panel design.
| Model | SKU | Panel Format | Outside Dim.(mm) | Test Strip(mm) |
|---|---|---|---|---|

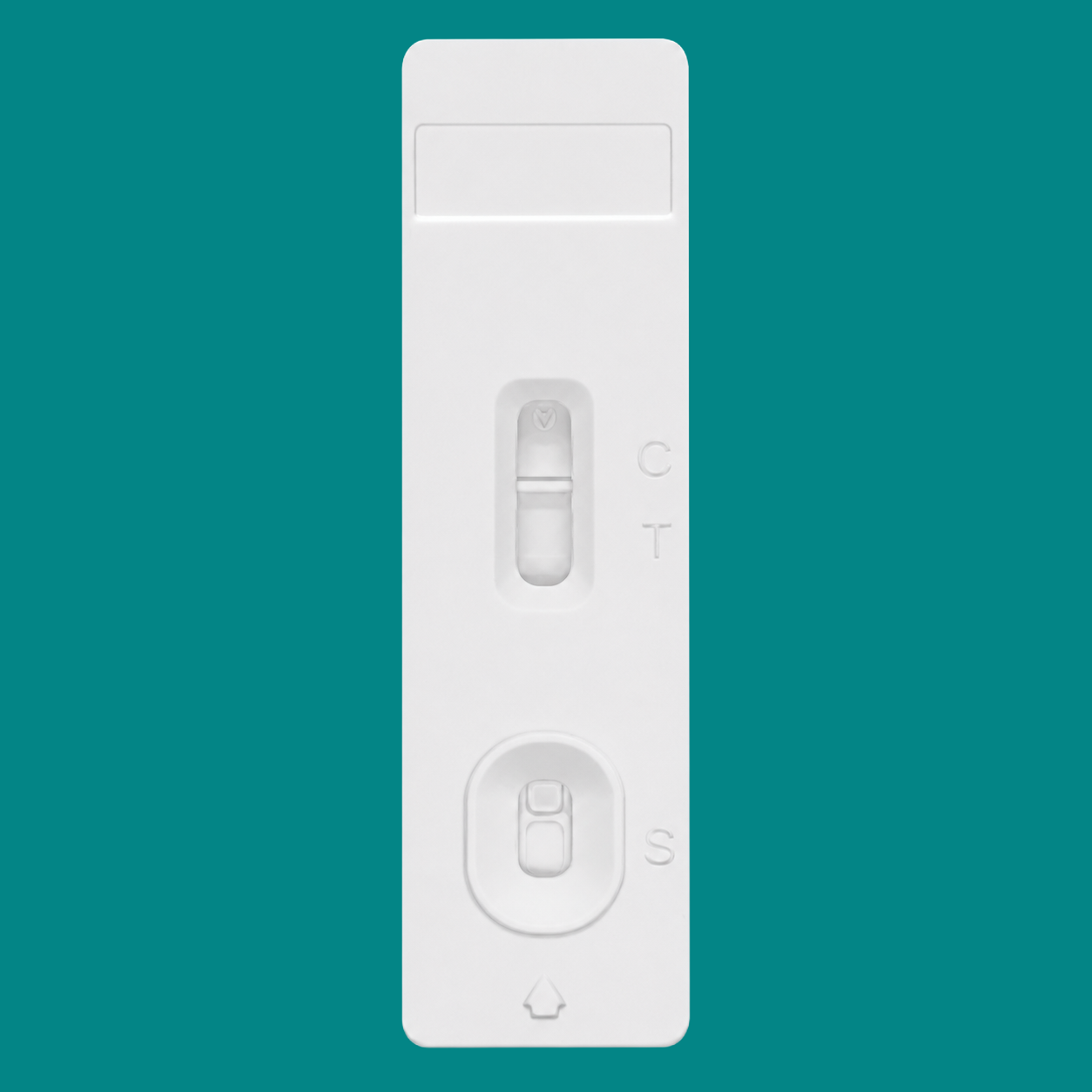

| R101 | 62039 | Single panel | 70×20×5.5 | 4.0×60 |

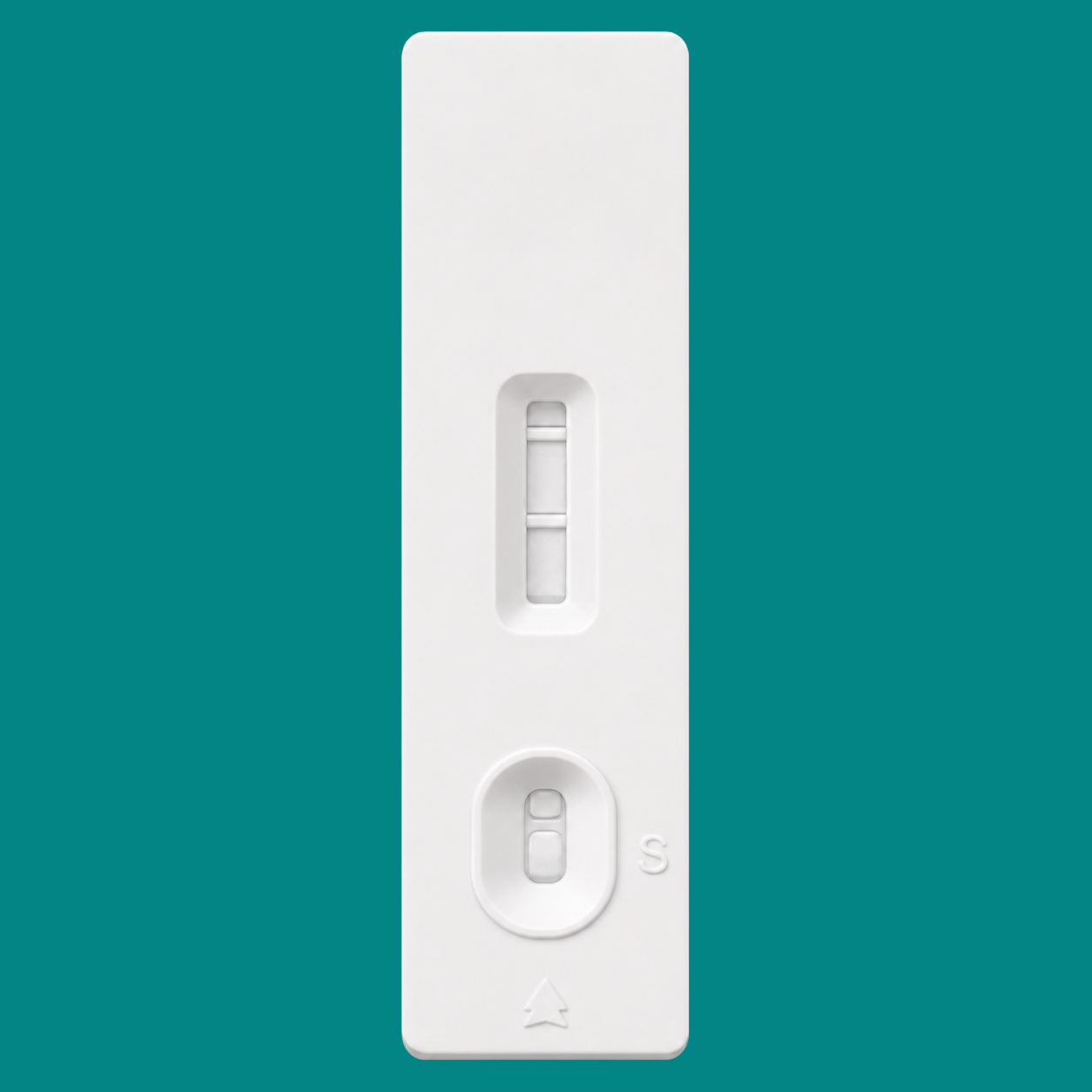

| R102 | 62050 | Single panel | 70×20×5.5 | 3.0×60 |

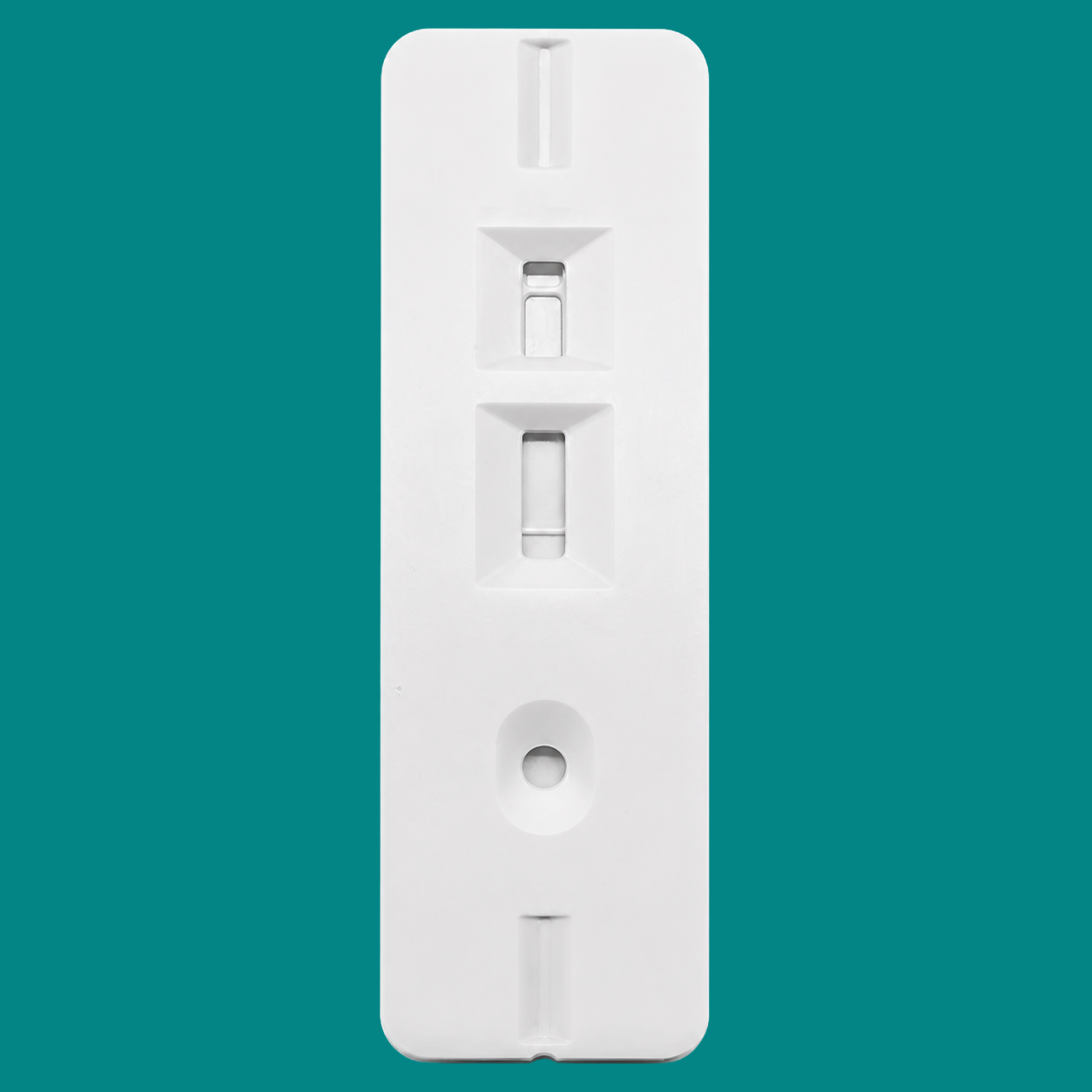

| R103 | 62051 | Slim single panel | 82×25×4.7 | 3.6×60 |

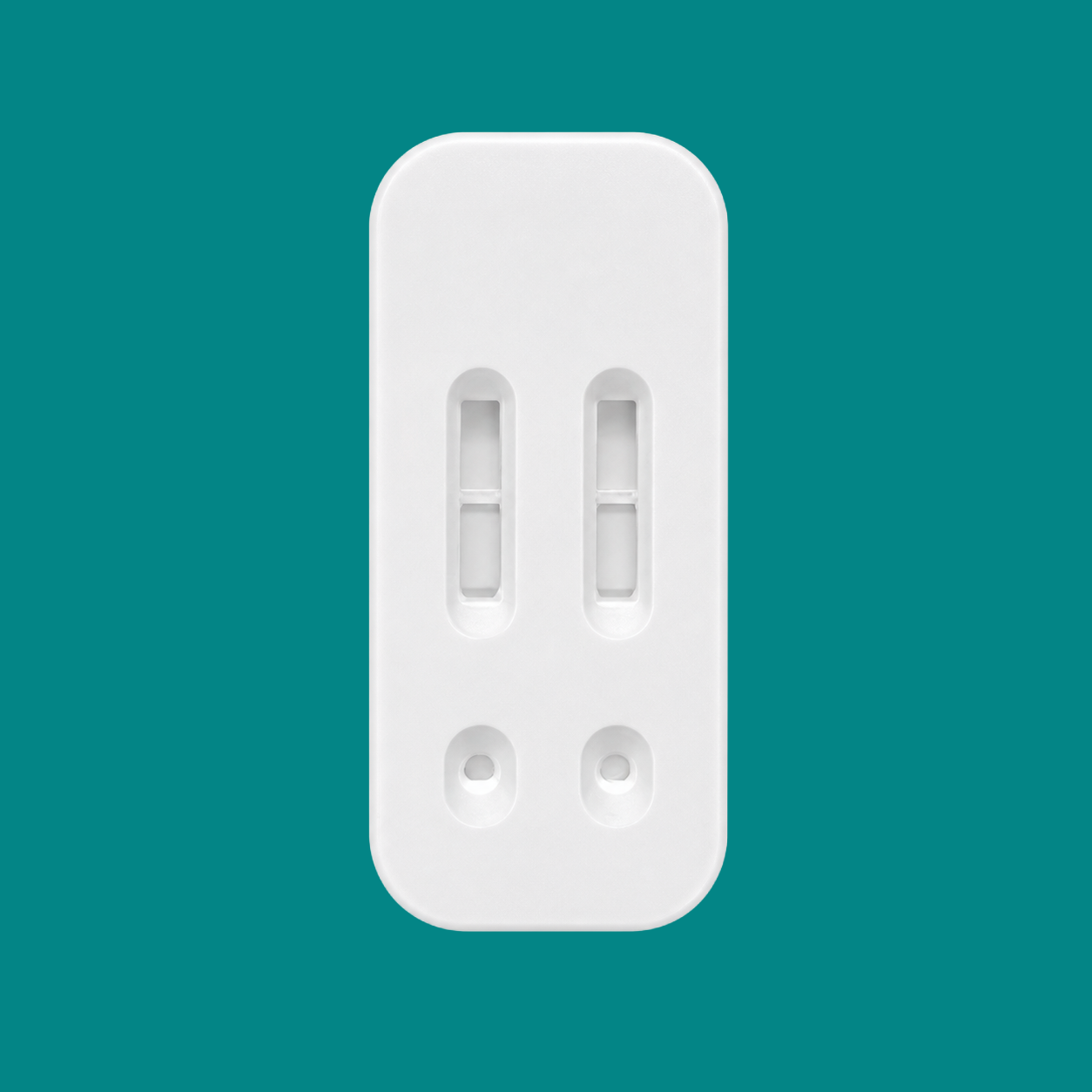

| R104 | 62052 | Dual panel | 70×32×6.3 | 3.8×60 |

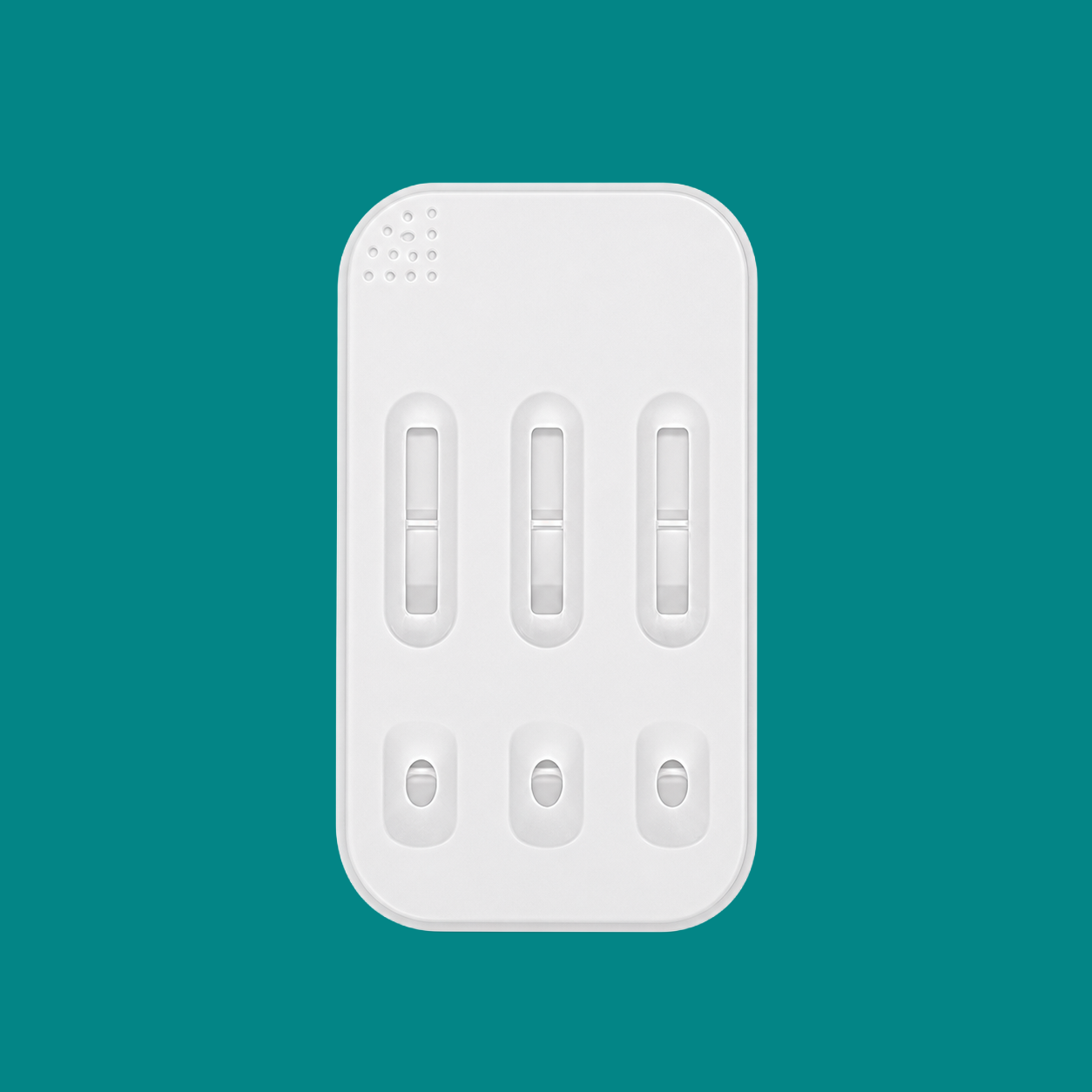

| R105 | 62053 | Triple panel | 70×40×6.0 | 3.0×60 |

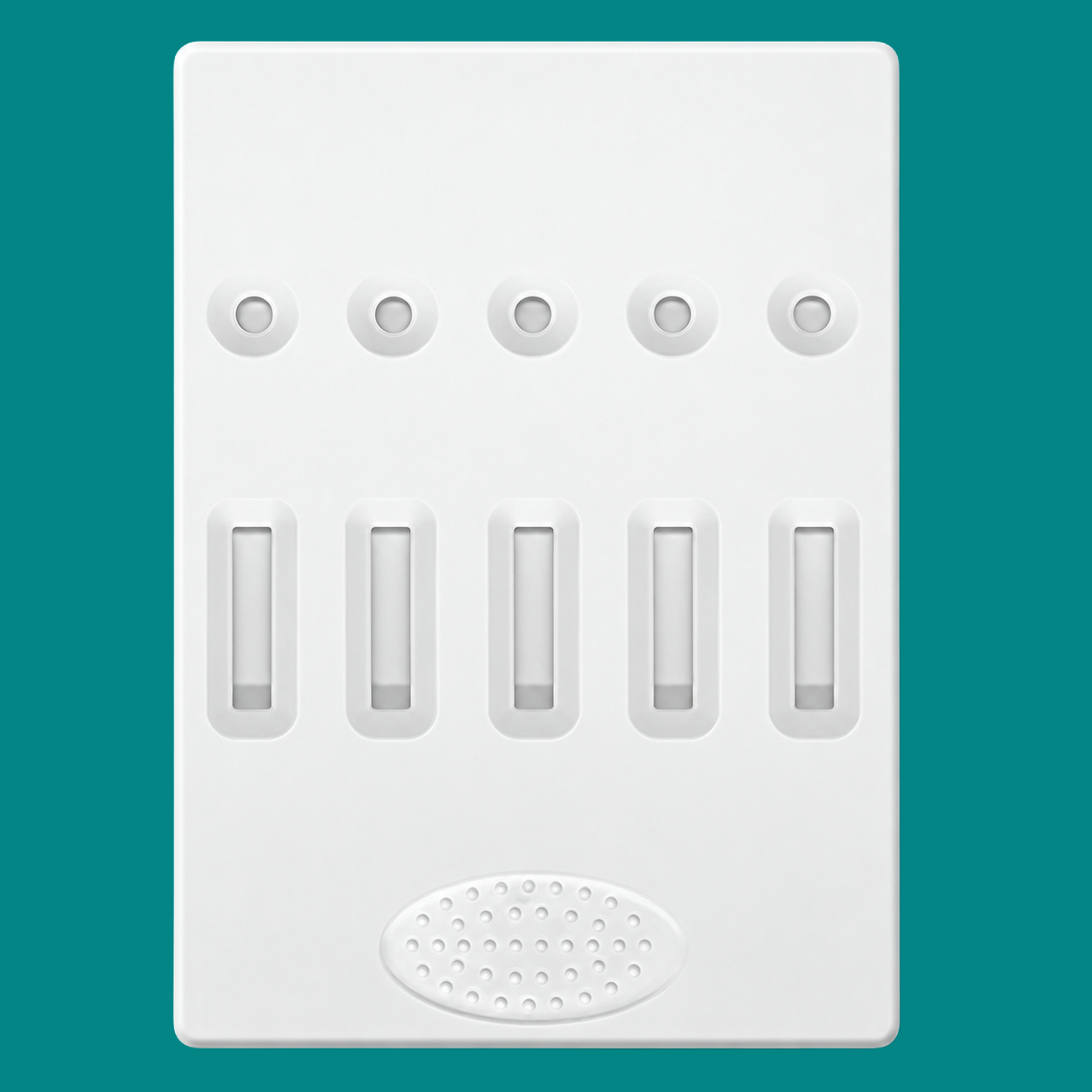

| R106 | 62053 | Five panel | 100×70×5.0 | 4.0×78.5 |
More in Diagnostic Consumables
Services & Certification
Sterilization
Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.
Packaging Design
Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.
ISO 13485 Certification
Product description
Lateral flow test cassette housings cover six R101–R106 models, including standard and slim single-panel, dual-panel, triple-panel and five-panel layouts. Each variant combines a different housing footprint, read-window arrangement and supported strip format for rapid-test design and diagnostic kit assembly. These are empty housings rather than finished assays; match the cassette, strip and assembly process before validation or use in an IVD product.
