Narrow-Mouth Amber HDPE Bottles
Capacity range
4–5000ml
- Material
- HDPE
- Mouth / body / height
- 17 options available
- Pack / visible variant
- Pack of 5 · Pack of 2 · Thickened
OEM / ODM Customization
Color, capacity, logo, packaging and product specifications.
Samples Available
Factory Pricing
Available Product Variants
Select a capacity to view the full-size SKU image.
Specifications
Amber HDPE round reagent bottles in wide-, medium-, and narrow-mouth configurations.
| SKU / Capacity | Mouth(mm) | Diameter(mm) | Height(mm) |
|---|---|---|---|

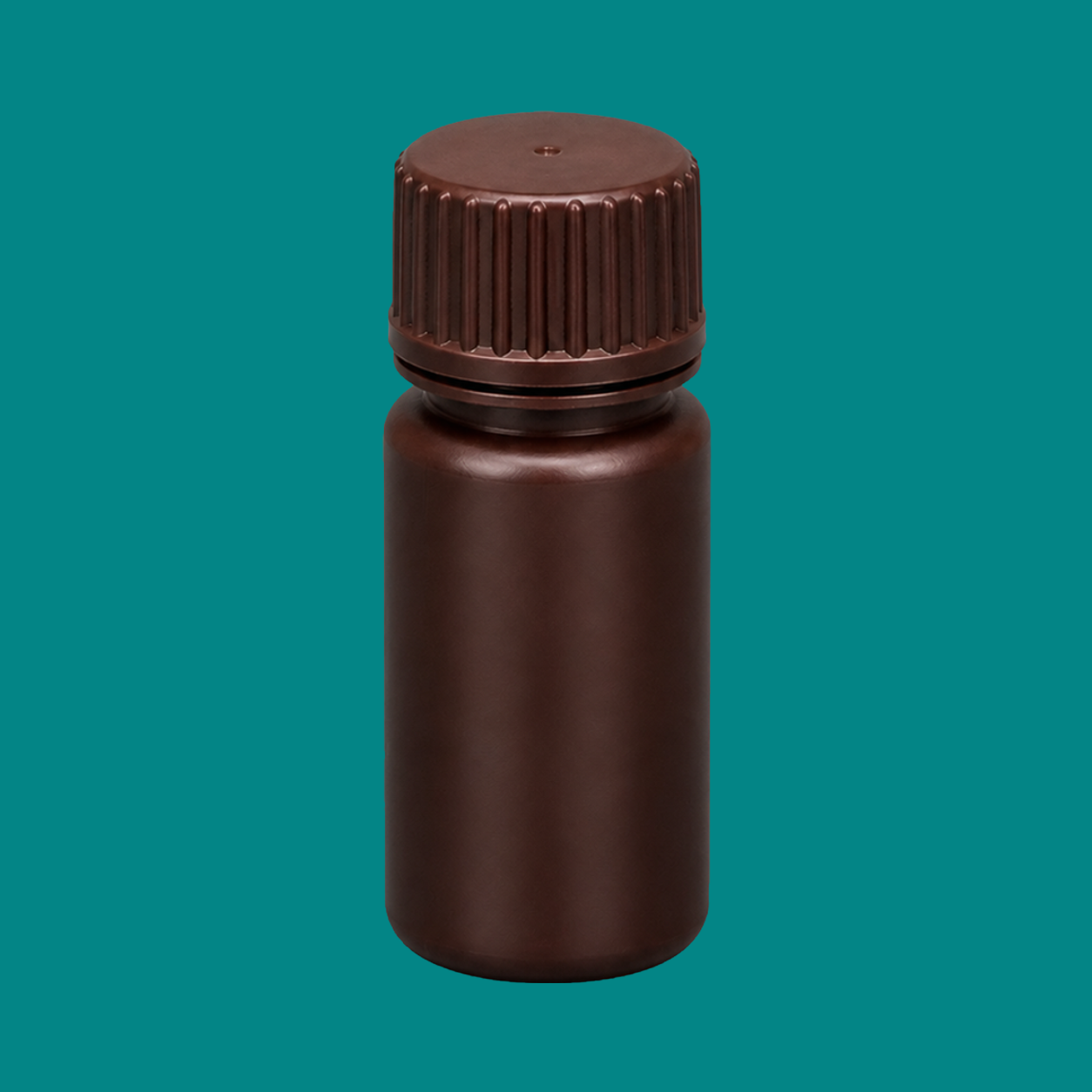

| 82116A4ml | 8 | 16 | 41 |

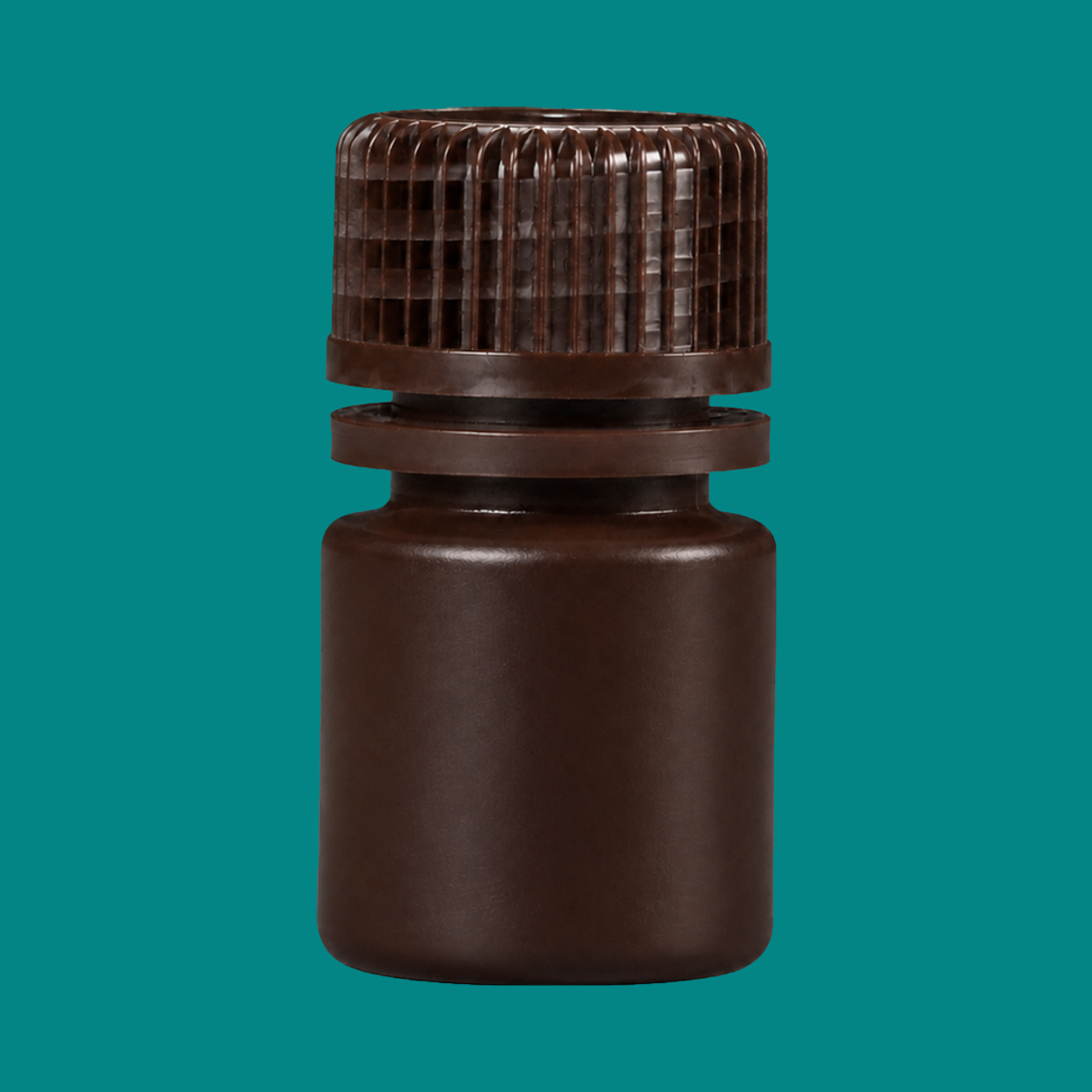

| 82058A8ml | 14 | 25 | 44.8 |

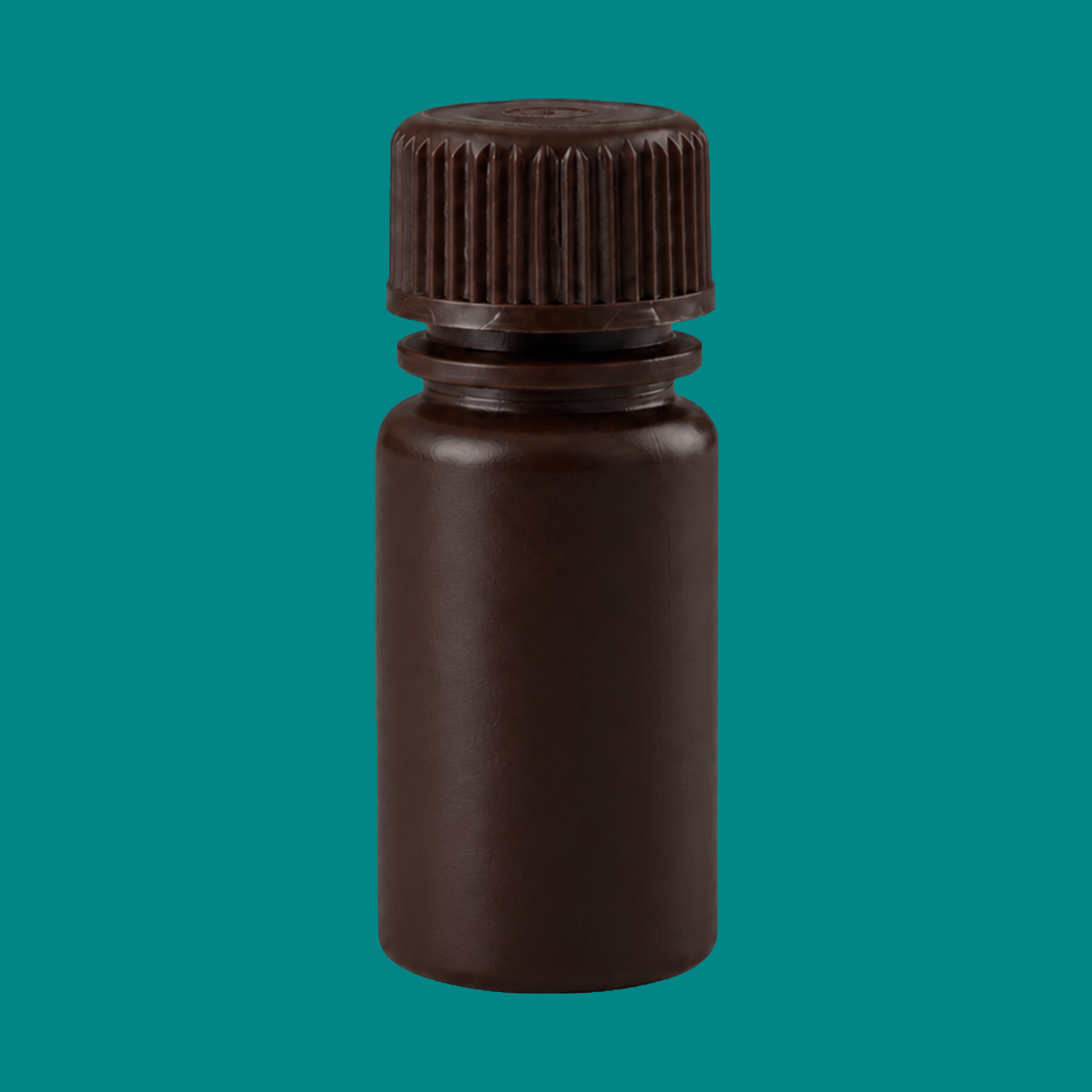

| 82059A15ml | 14 | 25 | 57 |

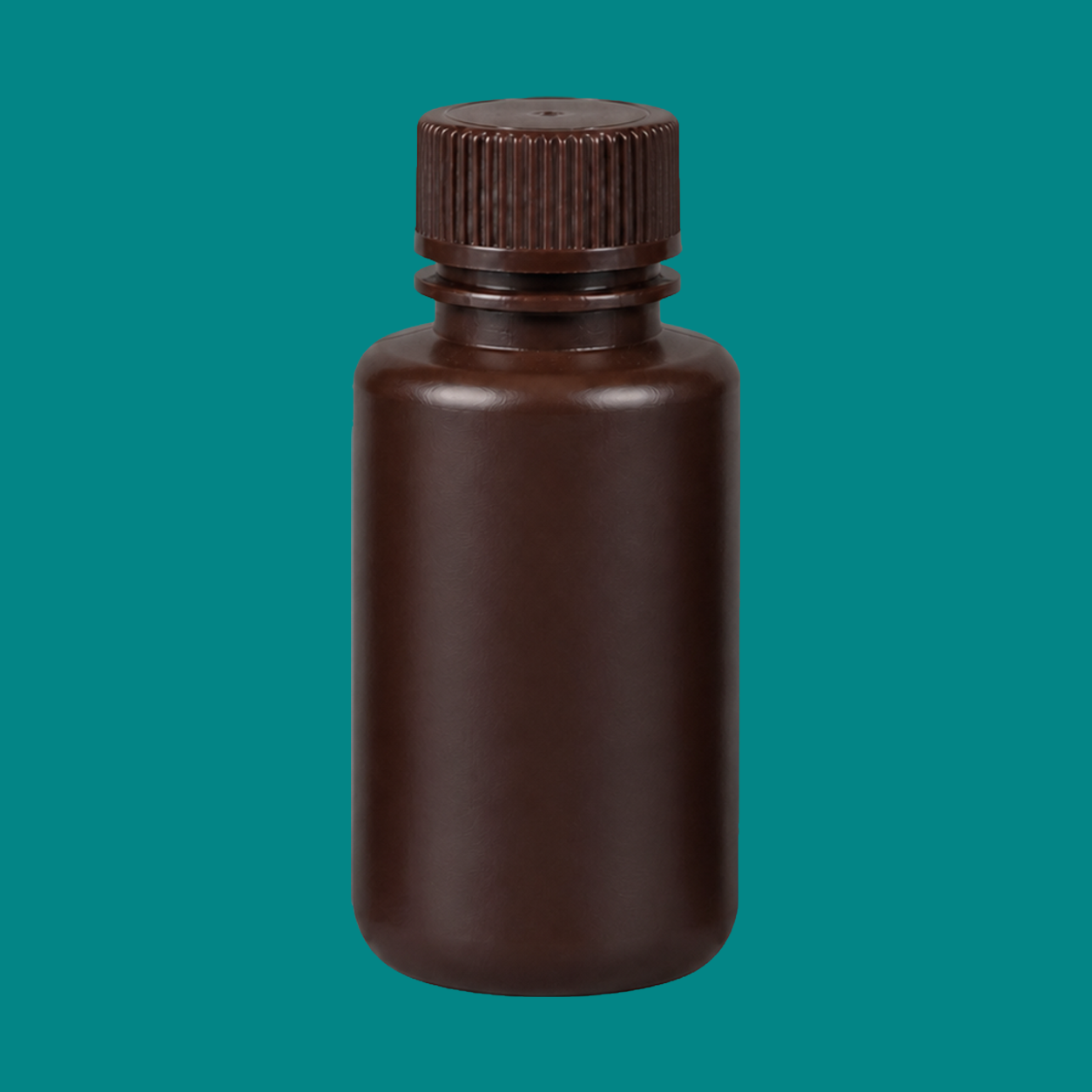

| 82060A30ml | 14 | 34 | 62 |

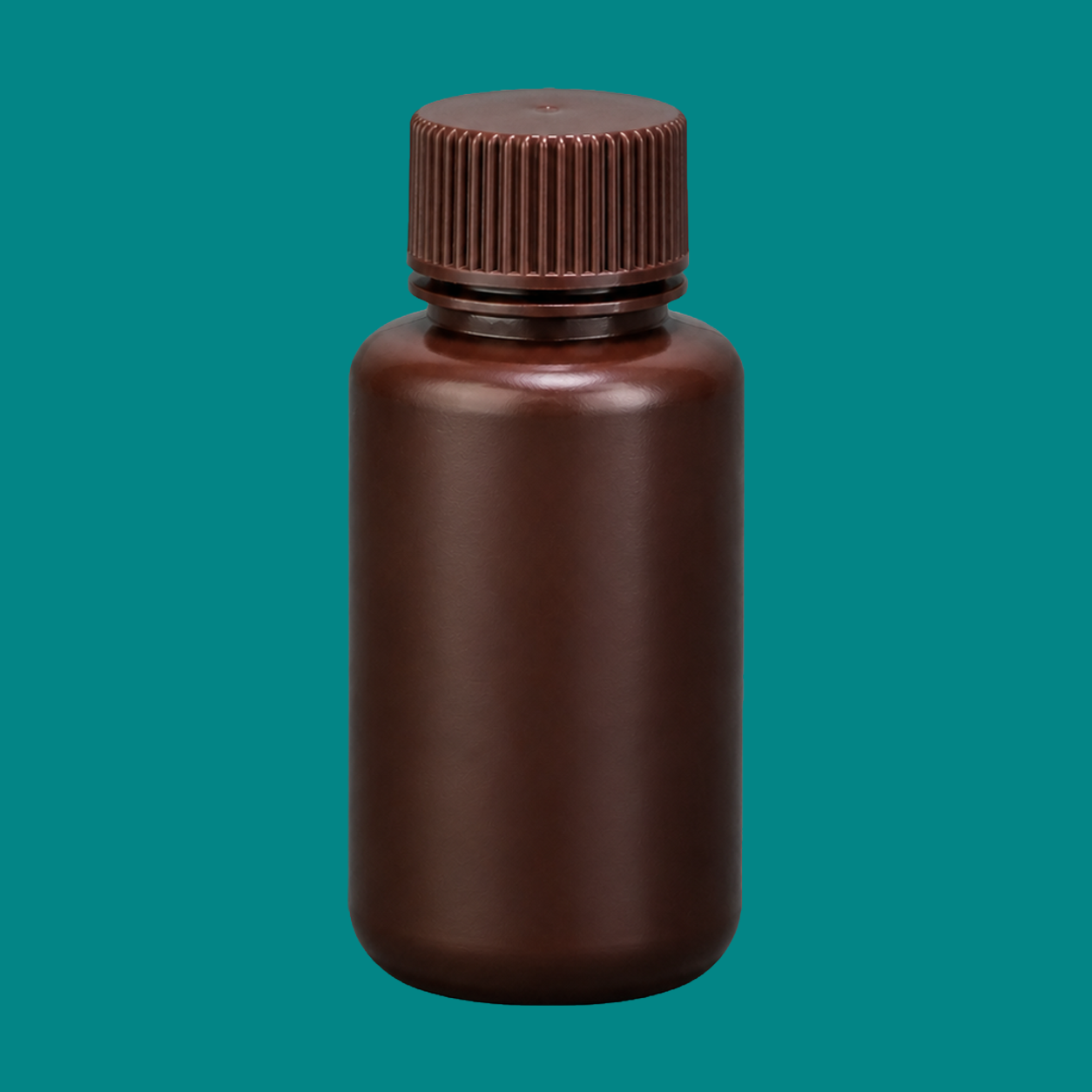

| 82083A50ml | 14 | 34 | 82 |

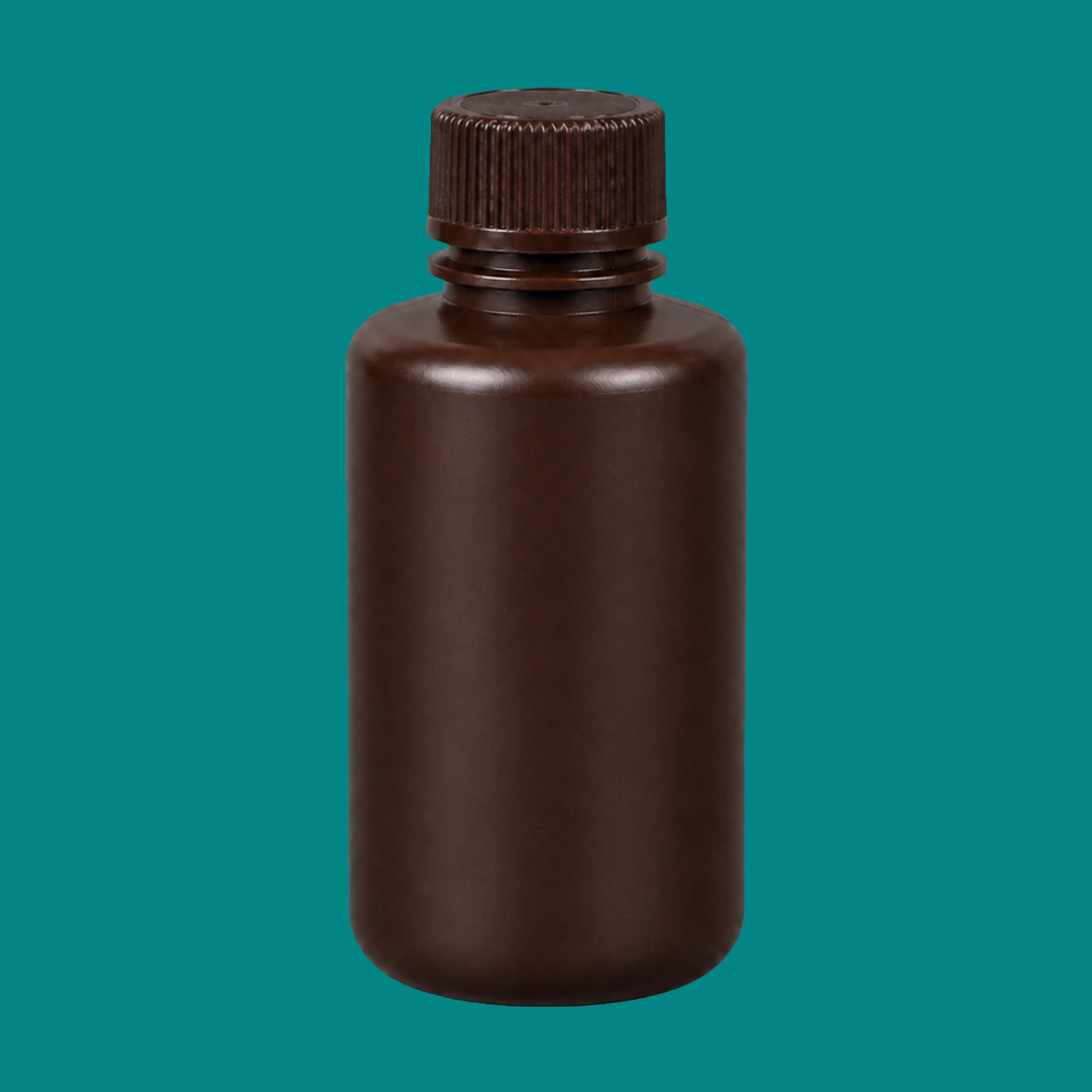

| 82061A60ml | 14 | 38 | 83 |

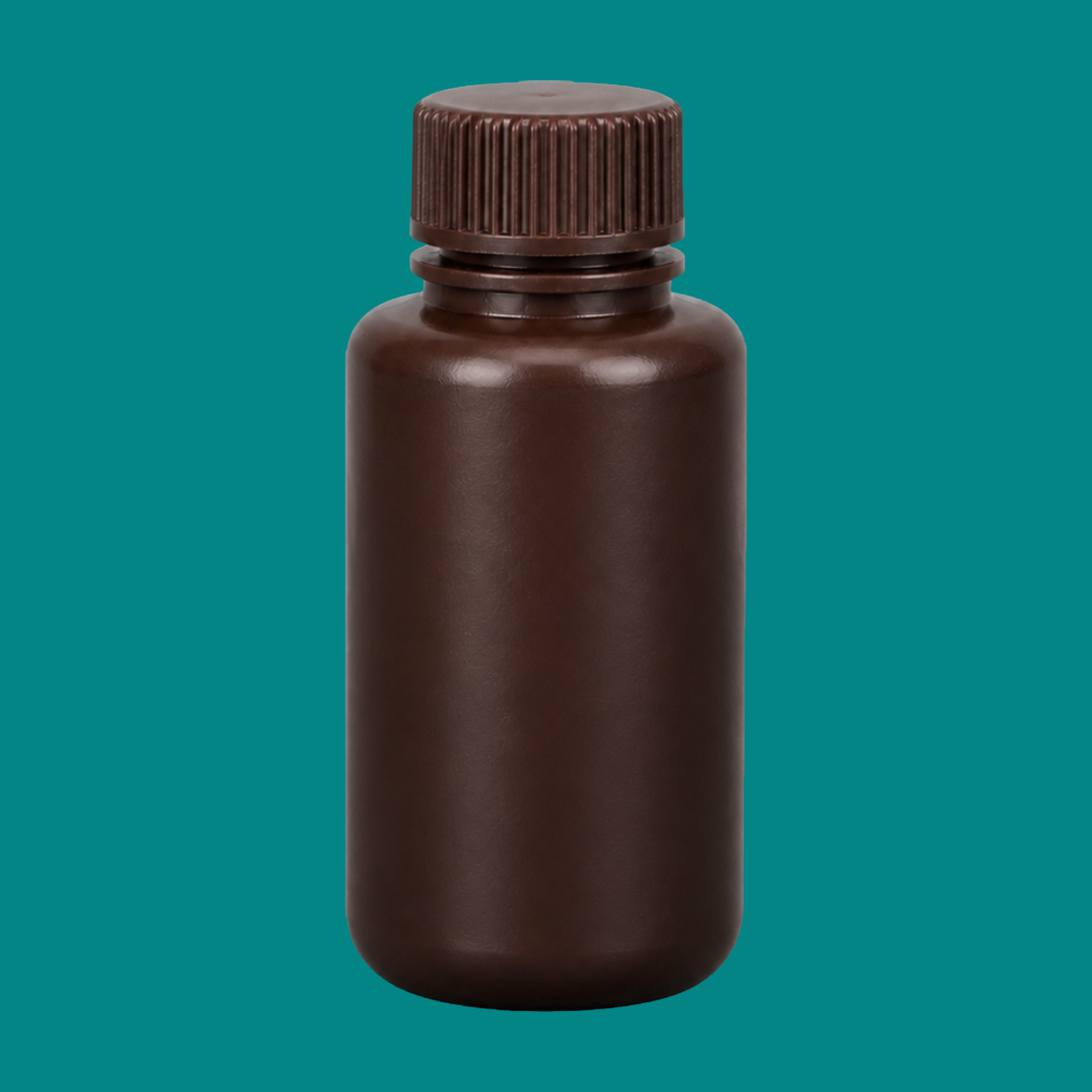

| 82084A100ml | 18 | 46.5 | 98.5 |

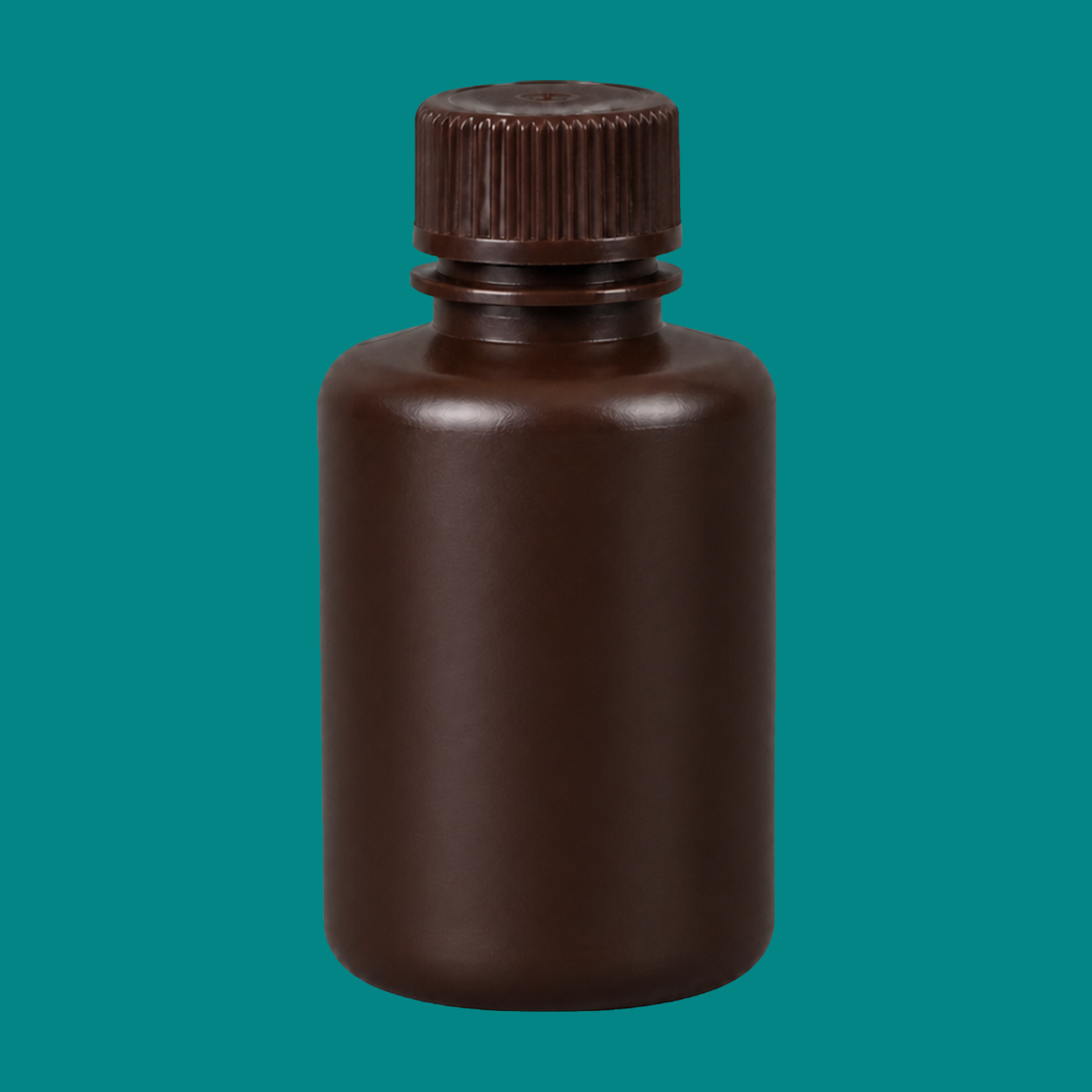

| 82062A125ml | 18 | 50 | 98.5 |

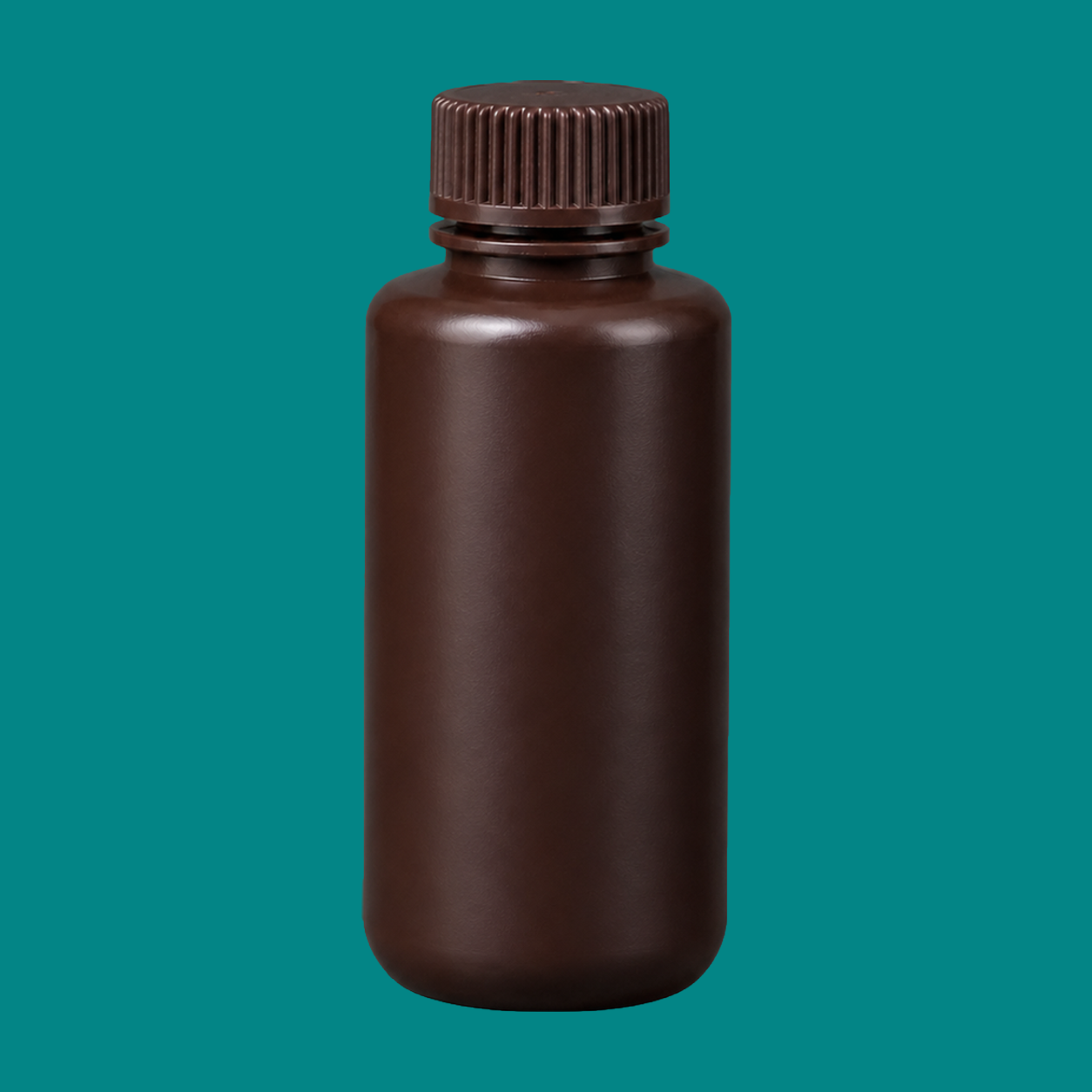

| 82085A150ml | 18 | 53 | 99 |

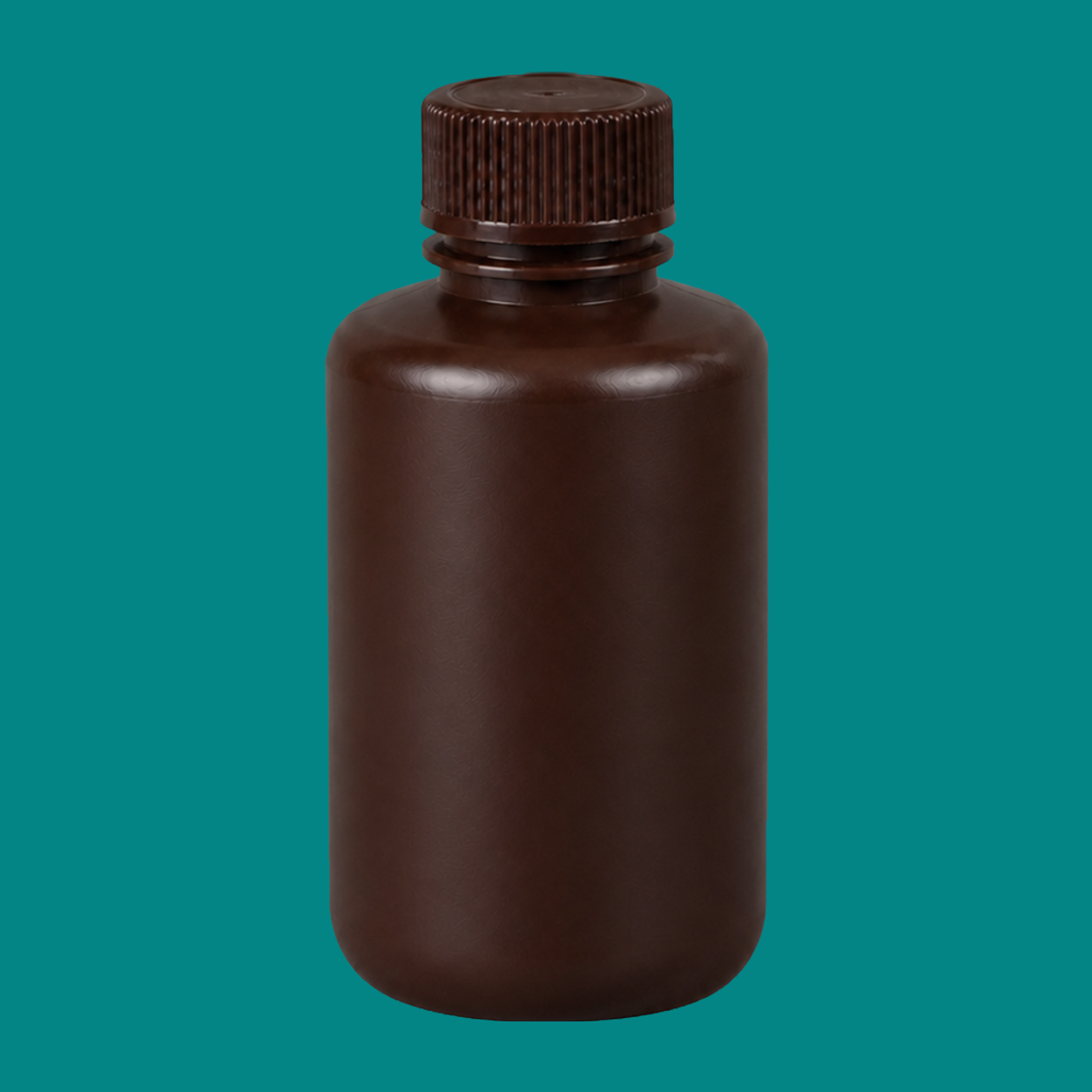

| 82063A250ml | 21 | 61.5 | 130 |

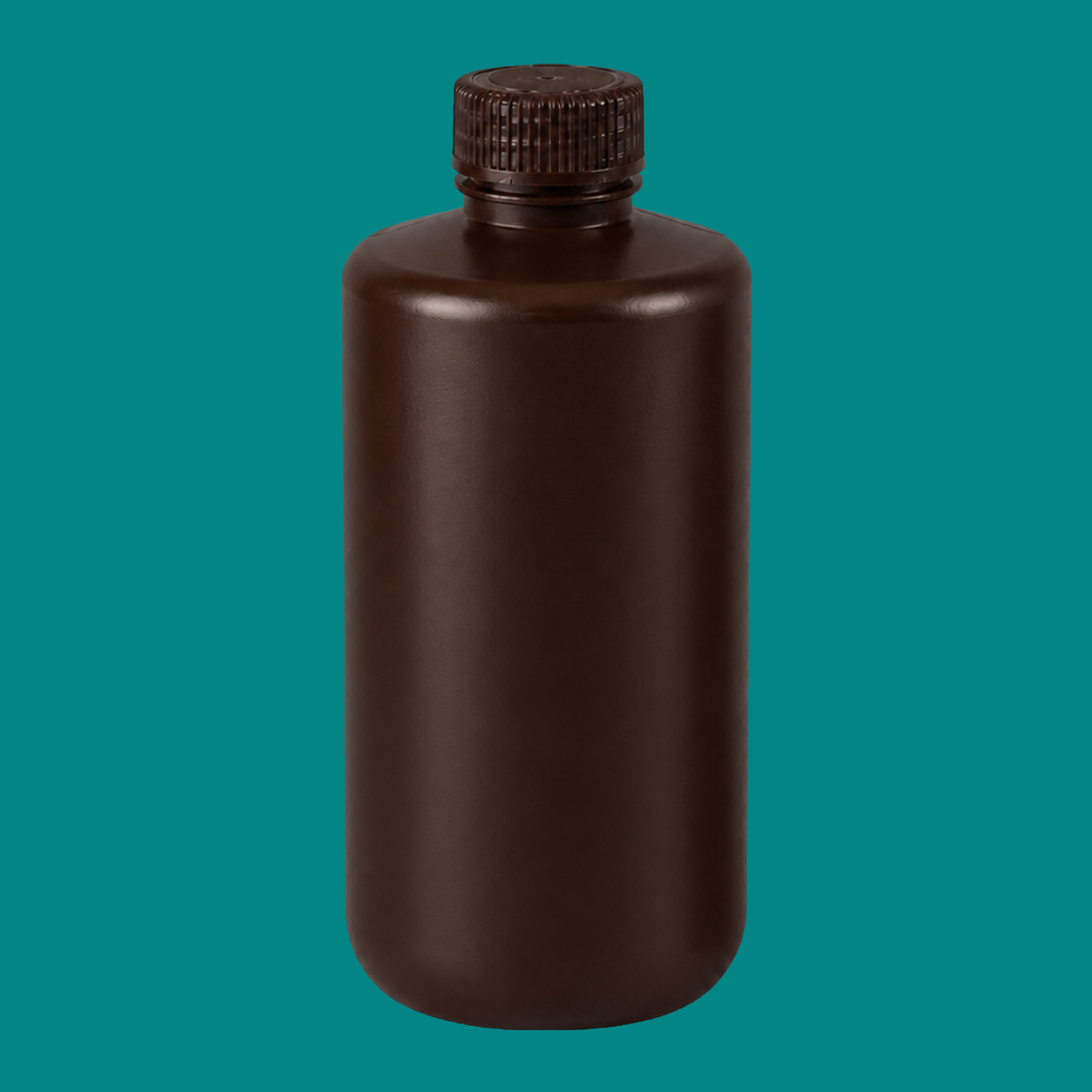

| 82064A500ml | 21 | 72.5 | 167.5 |

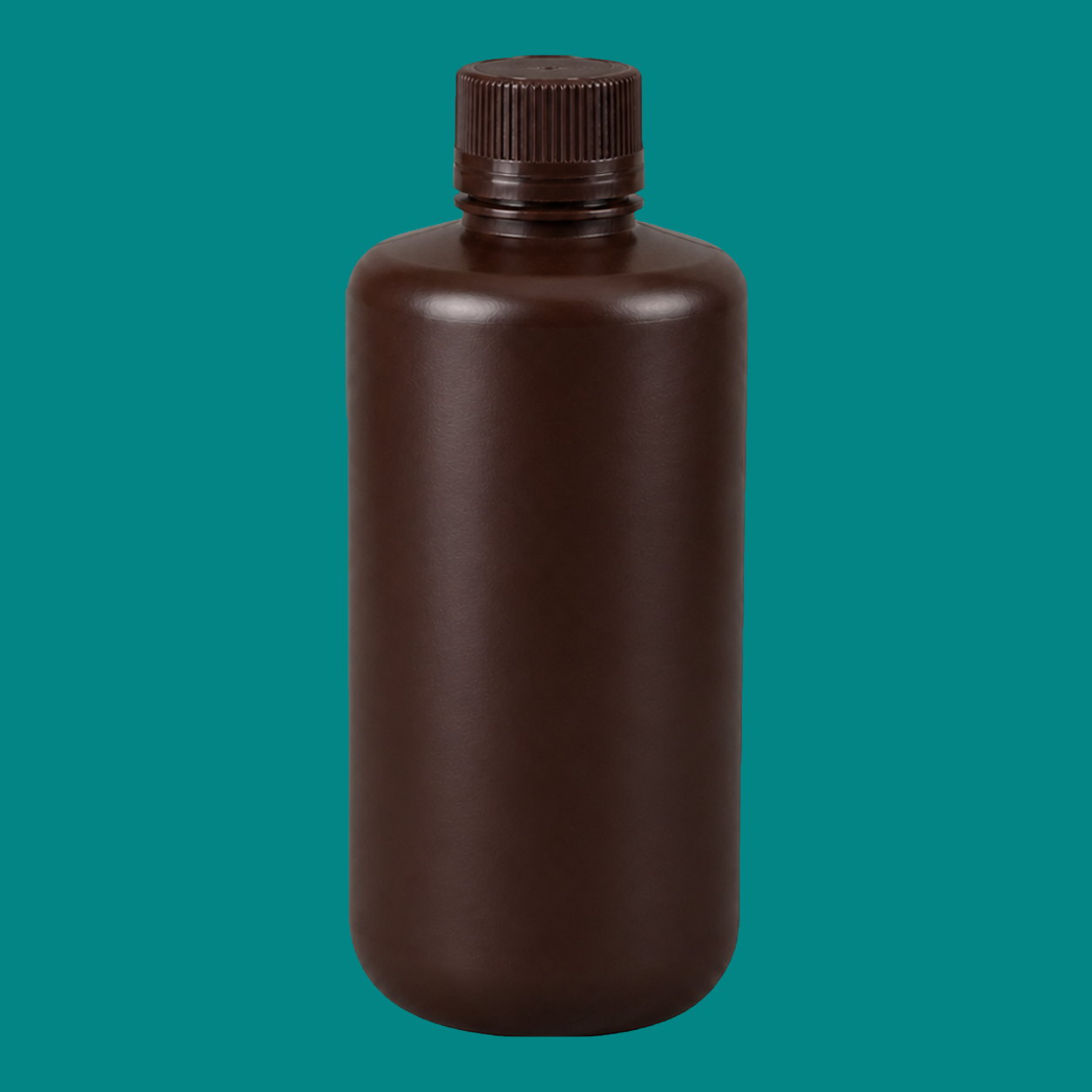

| 82065A1000ml | 28 | 93 | 212 |

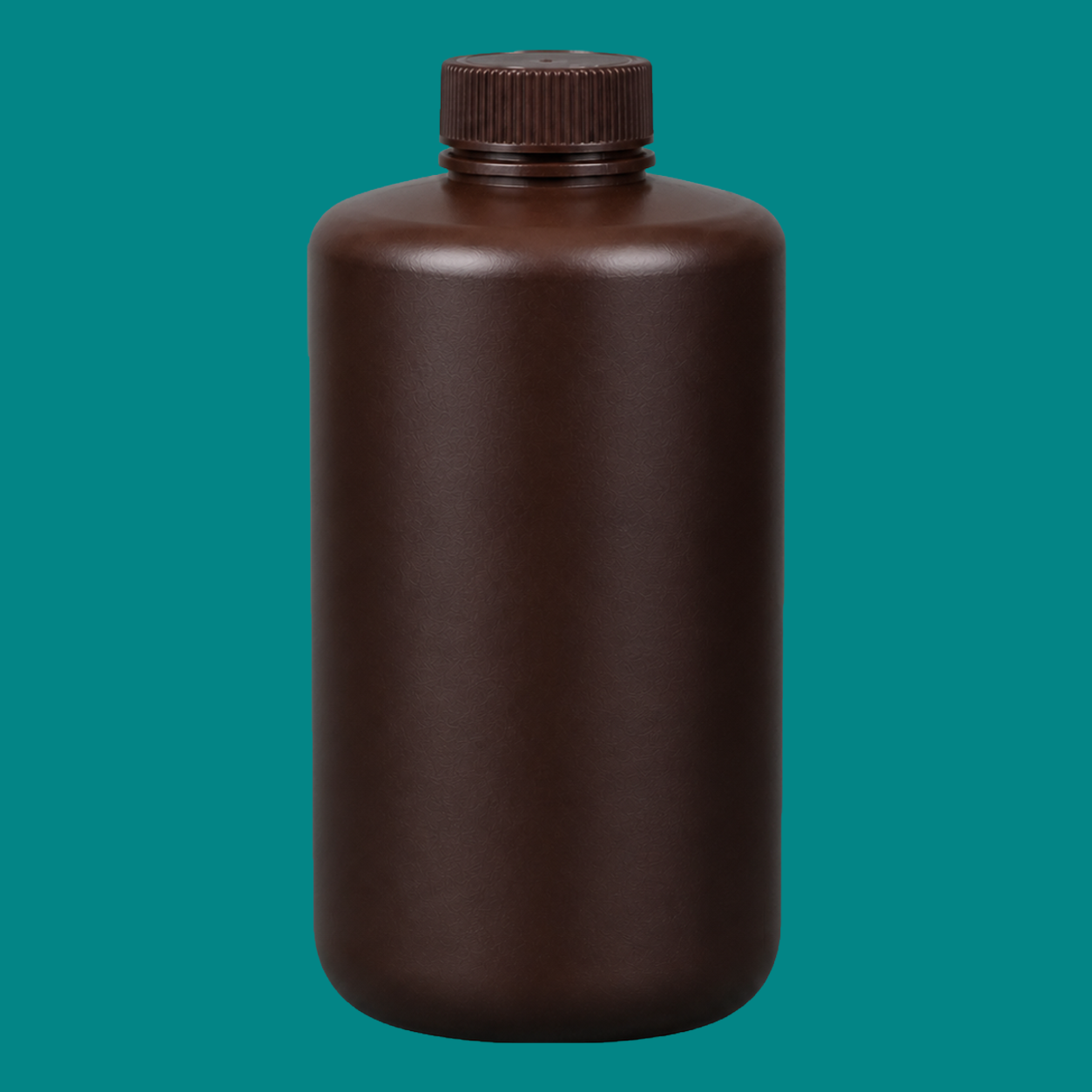

| 82086A2000ml | 28 | 121.5 | 248.5 |

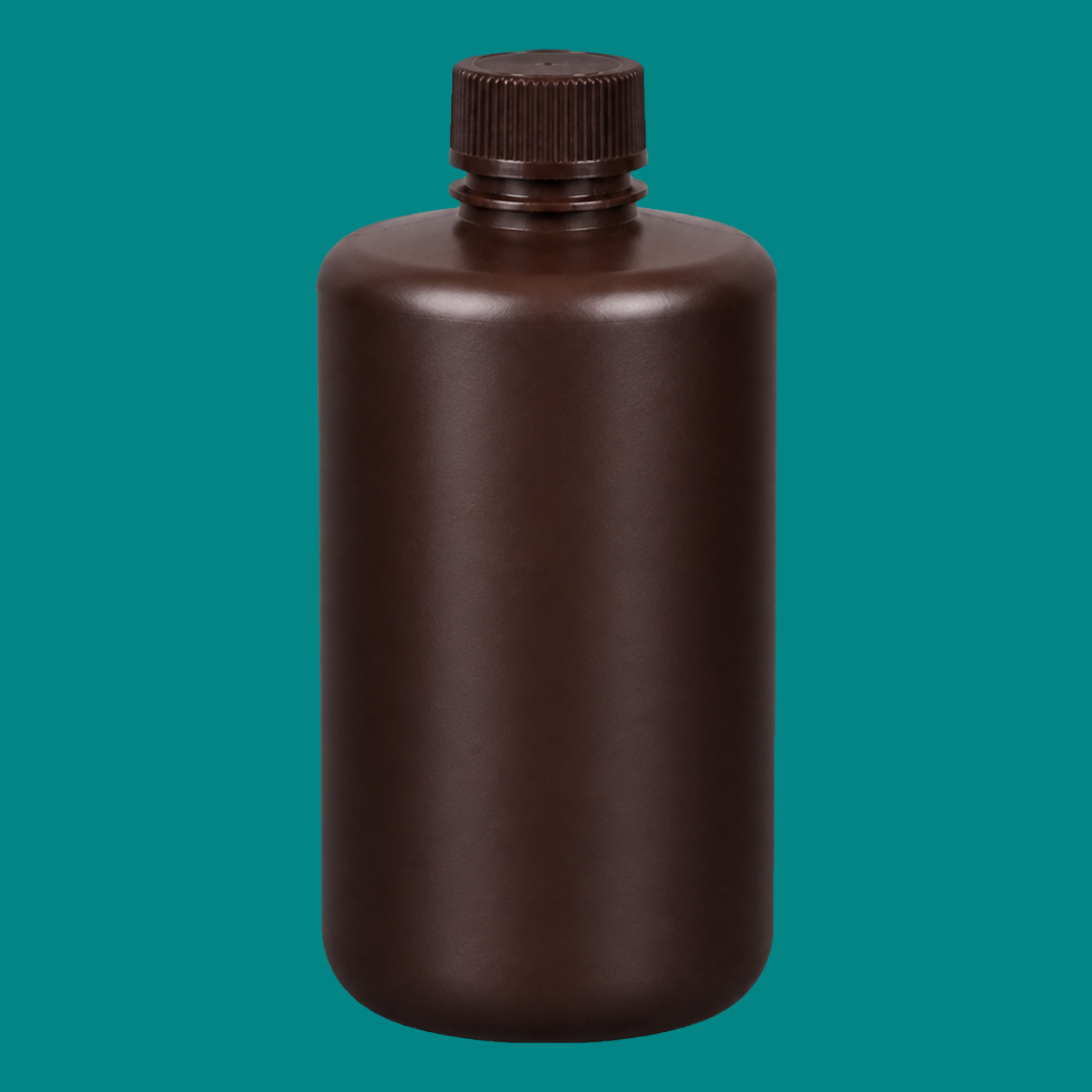

| 82087A2000ml | 39 | 118 | 251.5 |

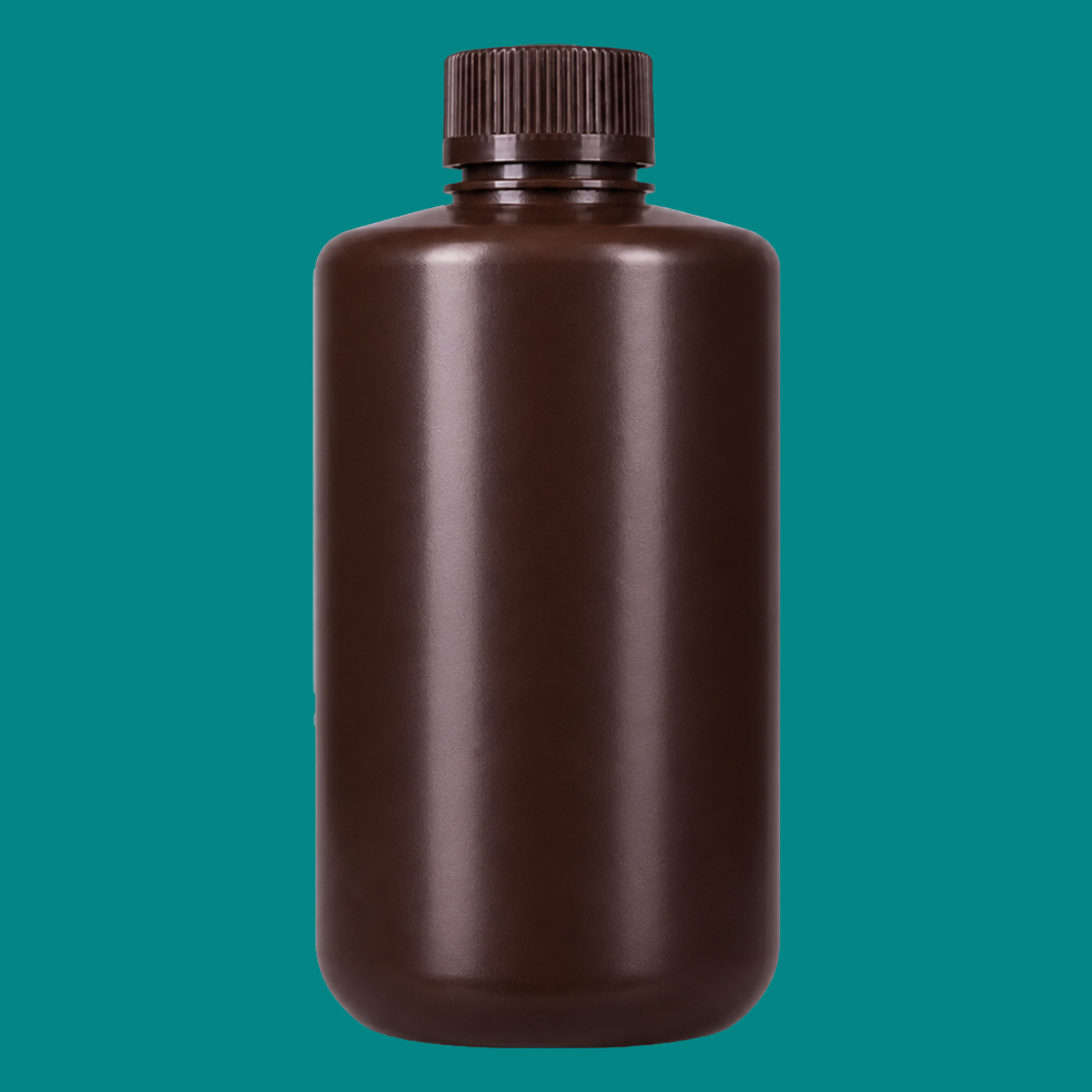

| 82088A3000ml | 39.3 | 137.5 | 295 |

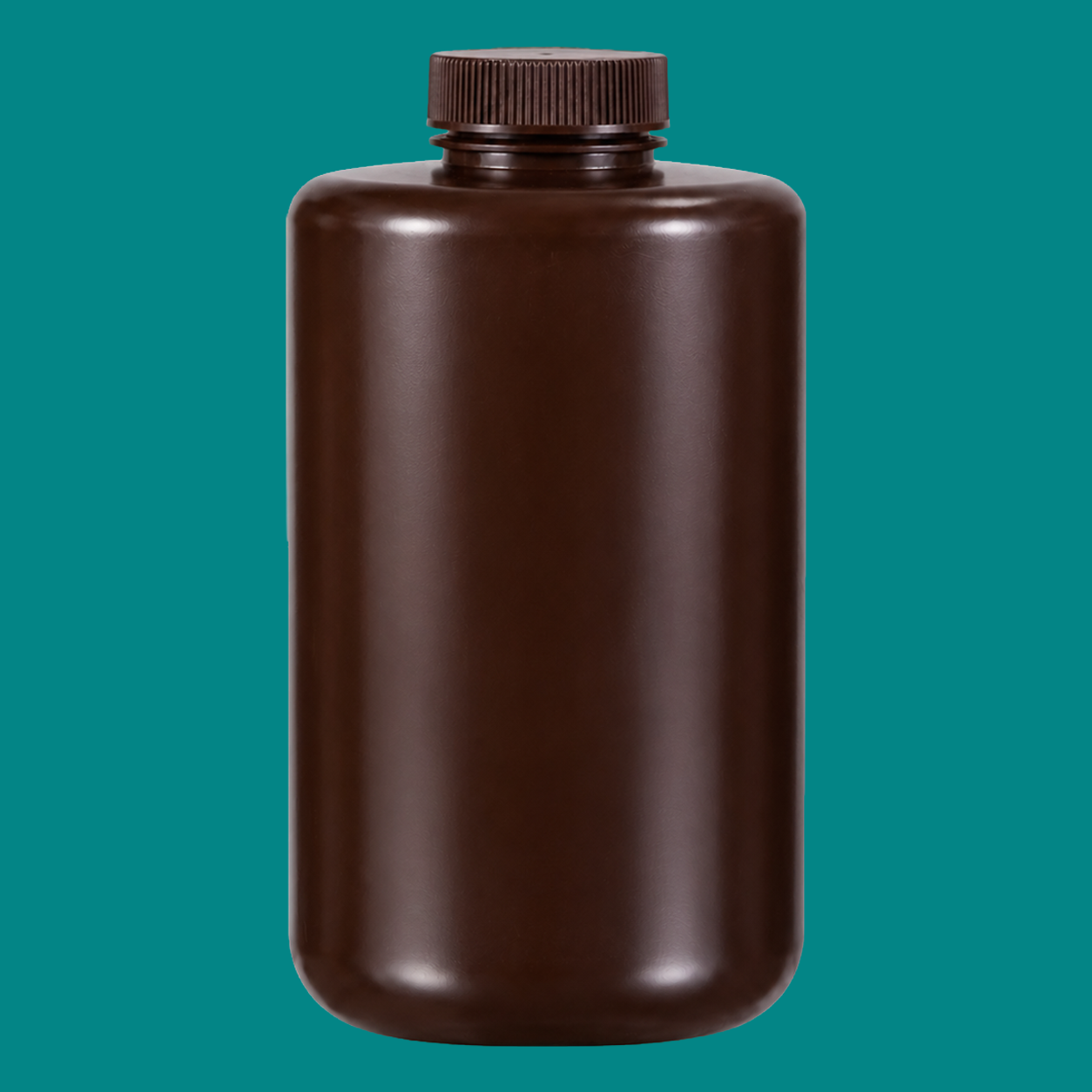

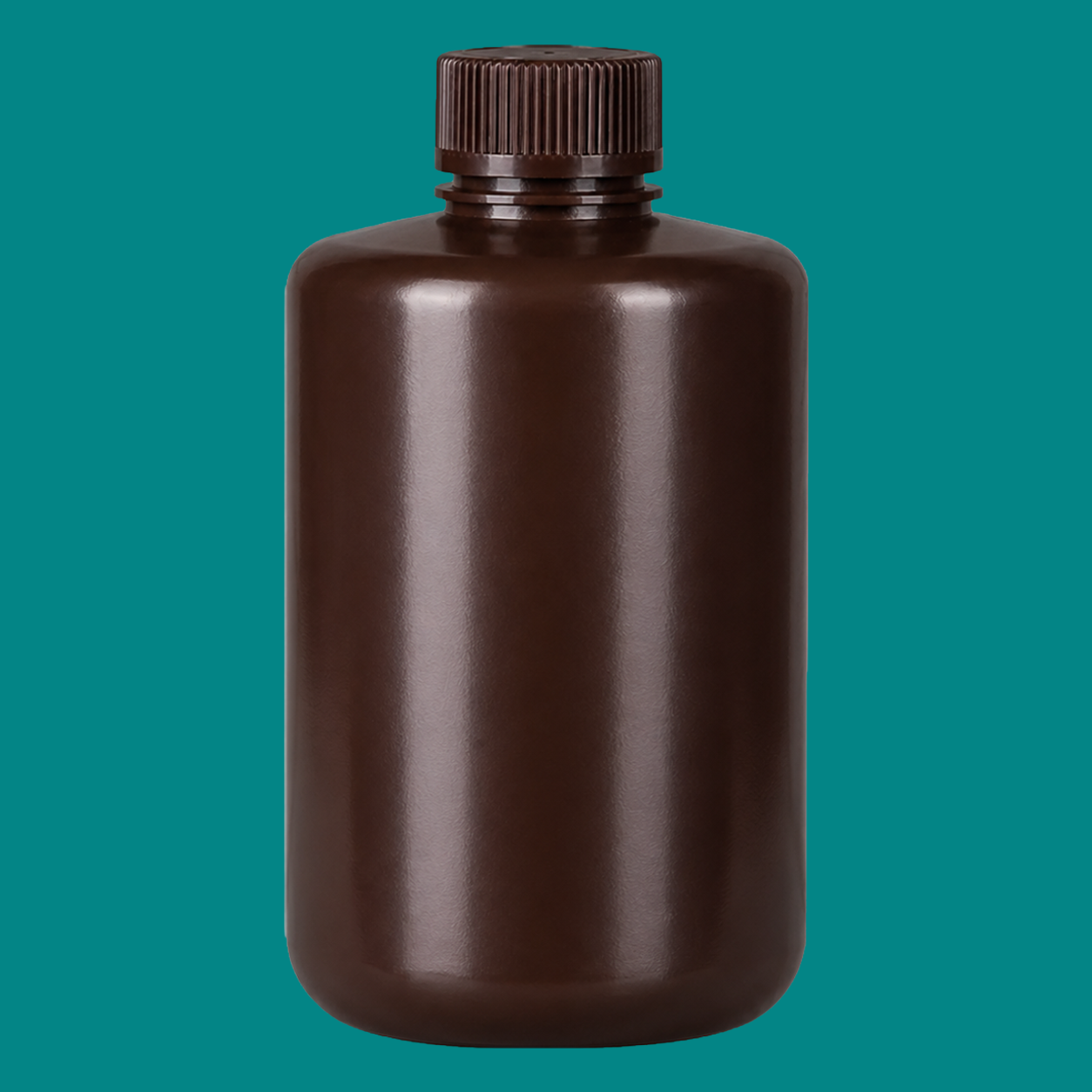

| 82089A4000ml | 39.3 | 157.5 | 293 |
| 82090A5000ml | 52.4 | 154 | 278.7 |
Services & Certification
Sterilization
Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.
Packaging Design
Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.
ISO 13485 Certification
Product description
Non-graduated amber HDPE narrow-mouth reagent bottles span 4ml to 5000ml for sample storage, controlled pouring and larger-volume liquid handling. Capacity-specific necks keep the format practical across the range, and screw closures provide a consistent closure style. Selected large-capacity variants use thickened walls. A separate thickened medium-mouth option is also available; other reinforced sizes retain the narrow-mouth design, allowing the opening to be matched to the intended filling and dispensing workflow.
