Narrow-Mouth PP Bottles with Closure
Capacity range
4ml–5000ml
- Material
- PP
- Graduation
- None
OEM / ODM Customization
Color, capacity, logo, packaging and product specifications.
Samples Available
Factory Pricing
Available Product Variants
Select a capacity to view the full-size SKU image.
Specifications
PP narrow-mouth reagent bottles for controlled dispensing and sample storage.
| SKU / Capacity | Mouth(mm) | Diameter(mm) | Height(mm) |
|---|---|---|---|

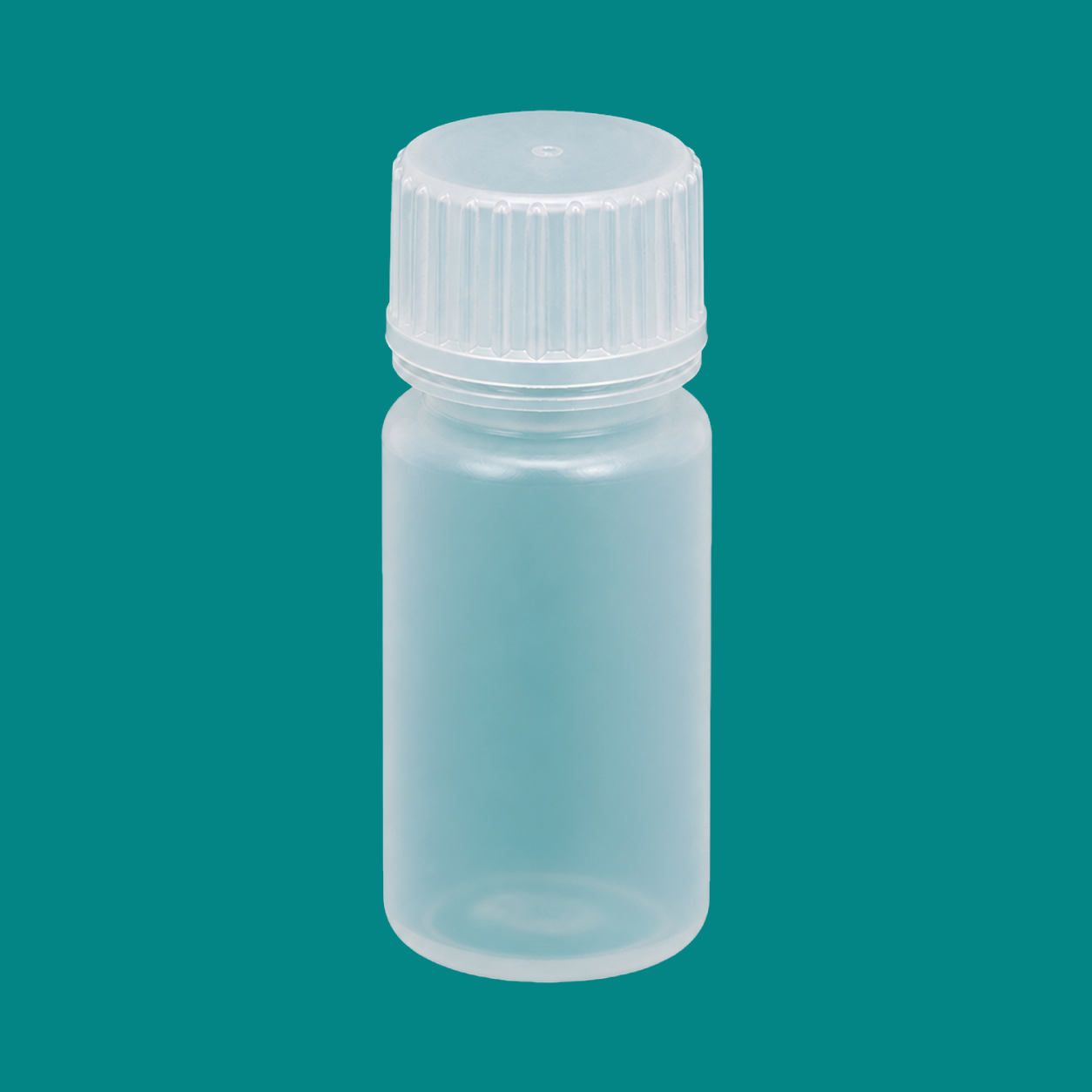

| 82116T4ml | 8 | 16 | 41 |

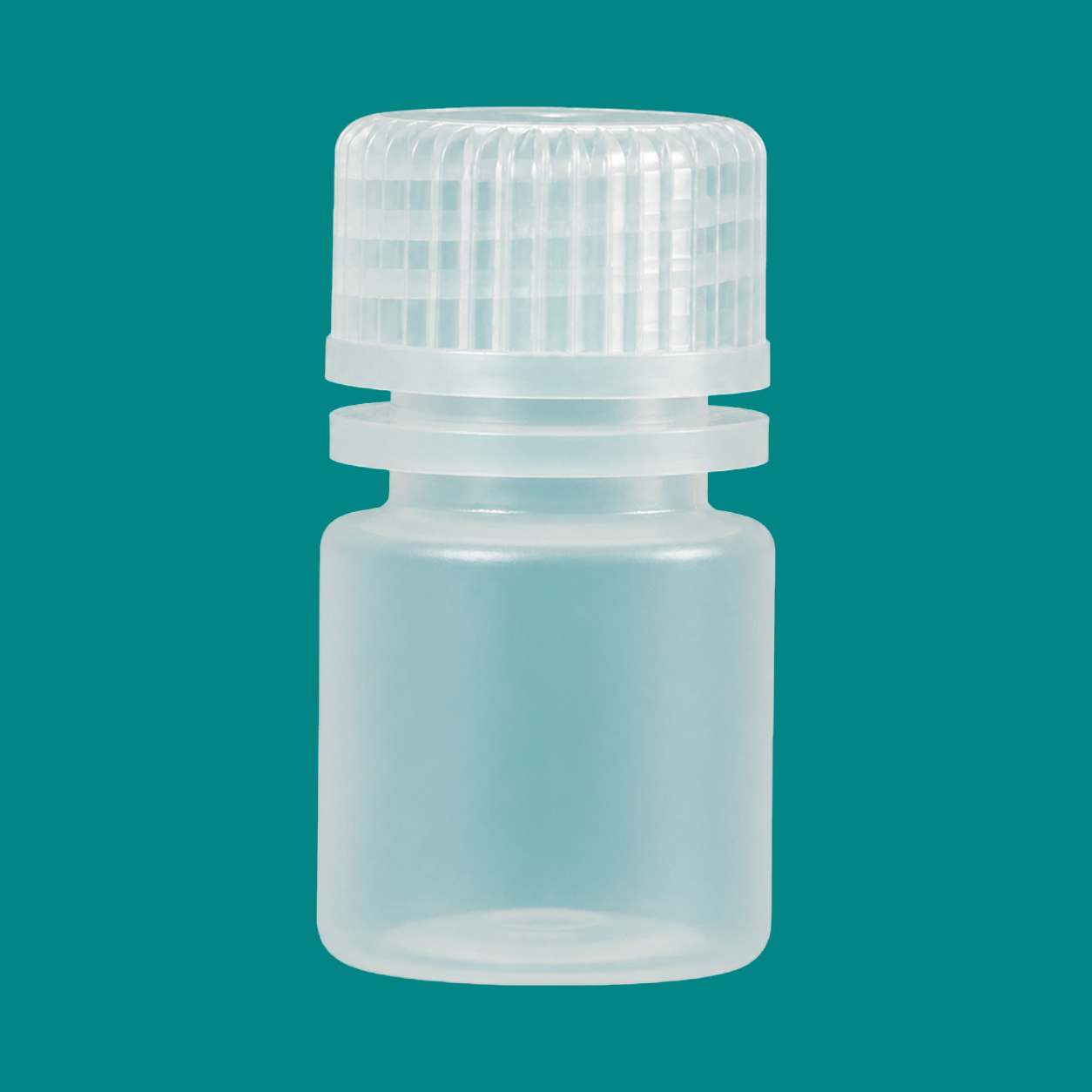

| 82058T8ml | 14 | 25 | 44.8 |

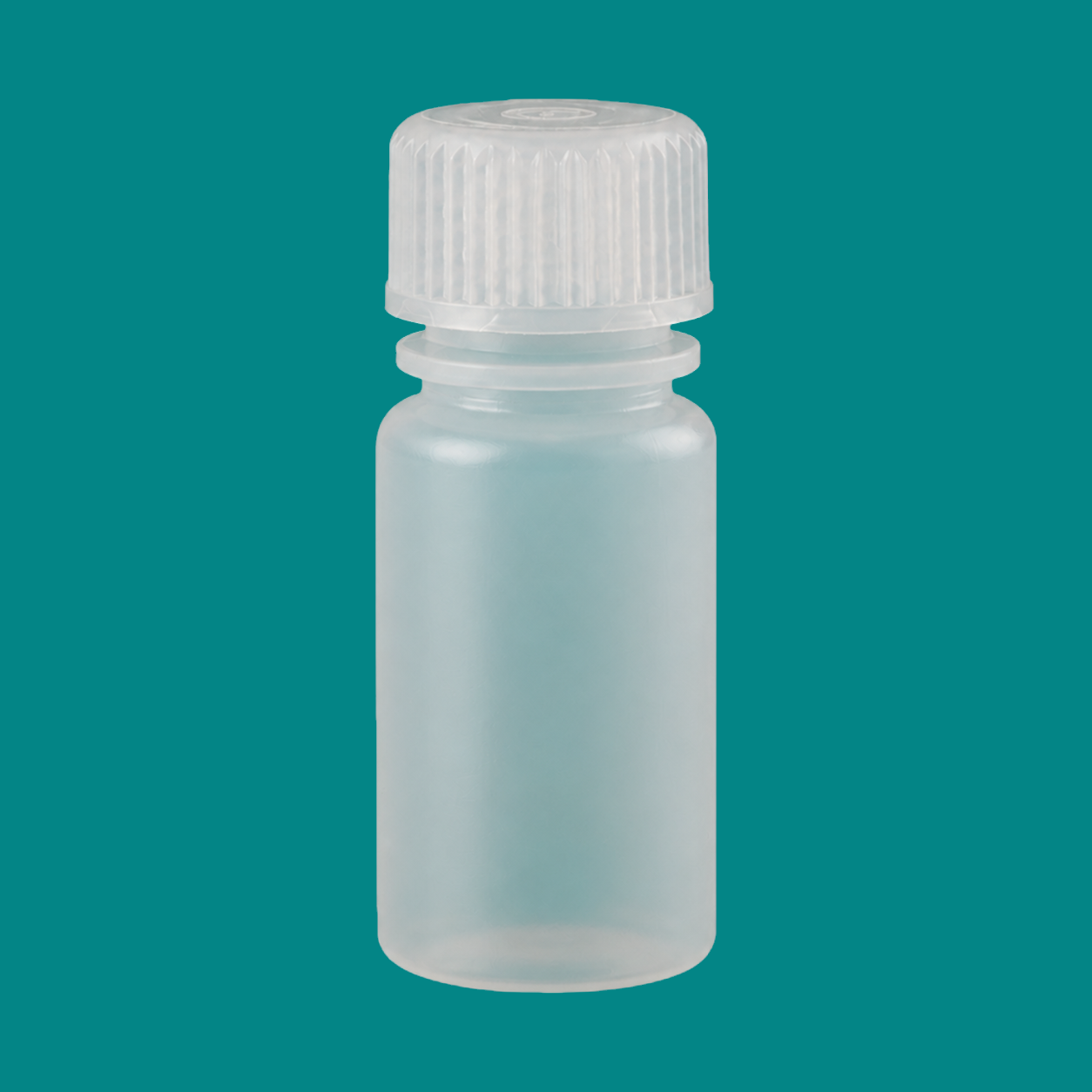

| 82059T15ml | 14 | 25 | 57 |

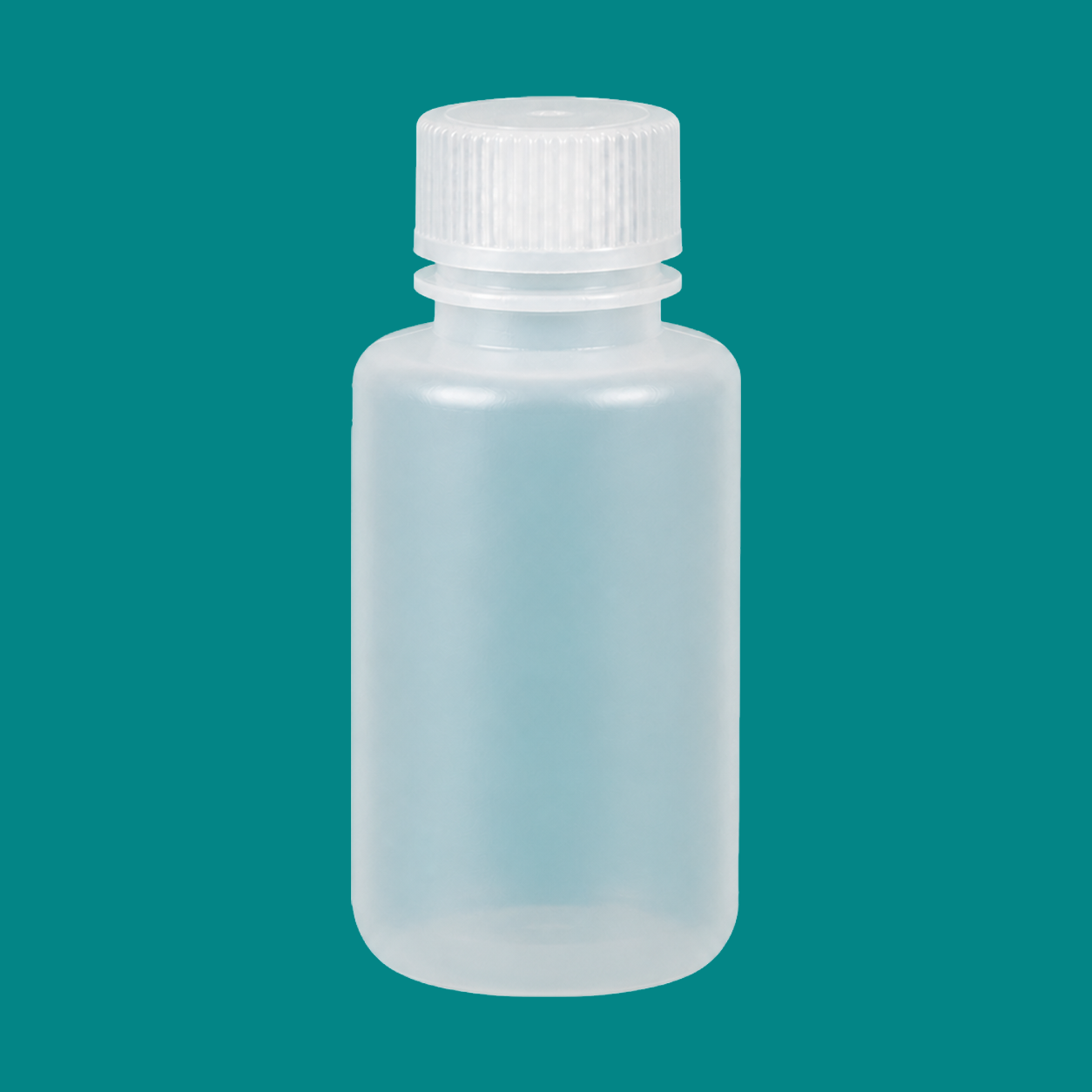

| 82060T30ml | 14 | 34 | 62 |

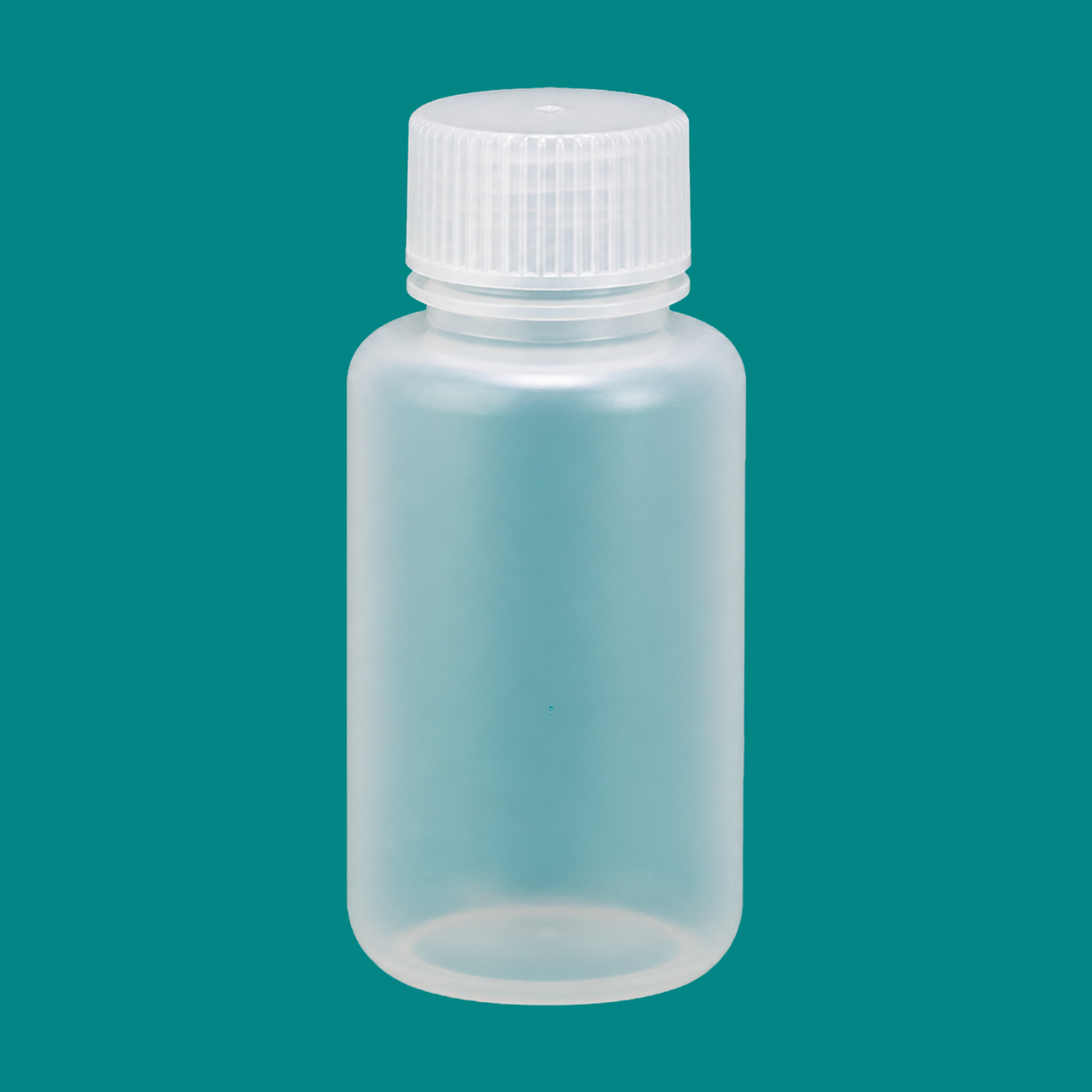

| 82083T50ml | 14 | 34 | 82 |

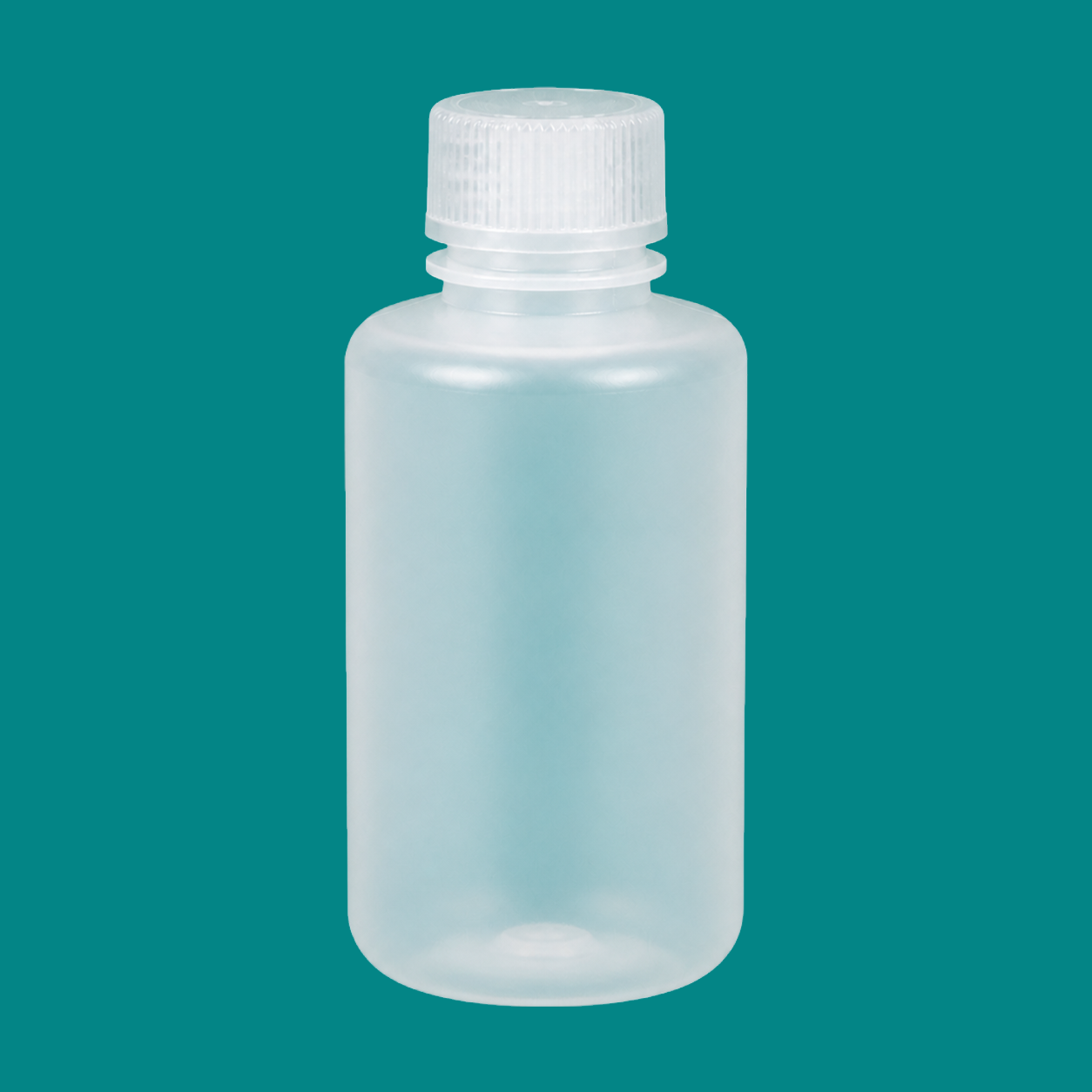

| 82061T60ml | 14 | 38 | 83 |

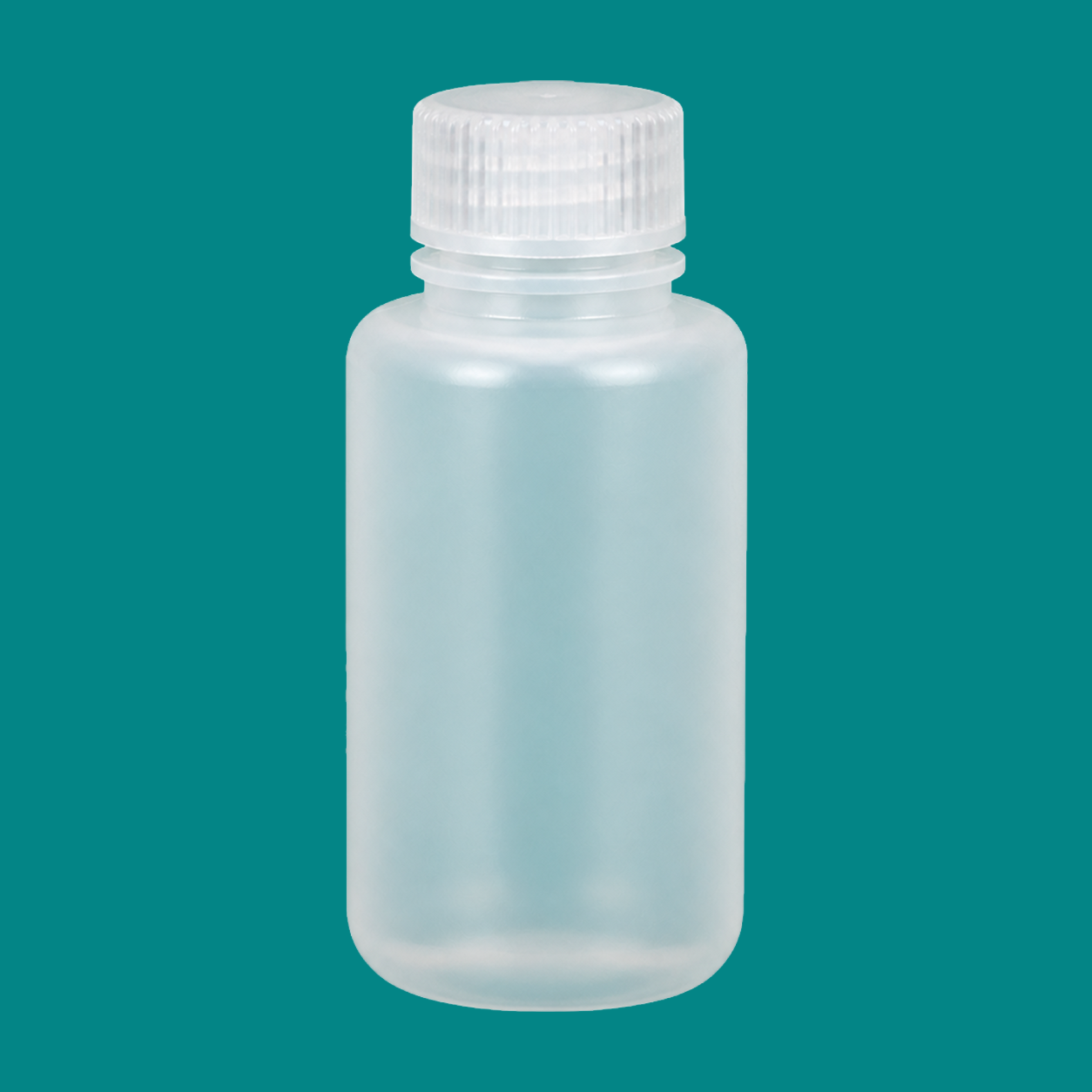

| 82084T100ml | 18 | 46.5 | 98.5 |

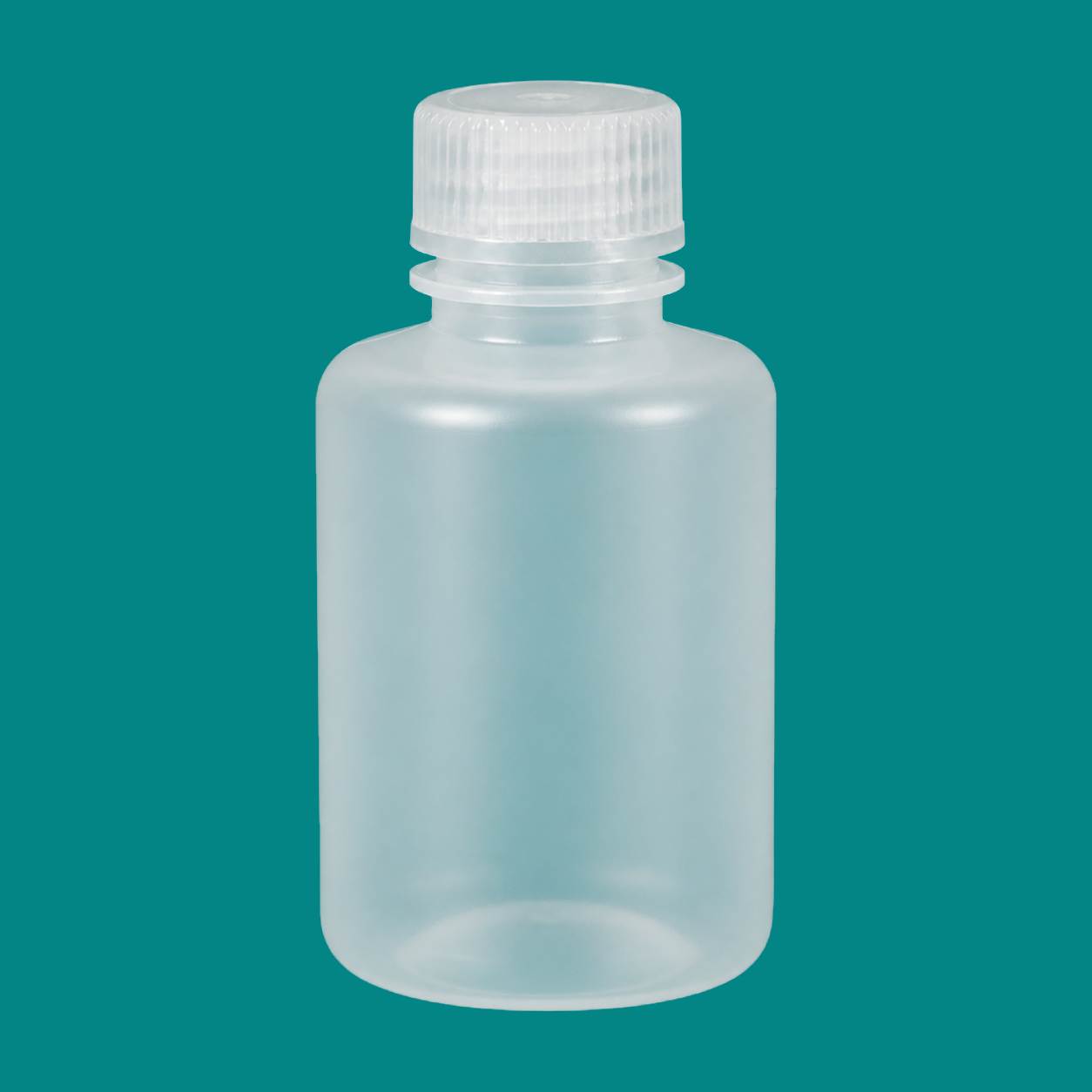

| 82062T125ml | 18 | 50 | 98.5 |

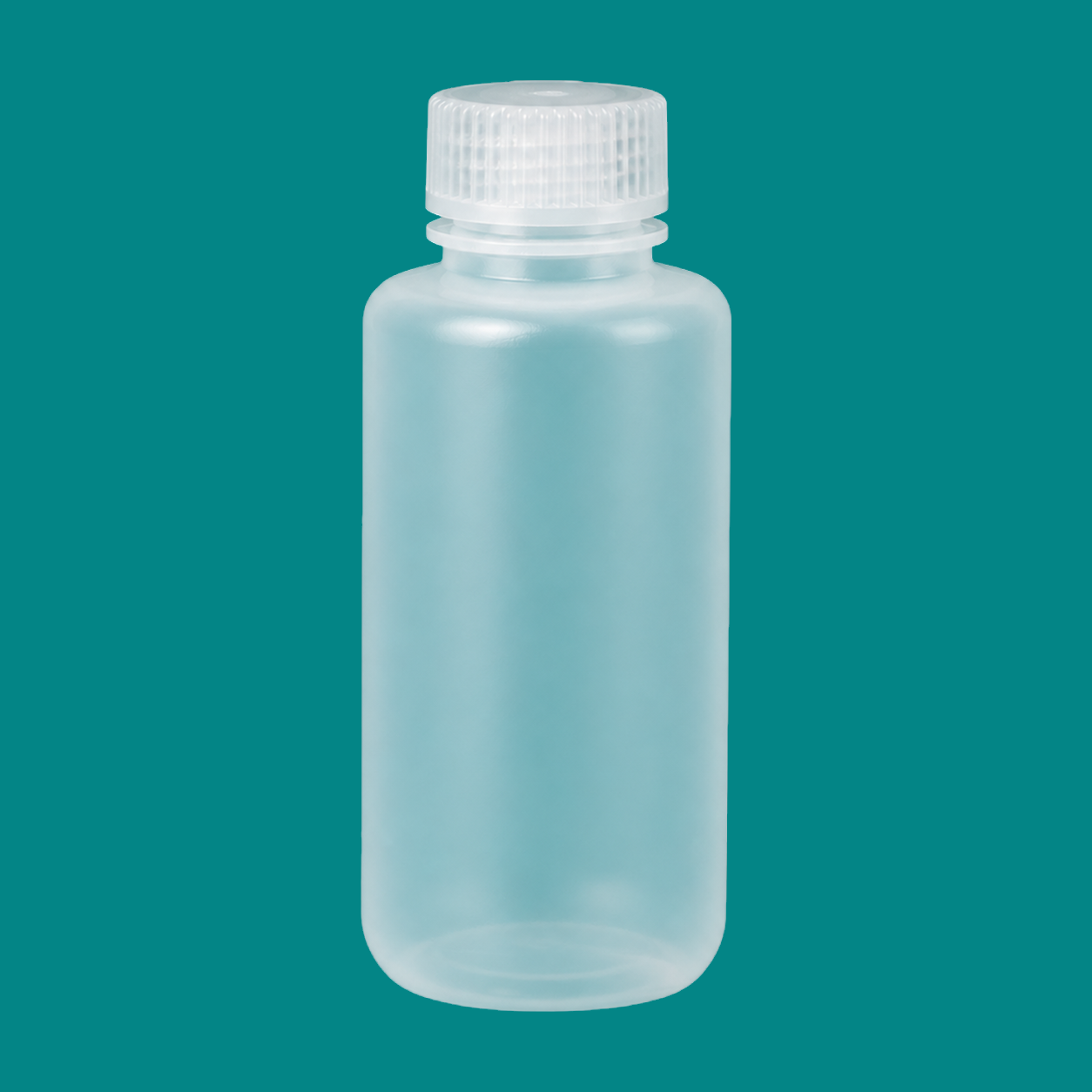

| 82085T150ml | 18 | 53 | 99 |

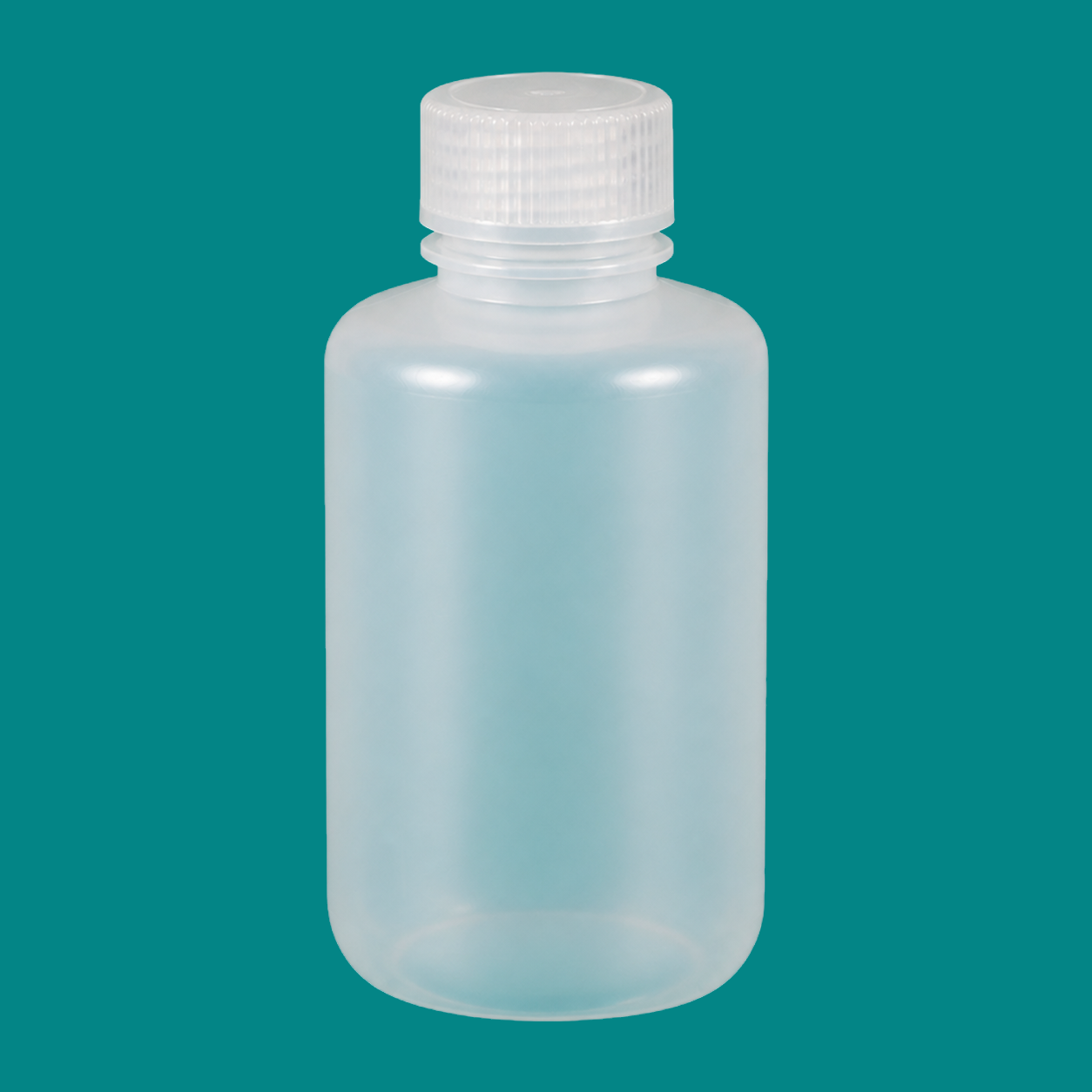

| 82063T250ml | 21 | 61.5 | 130 |

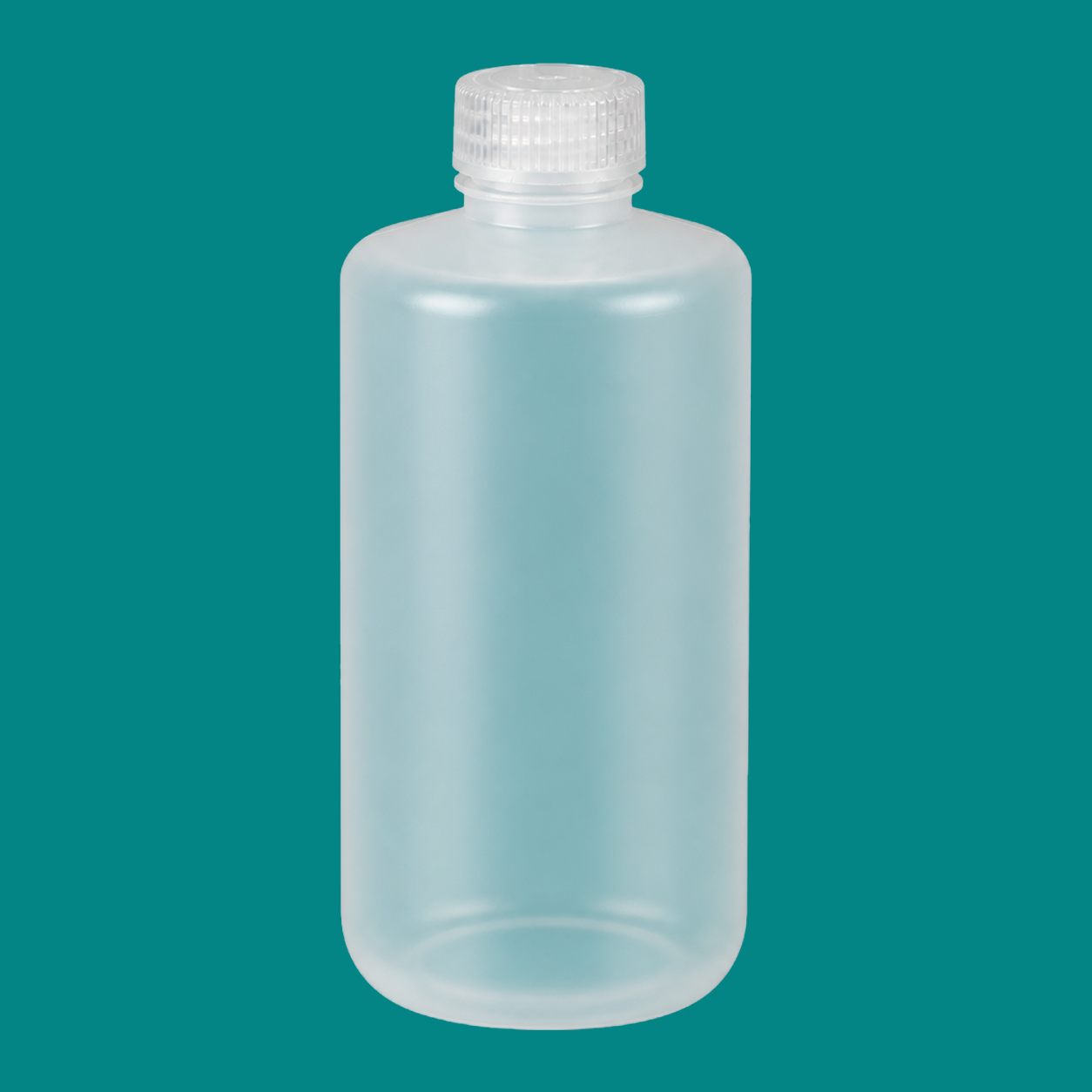

| 82064T500ml | 21 | 72.5 | 167.5 |

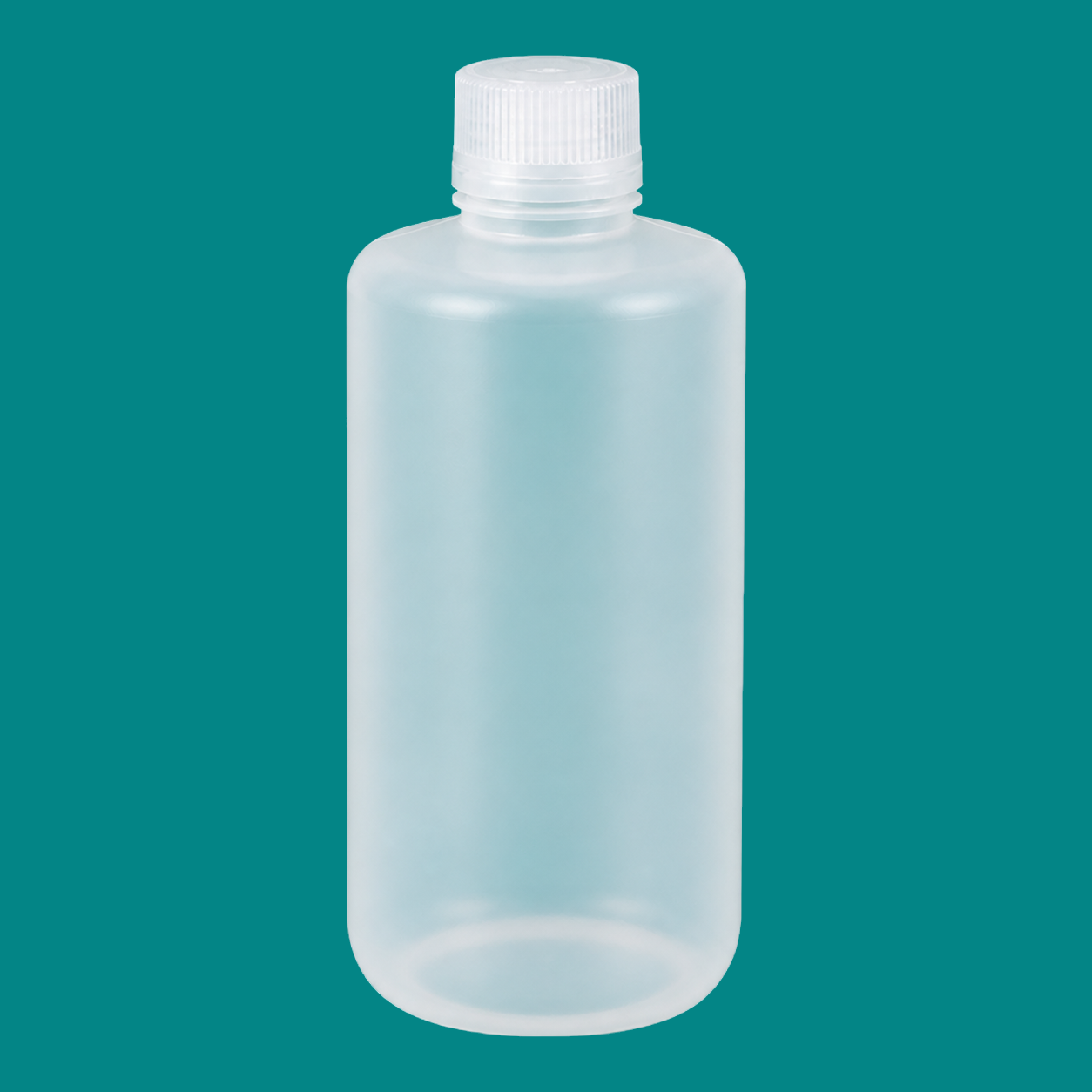

| 82065T1000ml | 28 | 93 | 212 |

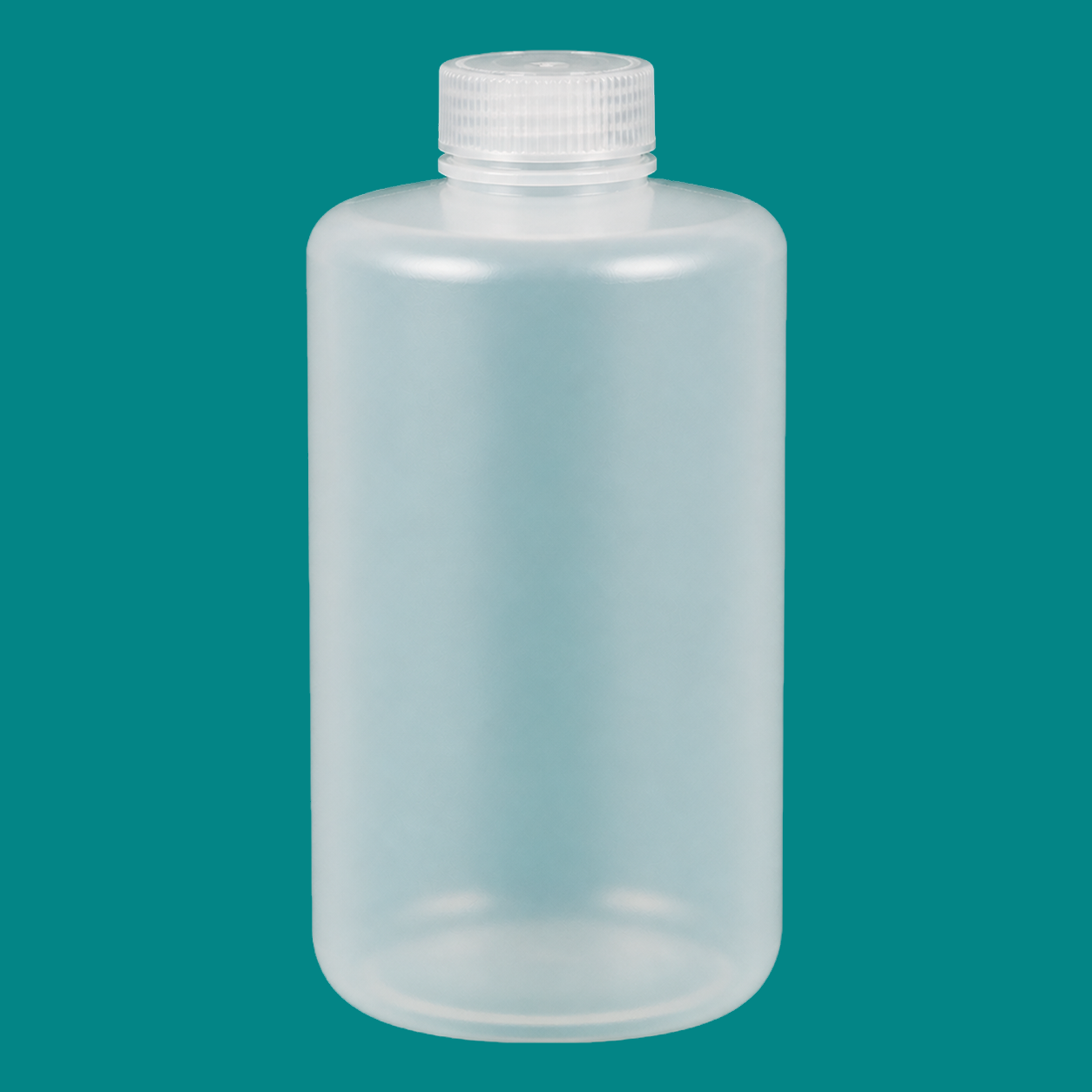

| 82086T2000ml | 28 | 121.5 | 248.5 |

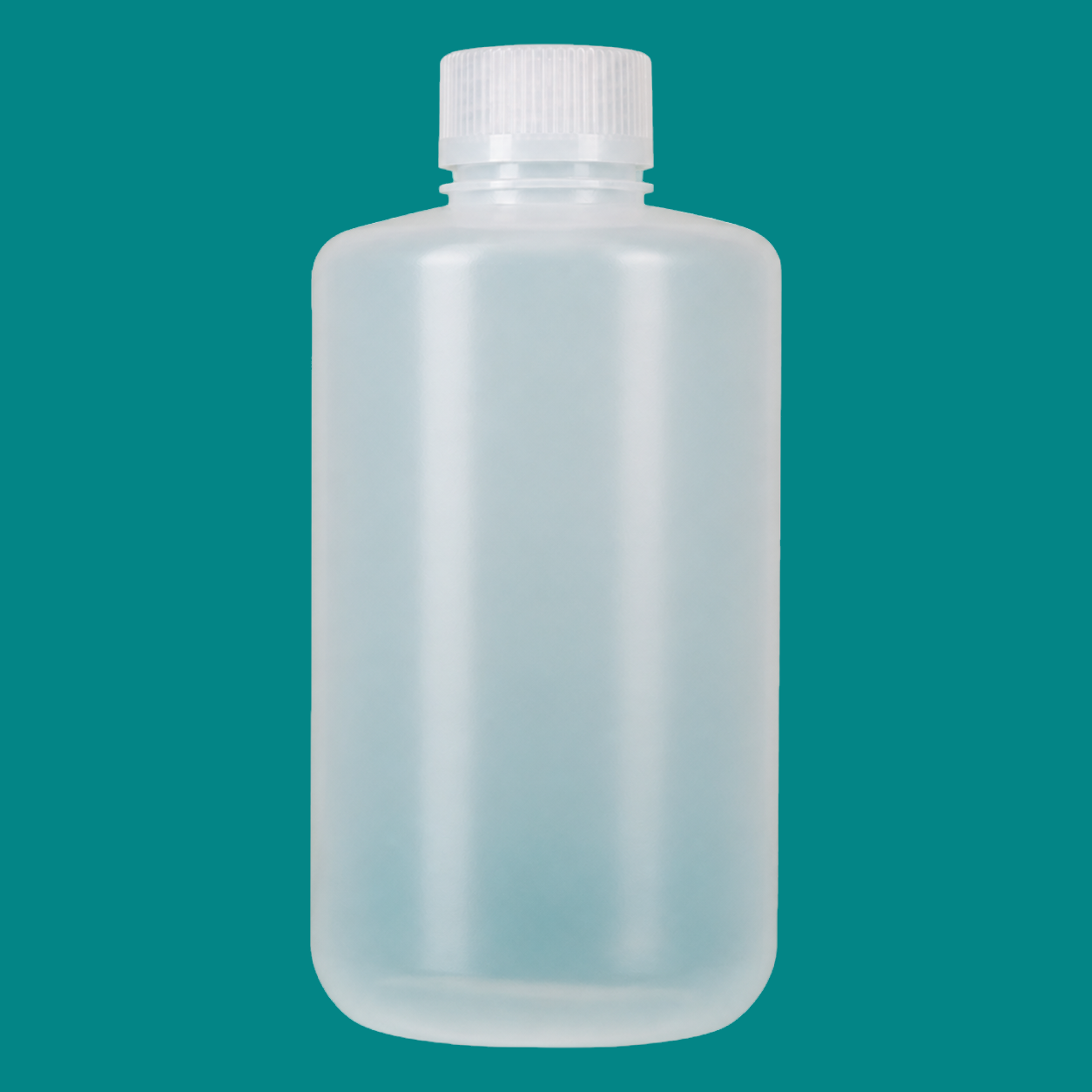

| 82088T3000ml | 39.3 | 137.5 | 295 |

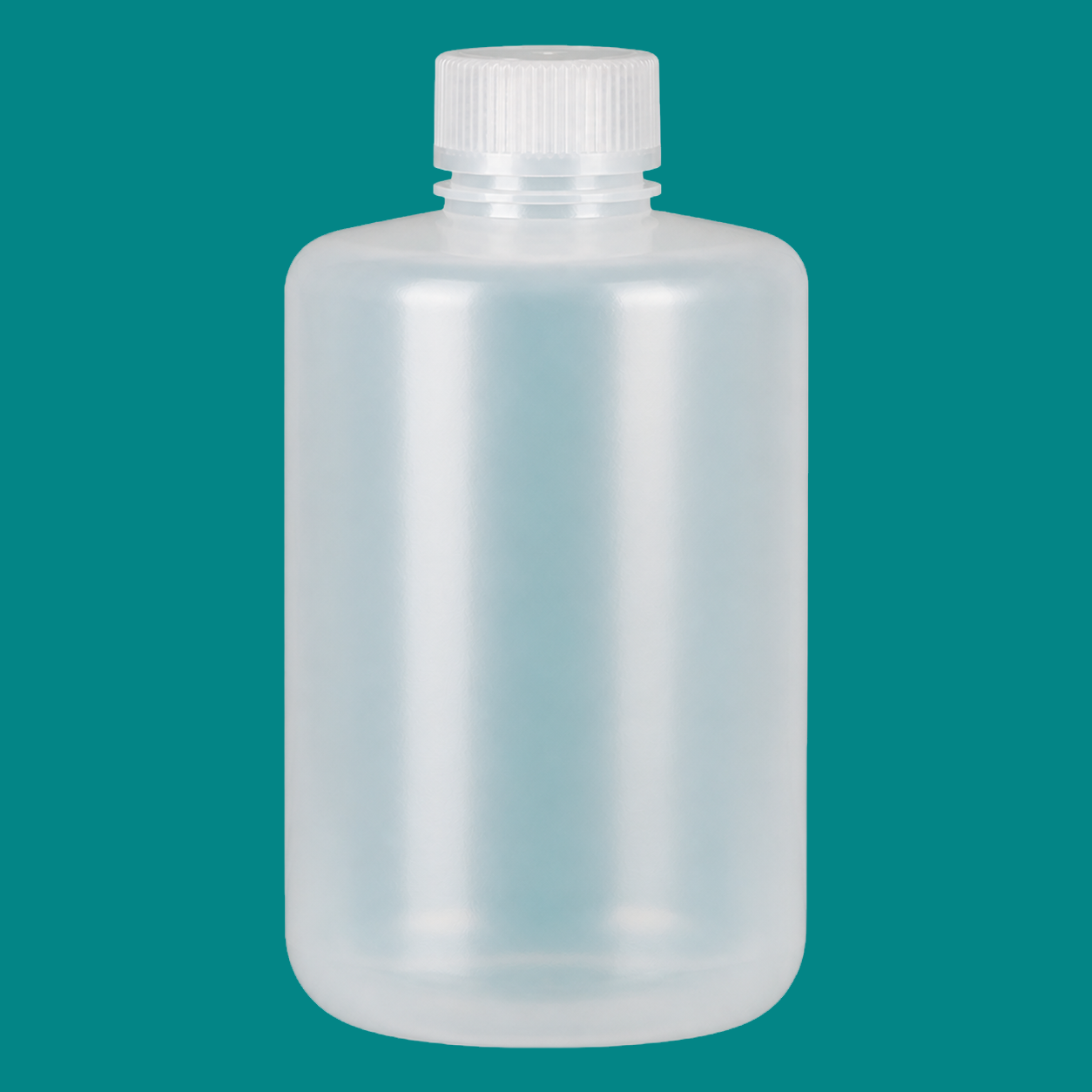

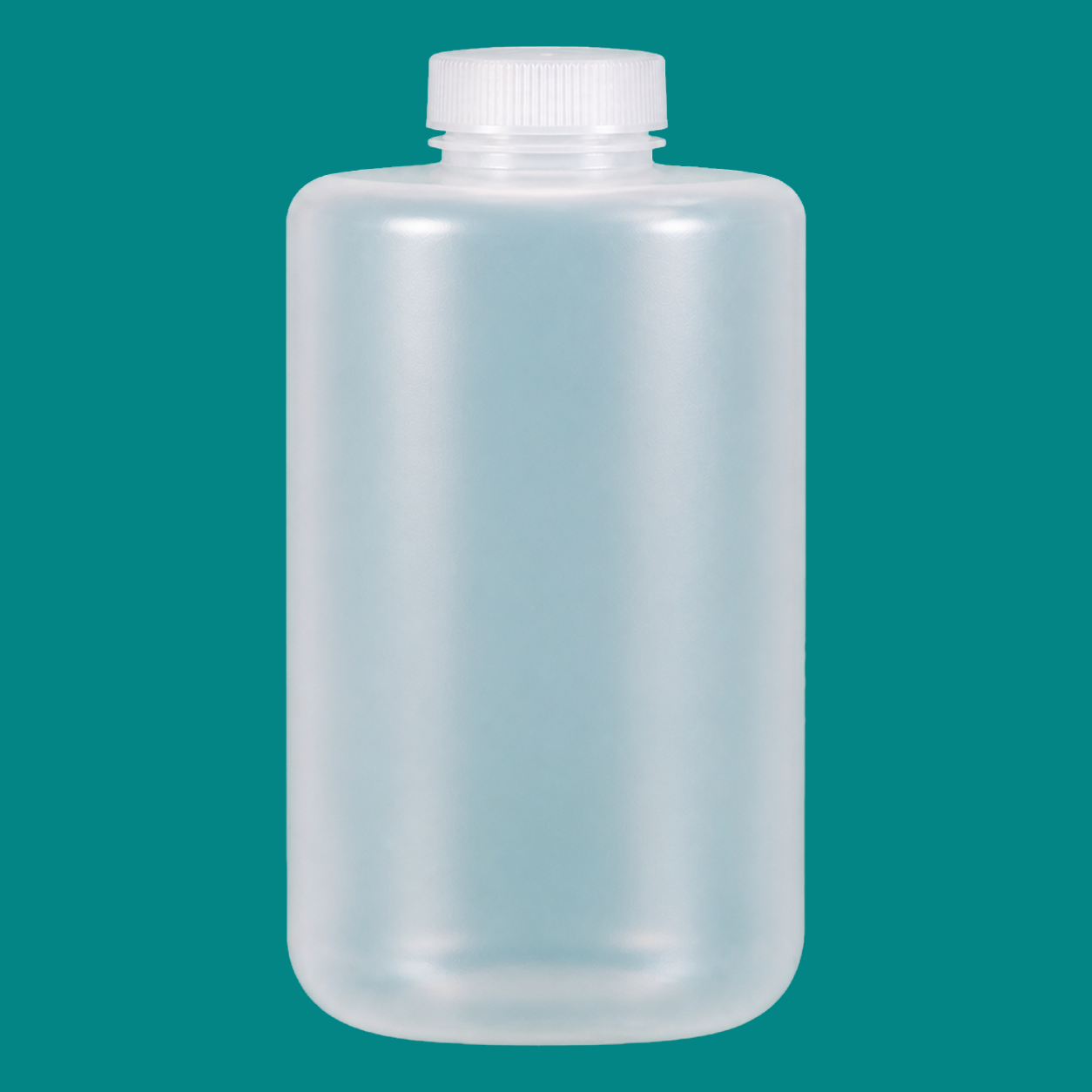

| 82089T4000ml | 39.3 | 157.5 | 293 |
| 82090T5000ml | 52.4 | 154 | 278.7 |
Services & Certification
Sterilization
Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.
Packaging Design
Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.
ISO 13485 Certification
Product description
PP narrow-mouth reagent bottles with screw closures span 4ml to 5000ml in a non-graduated series. Capacity-specific necks balance access and controlled pouring as bottle volume increases, covering small samples, working reagents and larger prepared solutions within one coordinated family. The lightweight polypropylene format suits routine storage, sampling and dispensing, while the consistent narrow-mouth and closure approach simplifies selection across laboratory, education, quality-control and industrial supply programs.
