PP Graduated Cylinders
Capacity range
10–2000ml
- Material
- PP
- Height
- 130–490mm
- Diameter
- 15–92mm
OEM / ODM Customization
Color, capacity, logo, packaging and product specifications.
Samples Available
Factory Pricing
Available Product Variants
Select a product variant and capacity to view the full-size SKU image.
Blue-Line Cylinders
White-Line Cylinders
Specifications
High-clarity PP measuring cylinders with a stable pentagonal base, available with bold blue printed graduations or white molded graduations for clear volume readings.
| SKU / Capacity | Diameter(mm) | Height(mm) | Base diameter(mm) | Graduation interval |
|---|---|---|---|---|

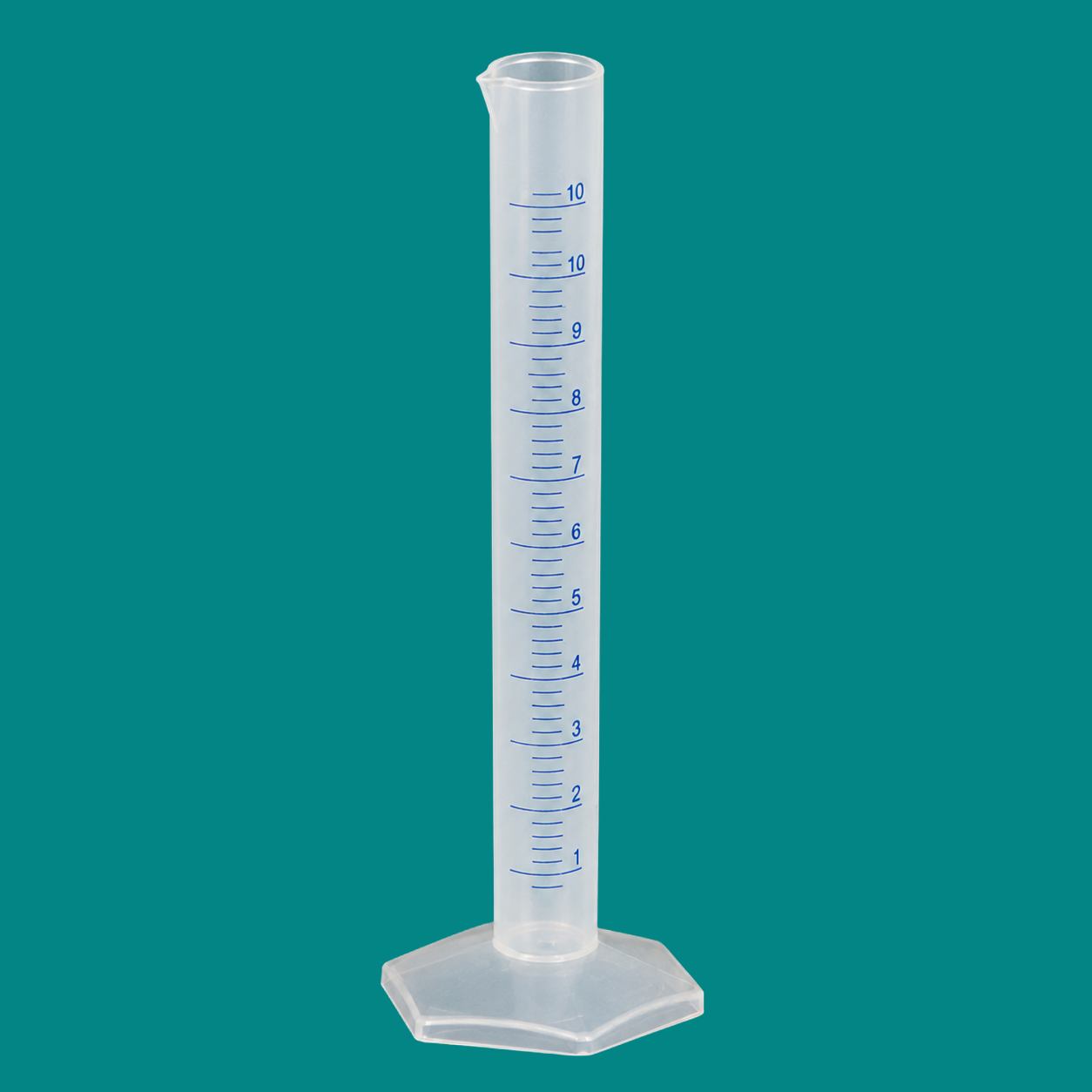

| 8248810mlBlue line | 15 | 130 | 45 | 0.2ml |

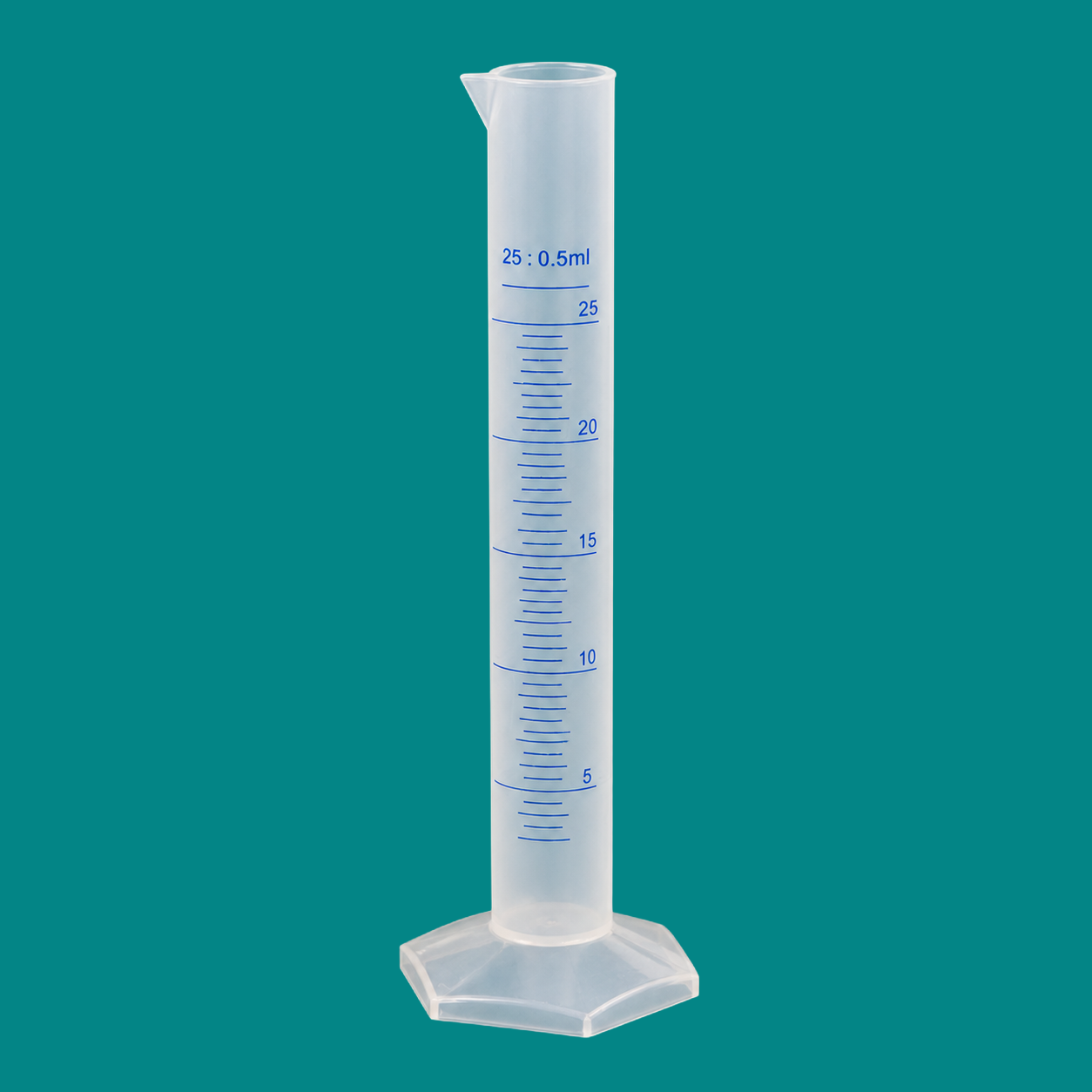

| 8248925mlBlue line | 21 | 140 | 52 | 1ml |

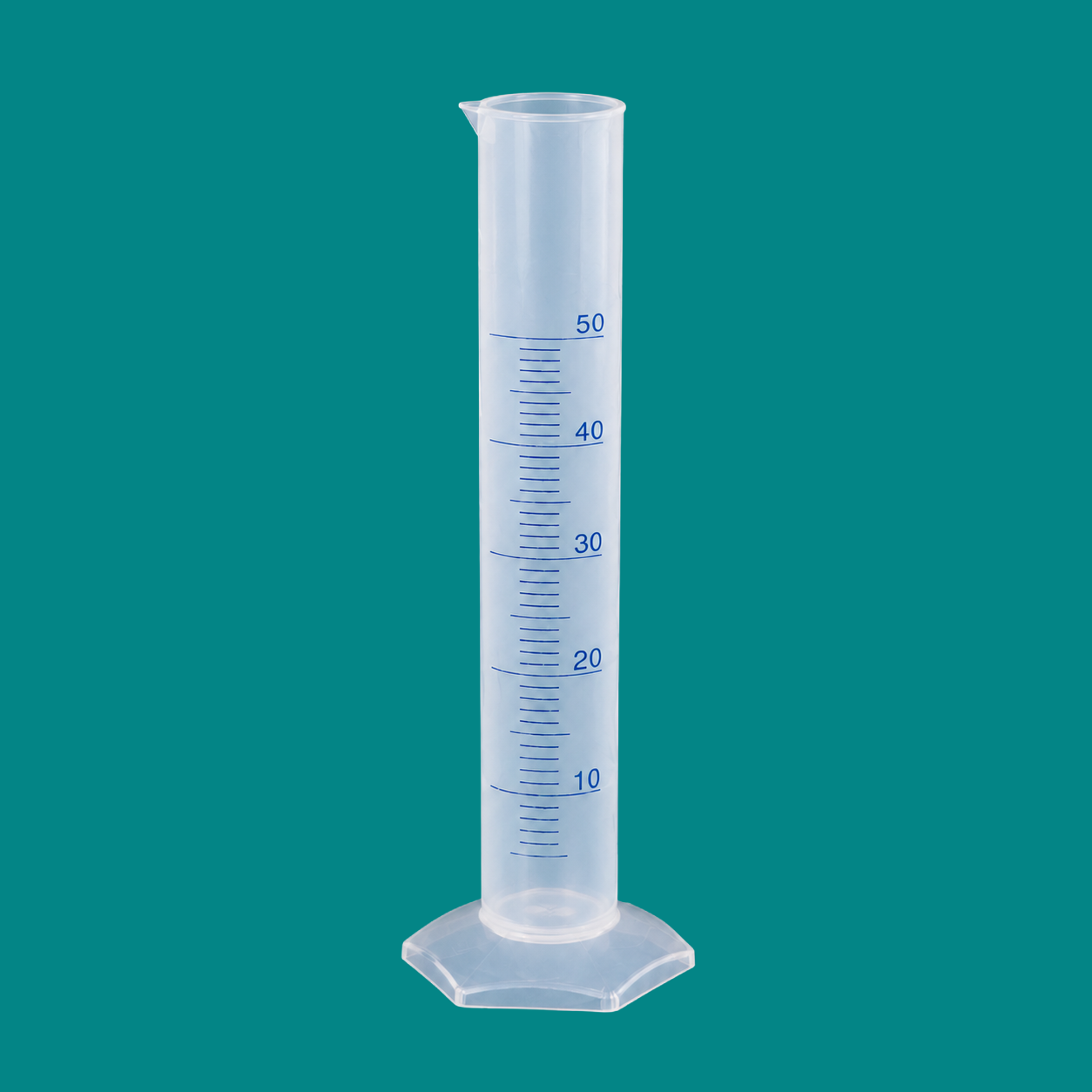

| 8249050mlBlue line | 25 | 172 | 60 | 1ml |

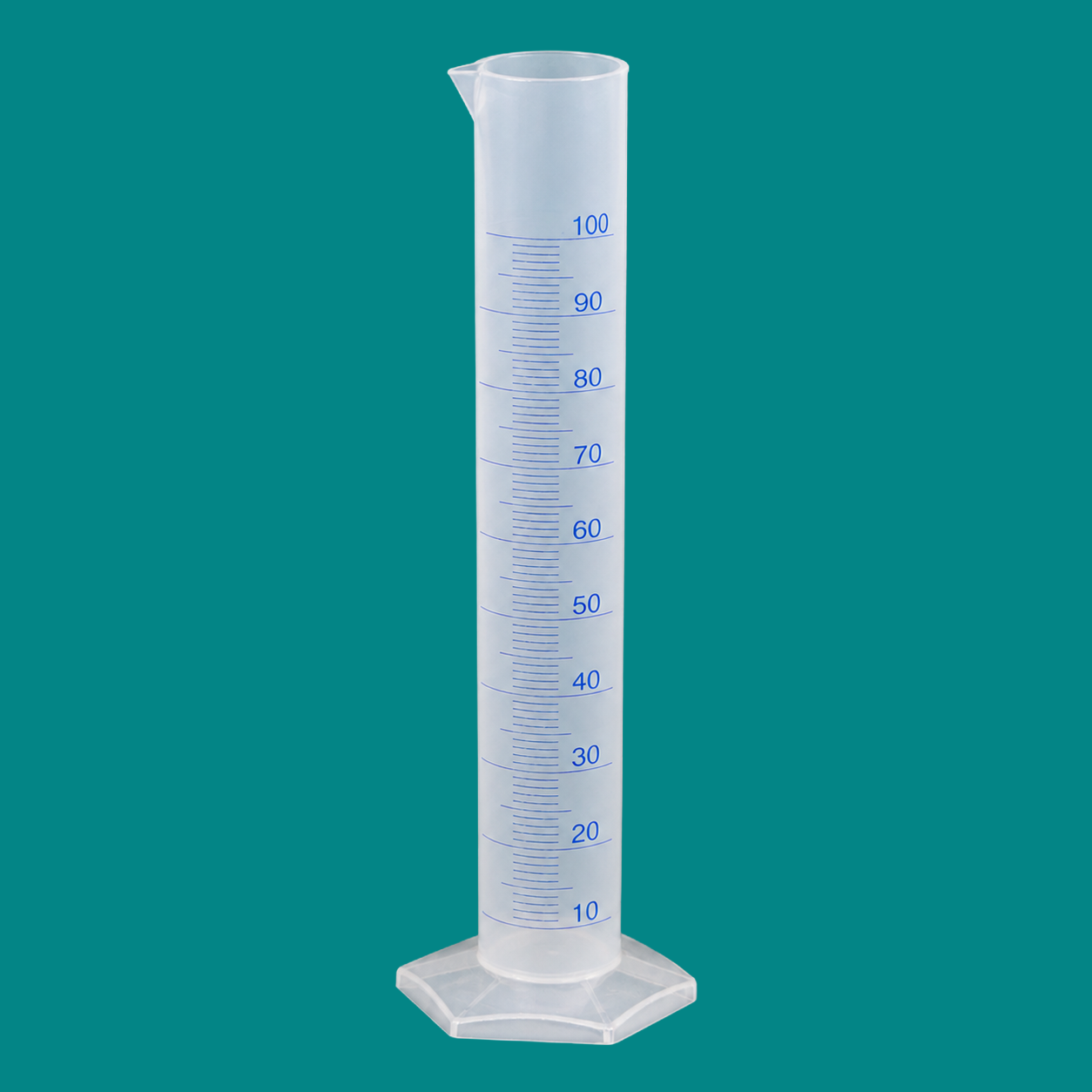

| 82491100mlBlue line | 31 | 255 | 70 | 1ml |

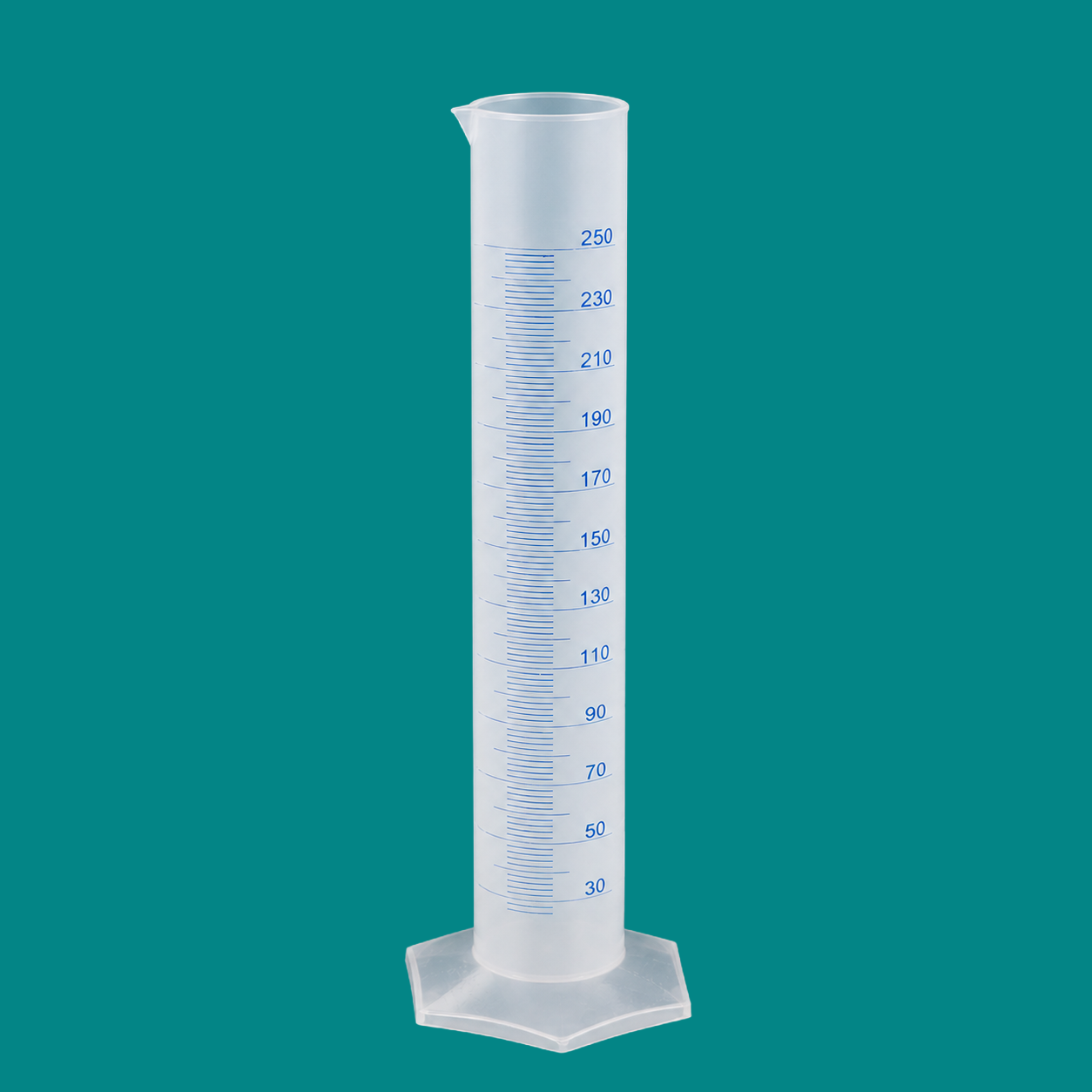

| 82492250mlBlue line | 43 | 300 | 81 | 5ml |

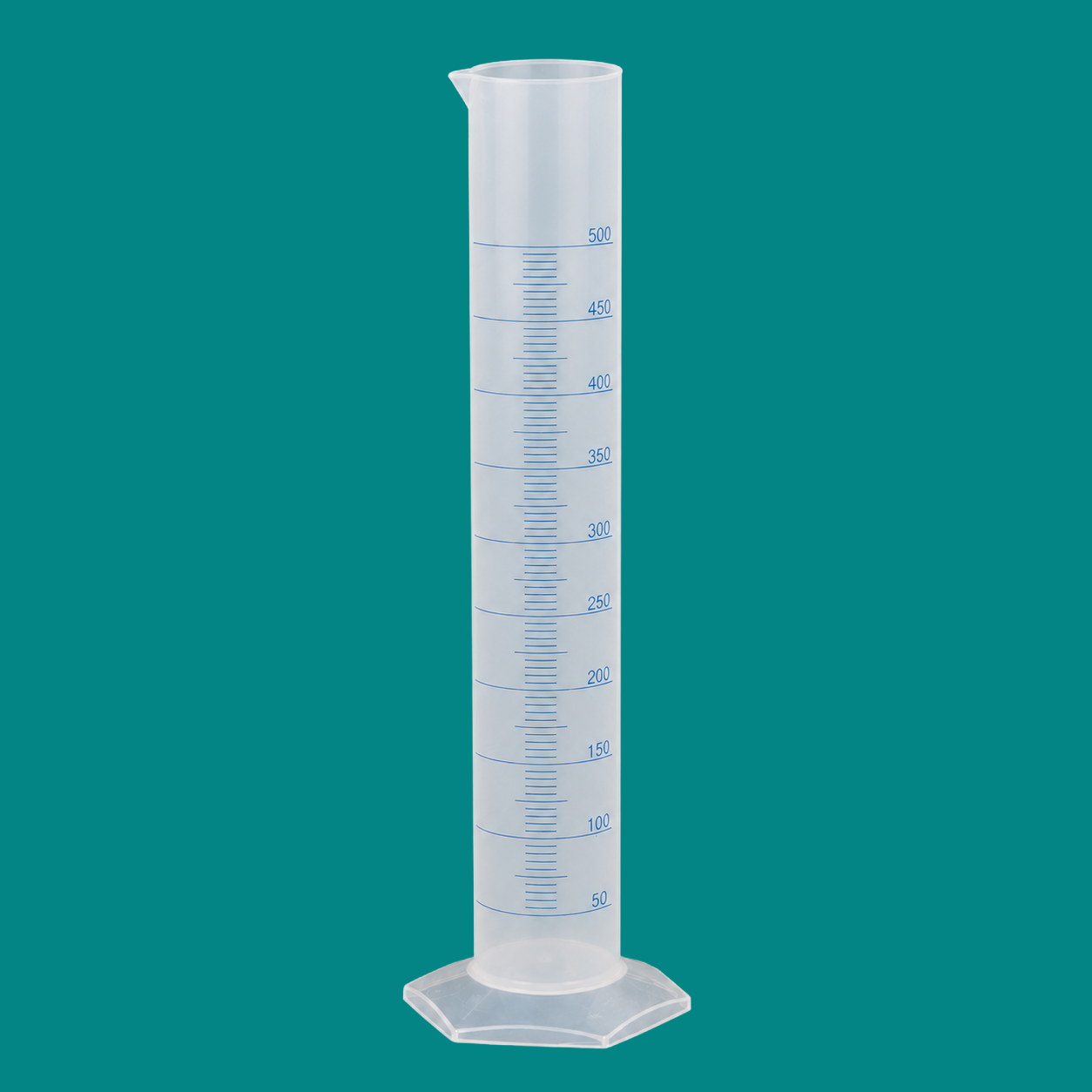

| 82493500mlBlue line | 55 | 360 | 105 | 5ml |

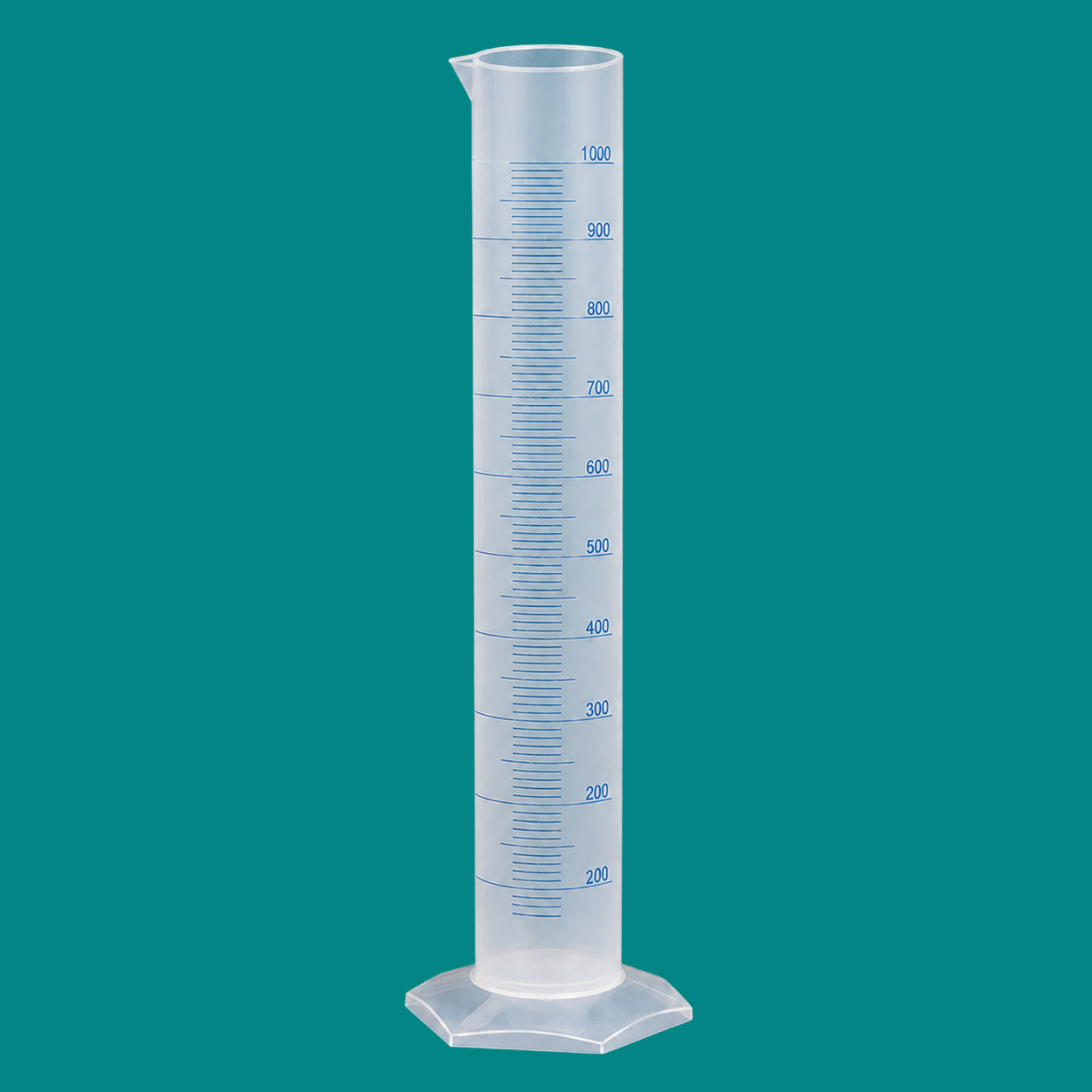

| 824941000mlBlue line | 70 | 425 | 115 | 10ml |

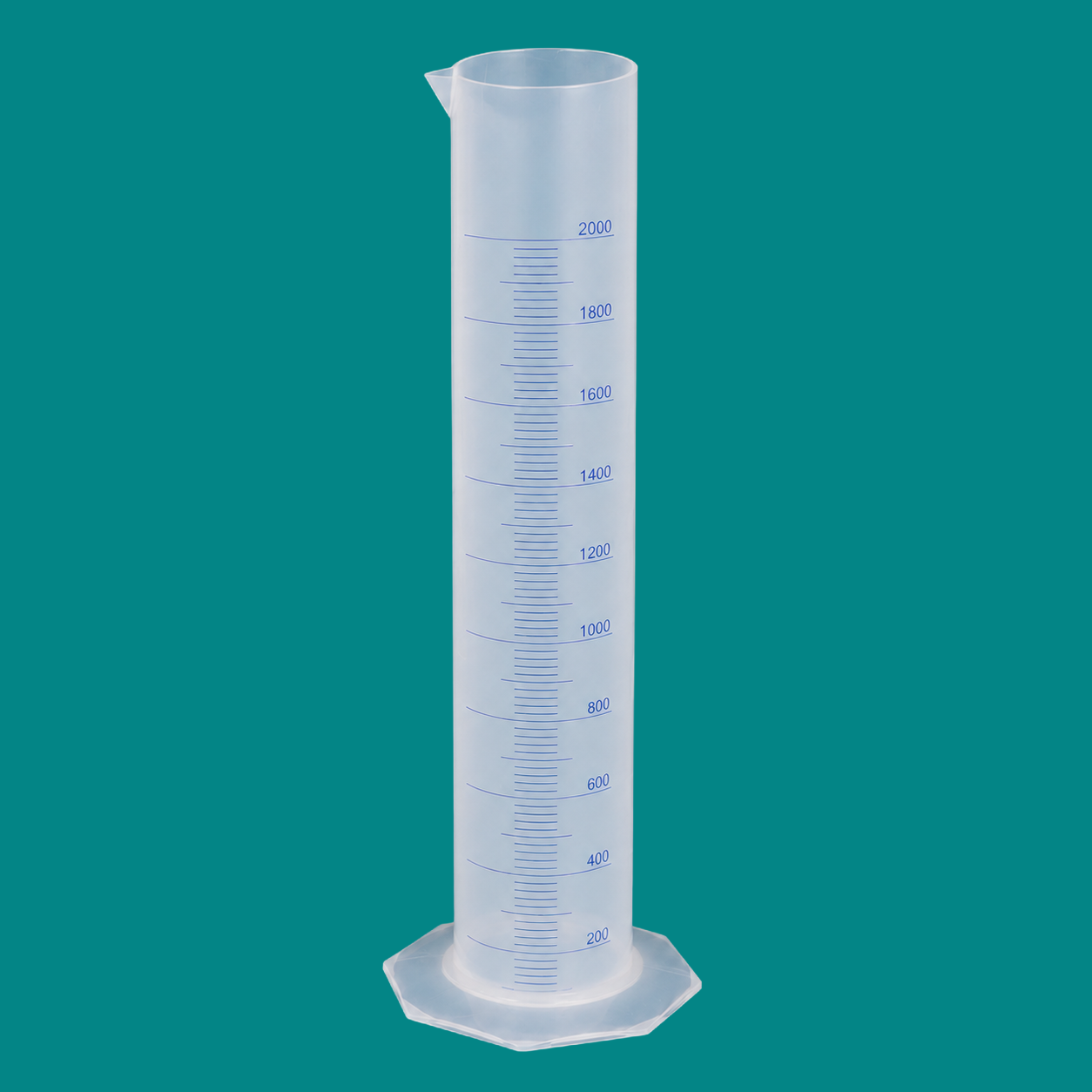

| 824952000mlBlue line | 92 | 490 | 160 | 20ml |

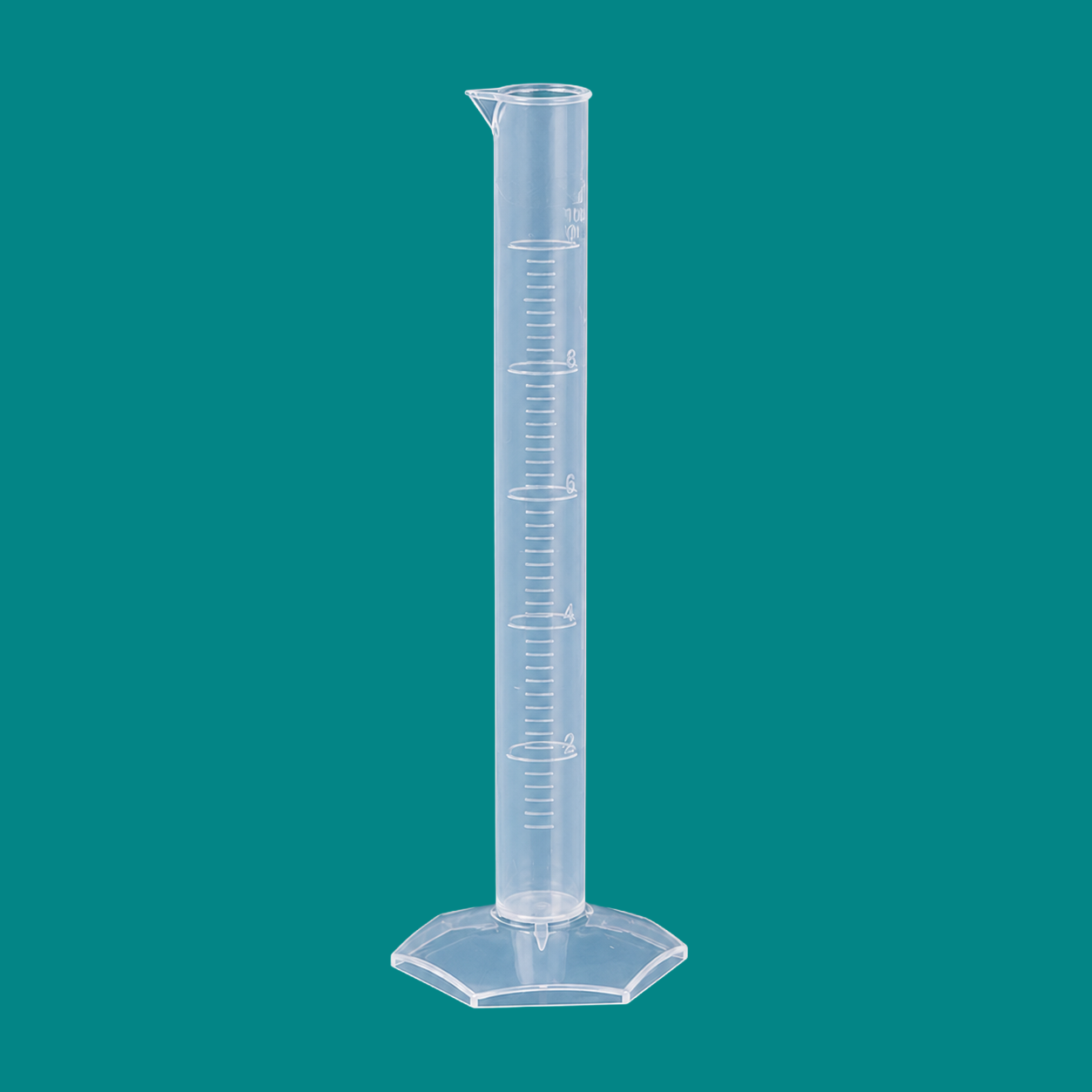

| 8249610mlWhite line | 15 | 130 | 45 | 0.2ml |

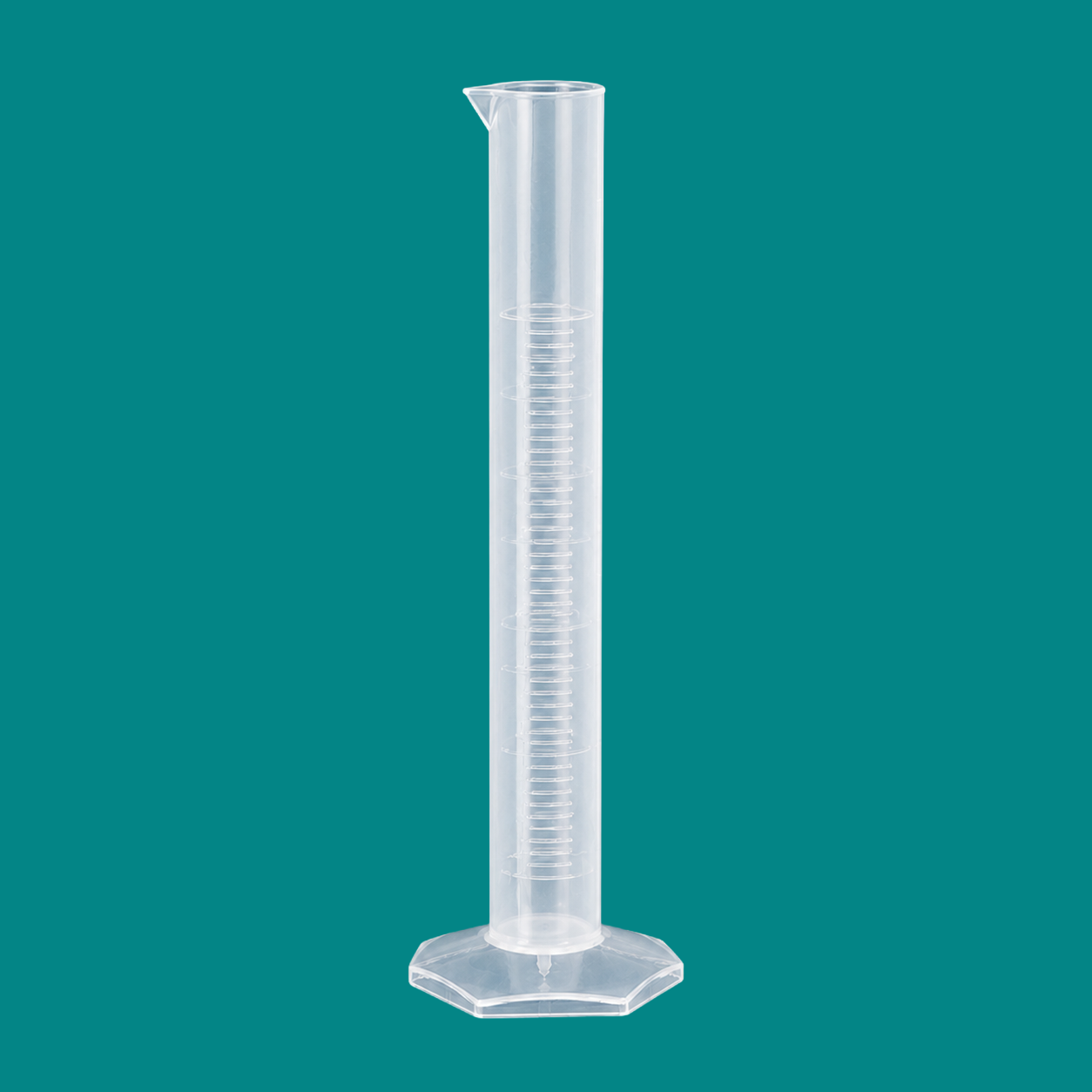

| 8249725mlWhite line | 21 | 140 | 52 | 1ml |

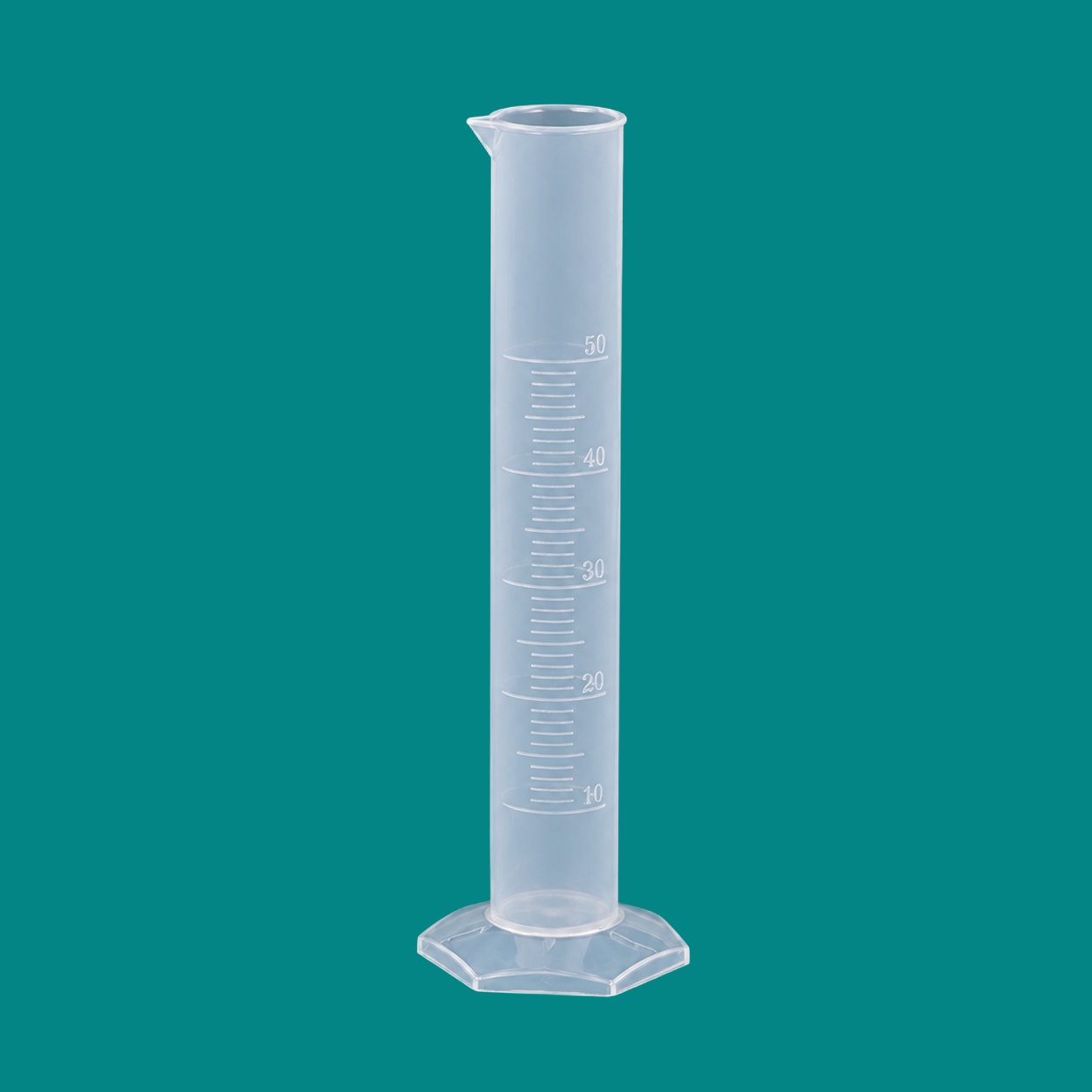

| 8249850mlWhite line | 25 | 172 | 60 | 1ml |

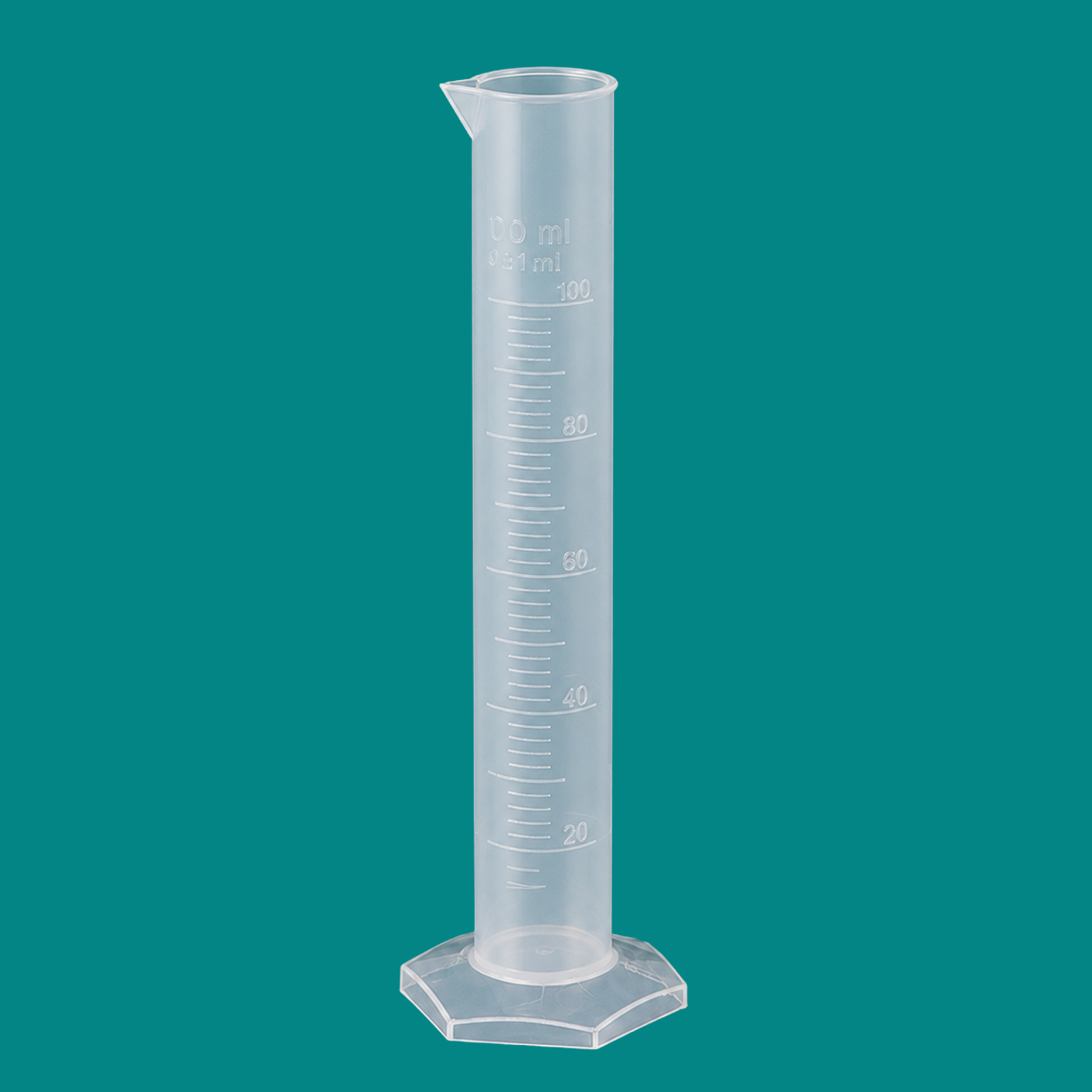

| 82499100mlWhite line | 31 | 255 | 70 | 1ml |

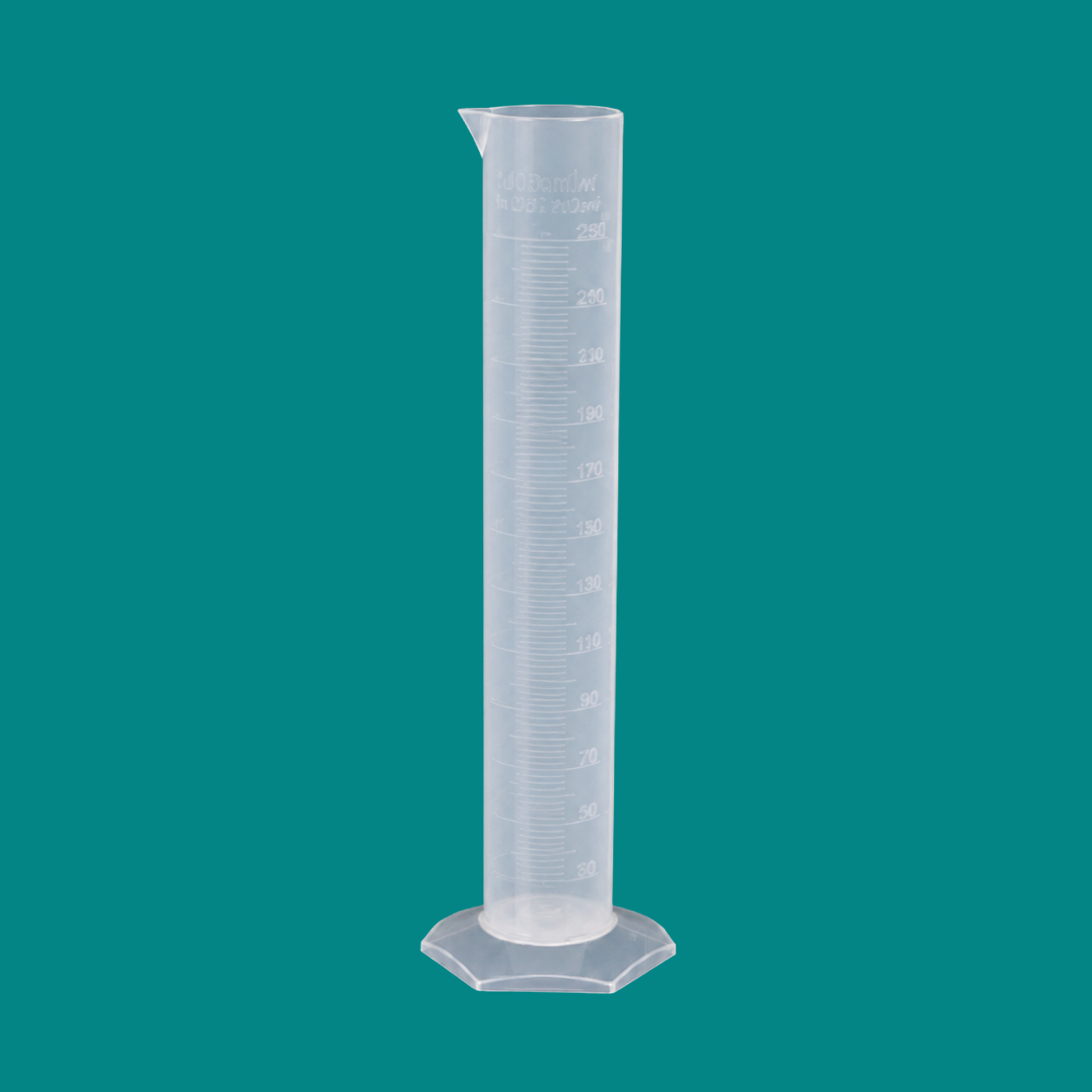

| 82500250mlWhite line | 43 | 300 | 81 | 5ml |

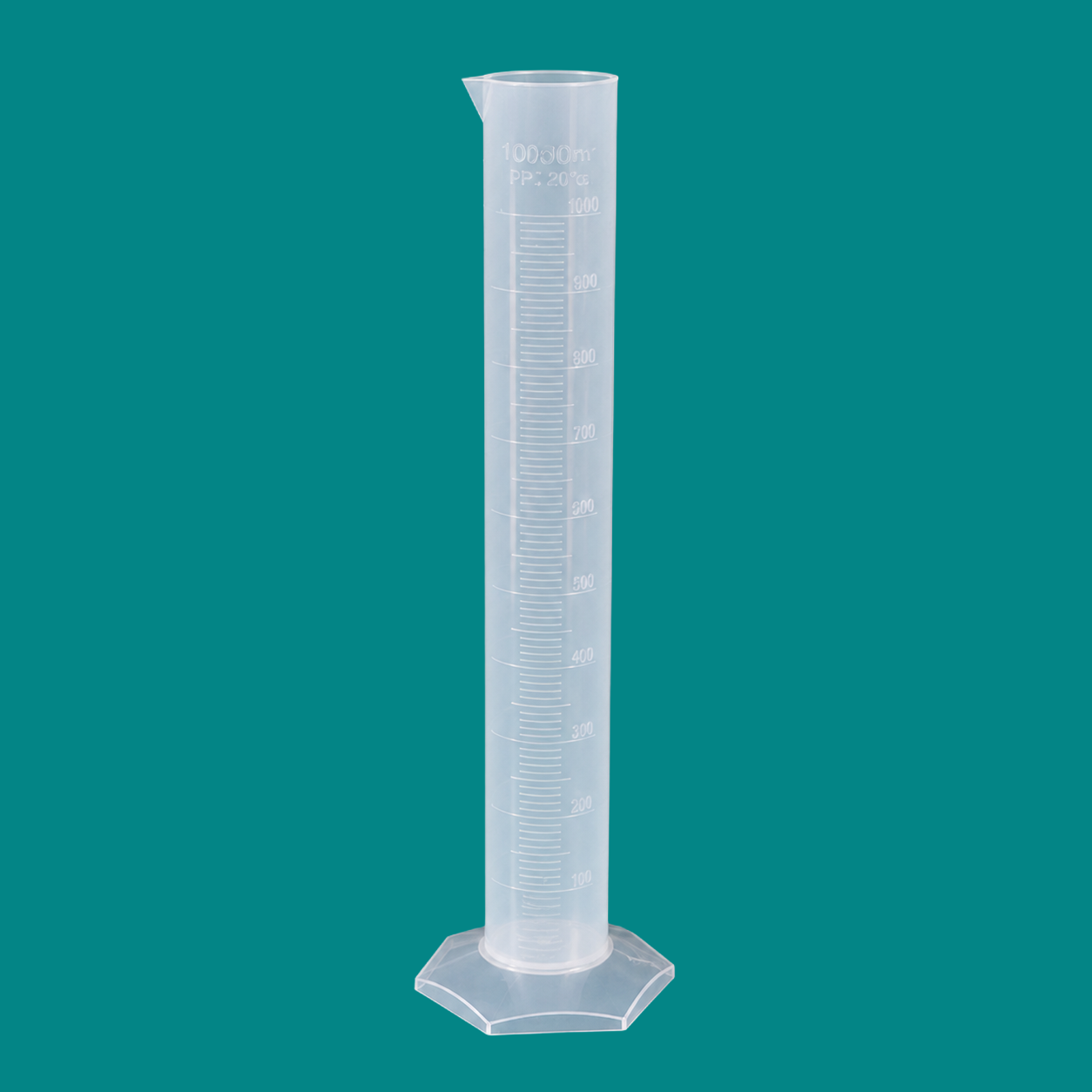

| 825011000mlWhite line | 70 | 425 | 115 | 10ml |

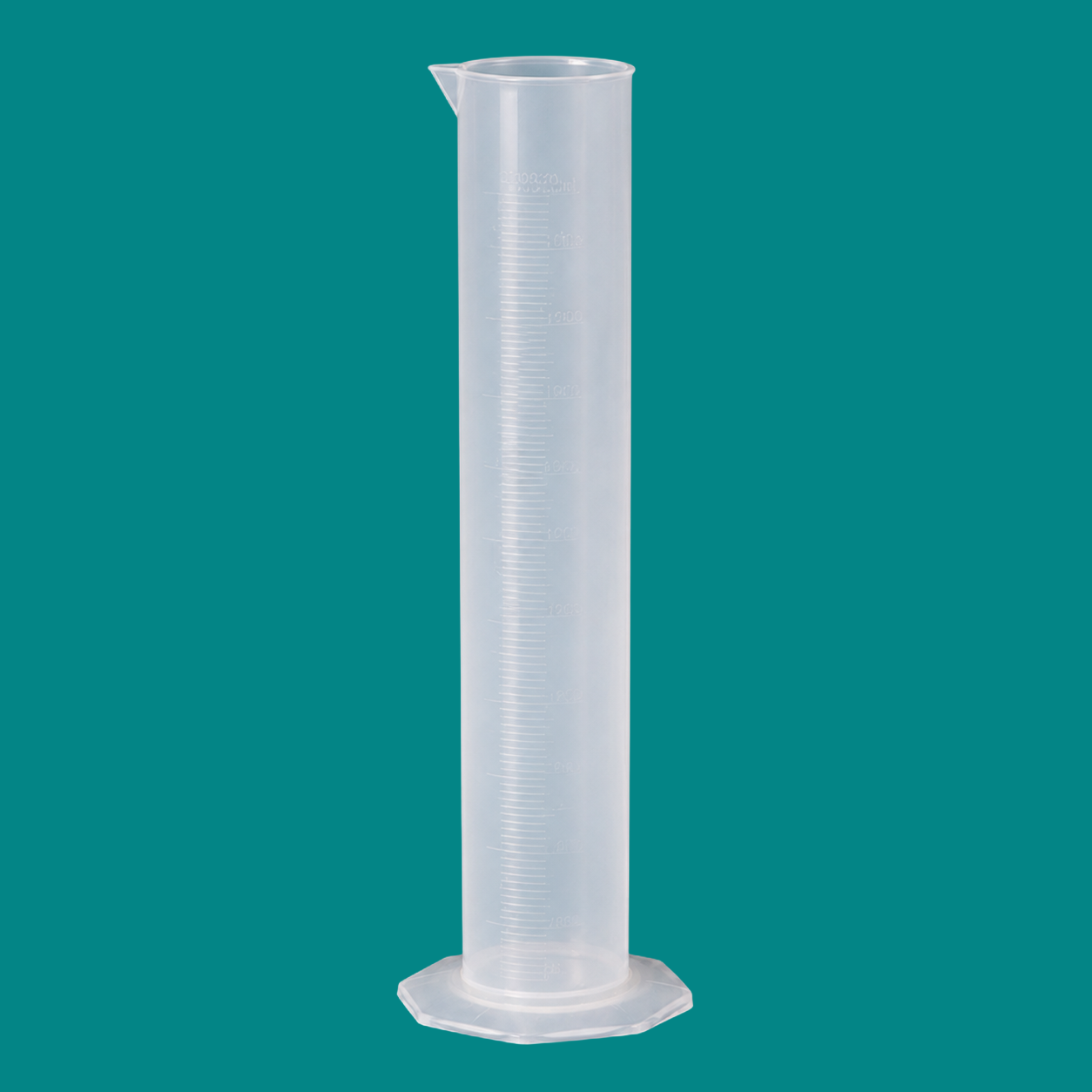

| 825022000mlWhite line | 92 | 490 | 160 | 20ml |
Services & Certification
Sterilization
Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.
Packaging Design
Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.
ISO 13485 Certification
Product description
Polypropylene graduated cylinders range from 10ml to 2000ml with stable bases and two scale variants: blue printed graduation lines or white molded markings. Graduation intervals change with capacity, allowing the same cylinder family to cover small-volume checks and larger liquid-preparation tasks. The markings provide a convenient routine reference; confirm tolerance and calibration requirements before selecting a cylinder for quantitative methods.
