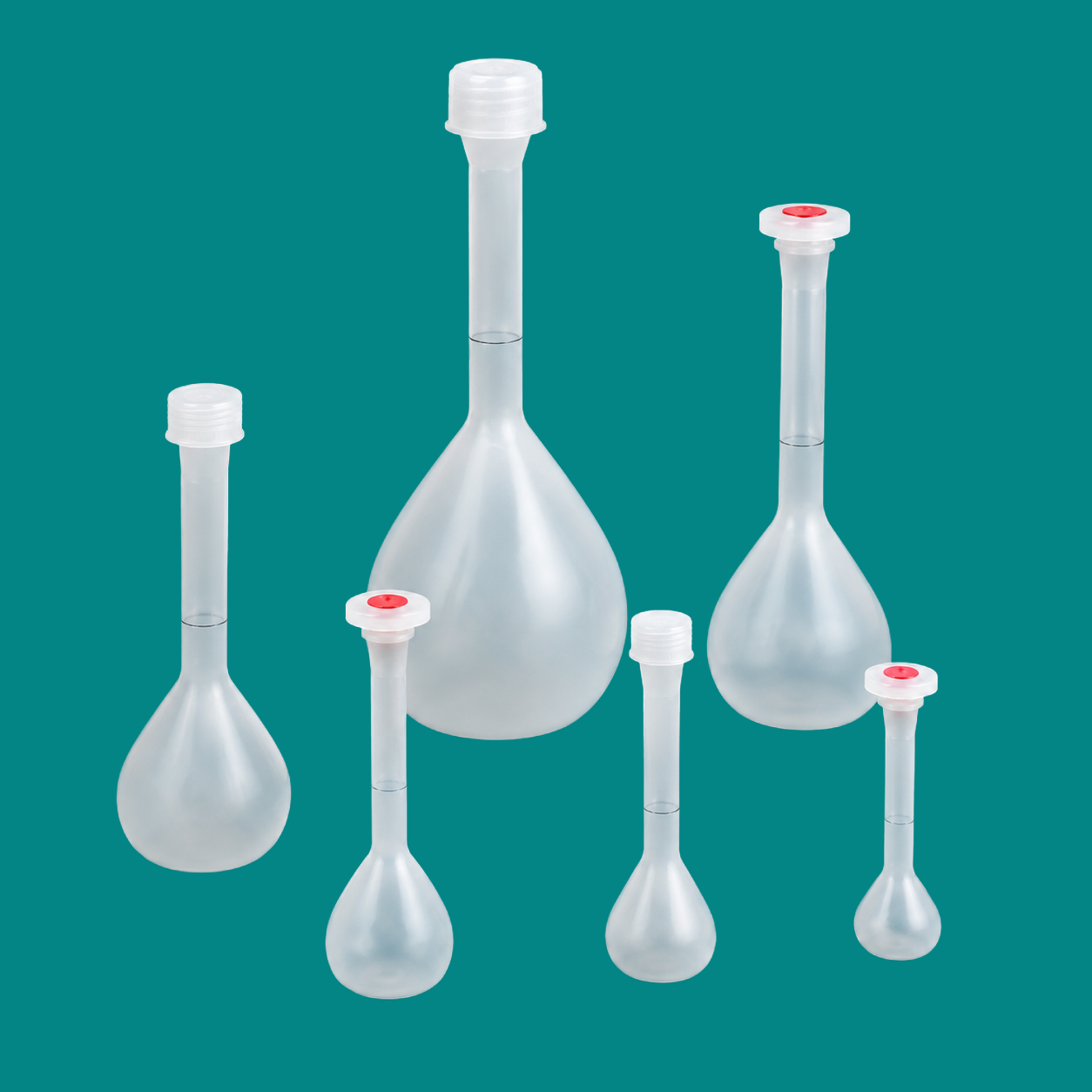

PP Volumetric Flasks with Screw Caps or Stoppers
Capacity range
10–500ml
- Material
- PP
- Height
- 90–261mm
- Diameter
- 32–103mm
OEM / ODM Customization
Color, capacity, logo, packaging and product specifications.
Samples Available
Factory Pricing
Available Product Variants & Specifications
Select a product variant and capacity to view the full-size SKU image.
Screw Caps
Stoppers
Screw Cap Specifications
Polypropylene volumetric flasks with screw-cap and plug-style stopper closures.
| SKU / Capacity | Closure | Diameter(mm) | Mouth(mm) | Height(mm) |
|---|---|---|---|---|

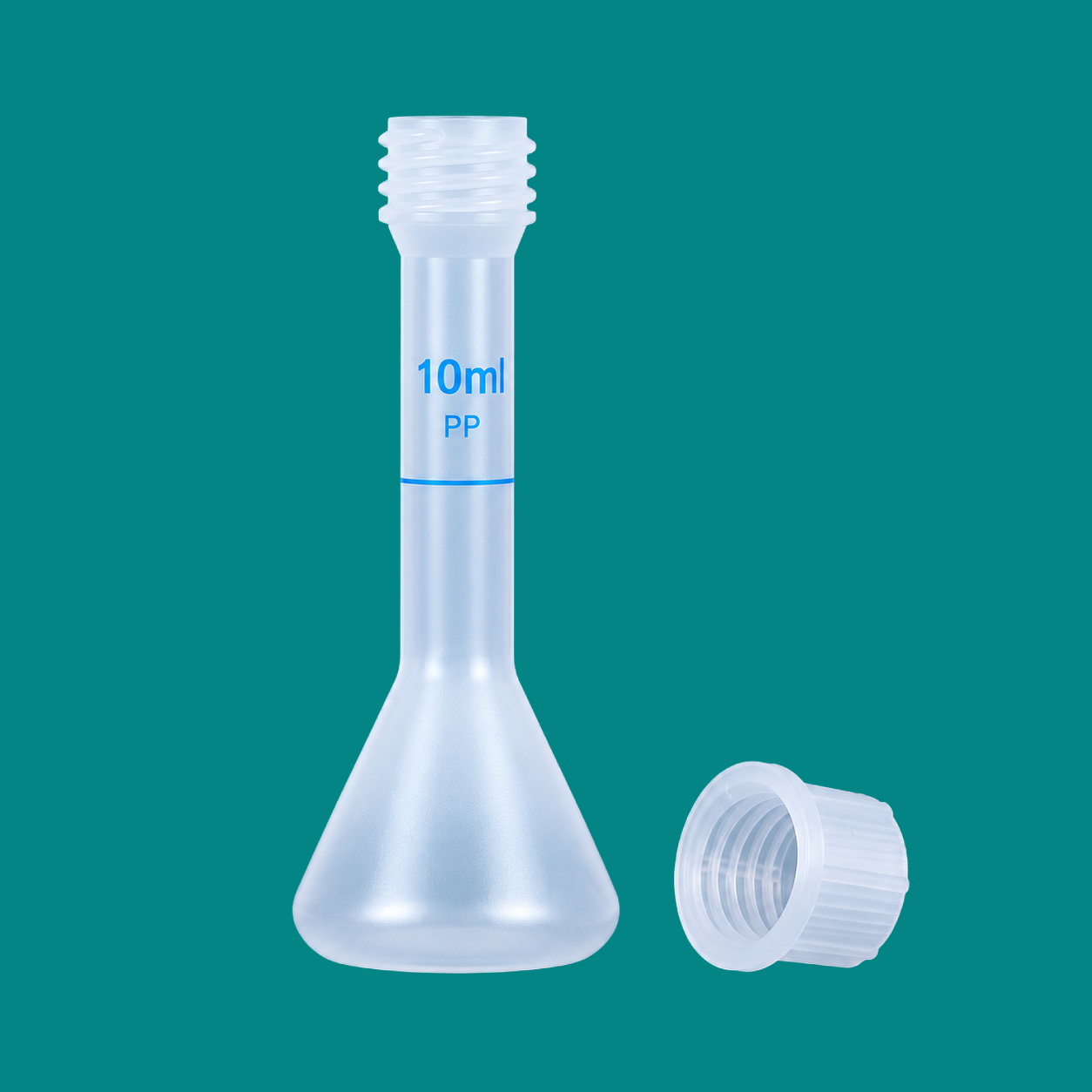

| 8246210ml | Screw cap | 32 | 13 | 90 |

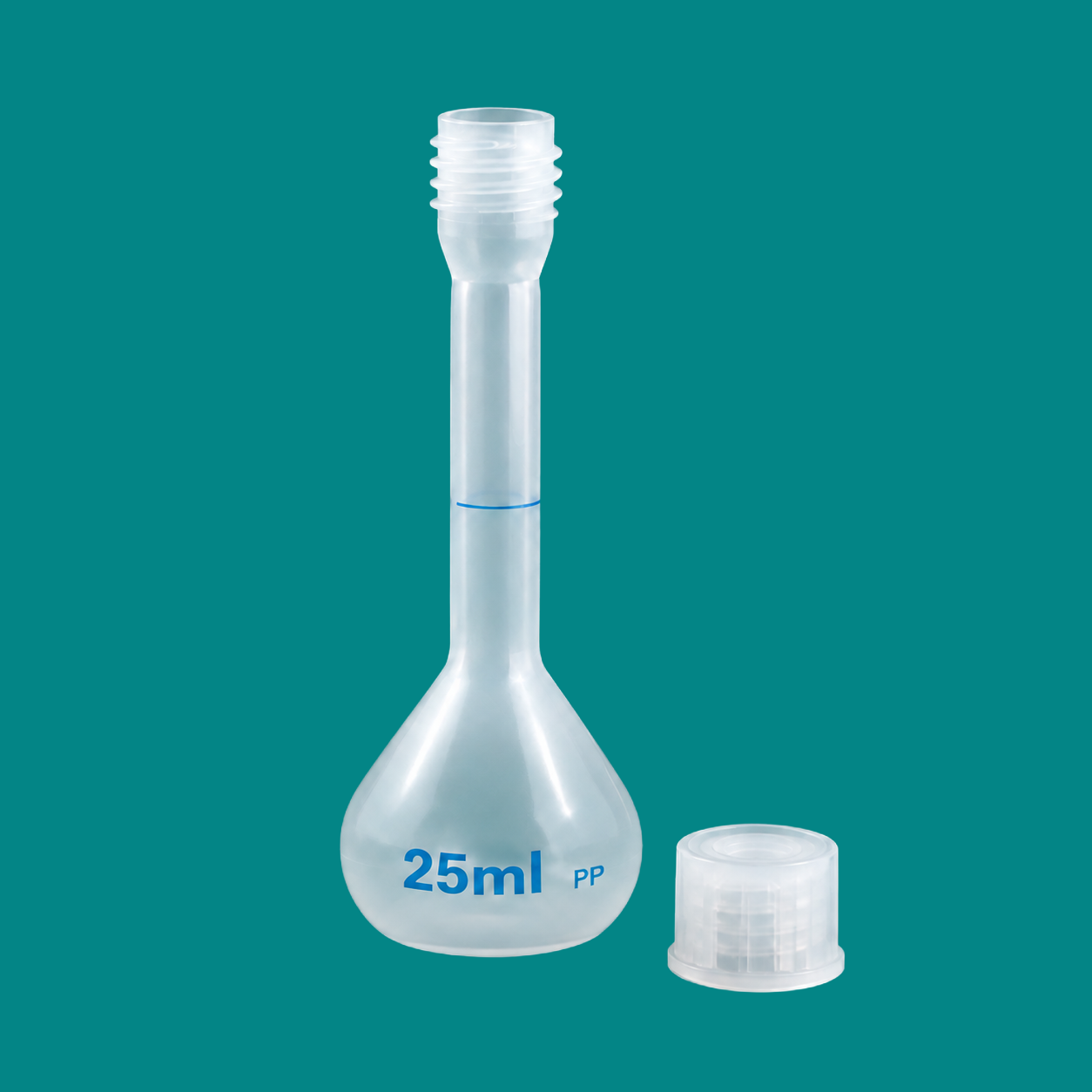

| 8246325ml | Screw cap | 41 | 13 | 114 |

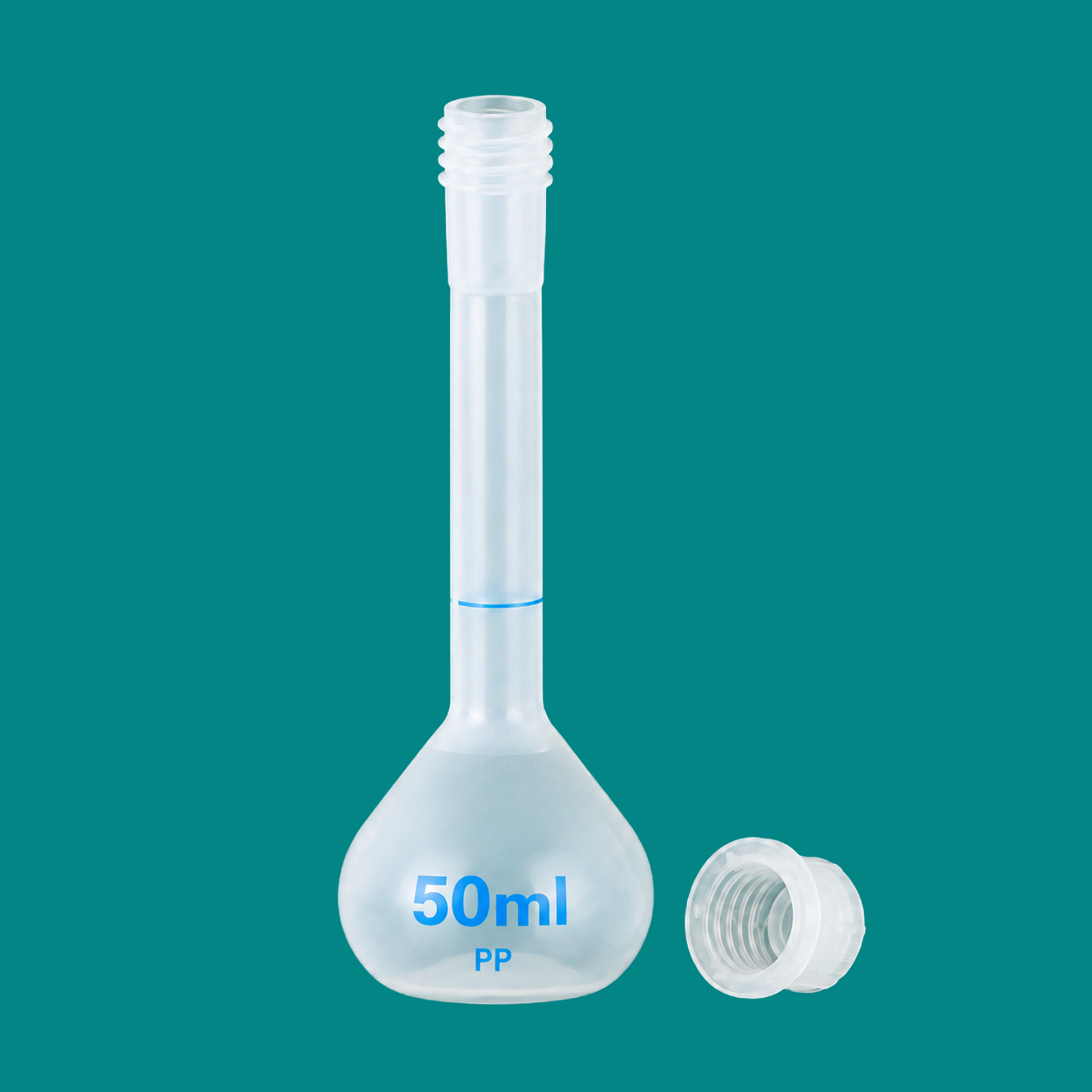

| 8246450ml | Screw cap | 50 | 13 | 148 |

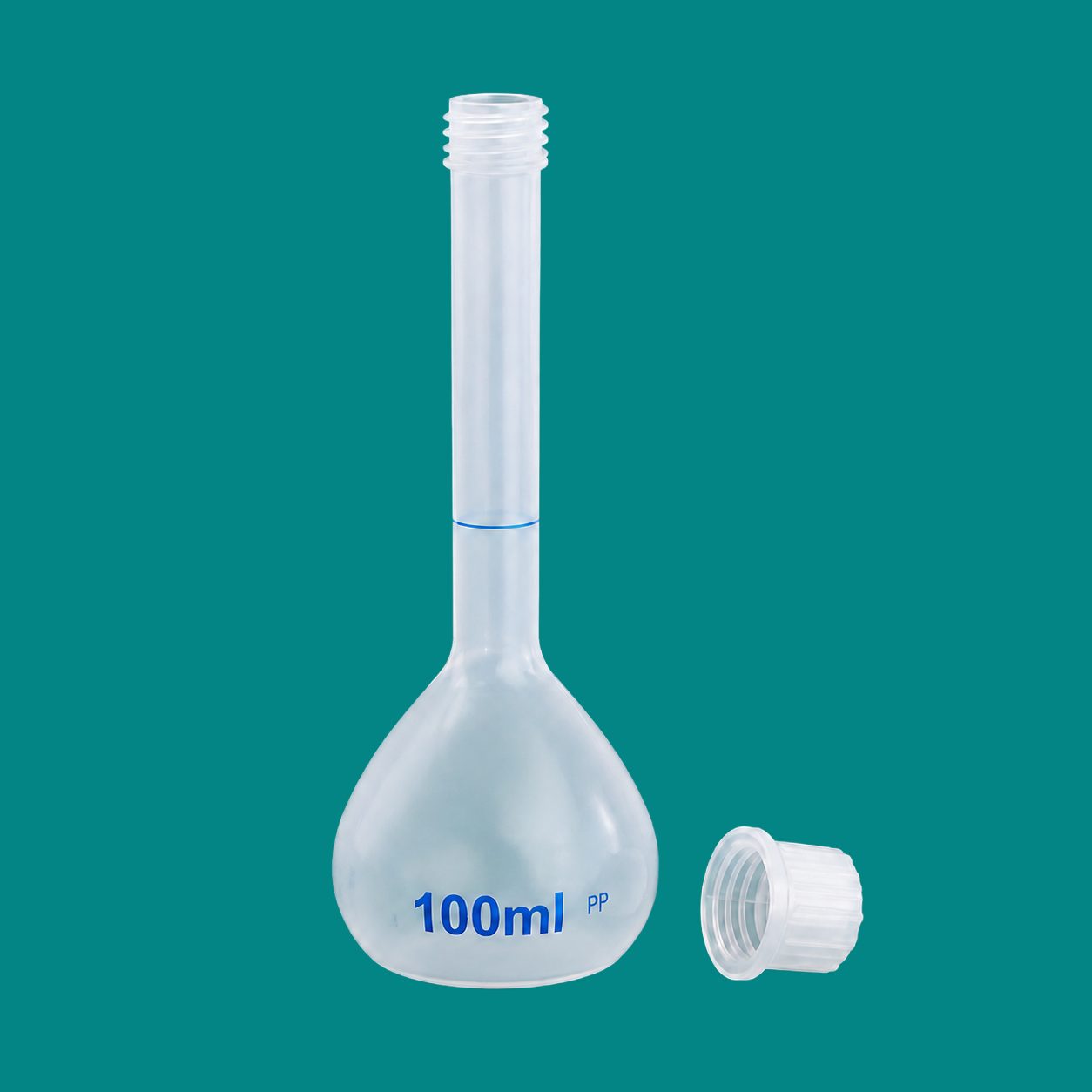

| 82465100ml | Screw cap | 62 | 13 | 179 |

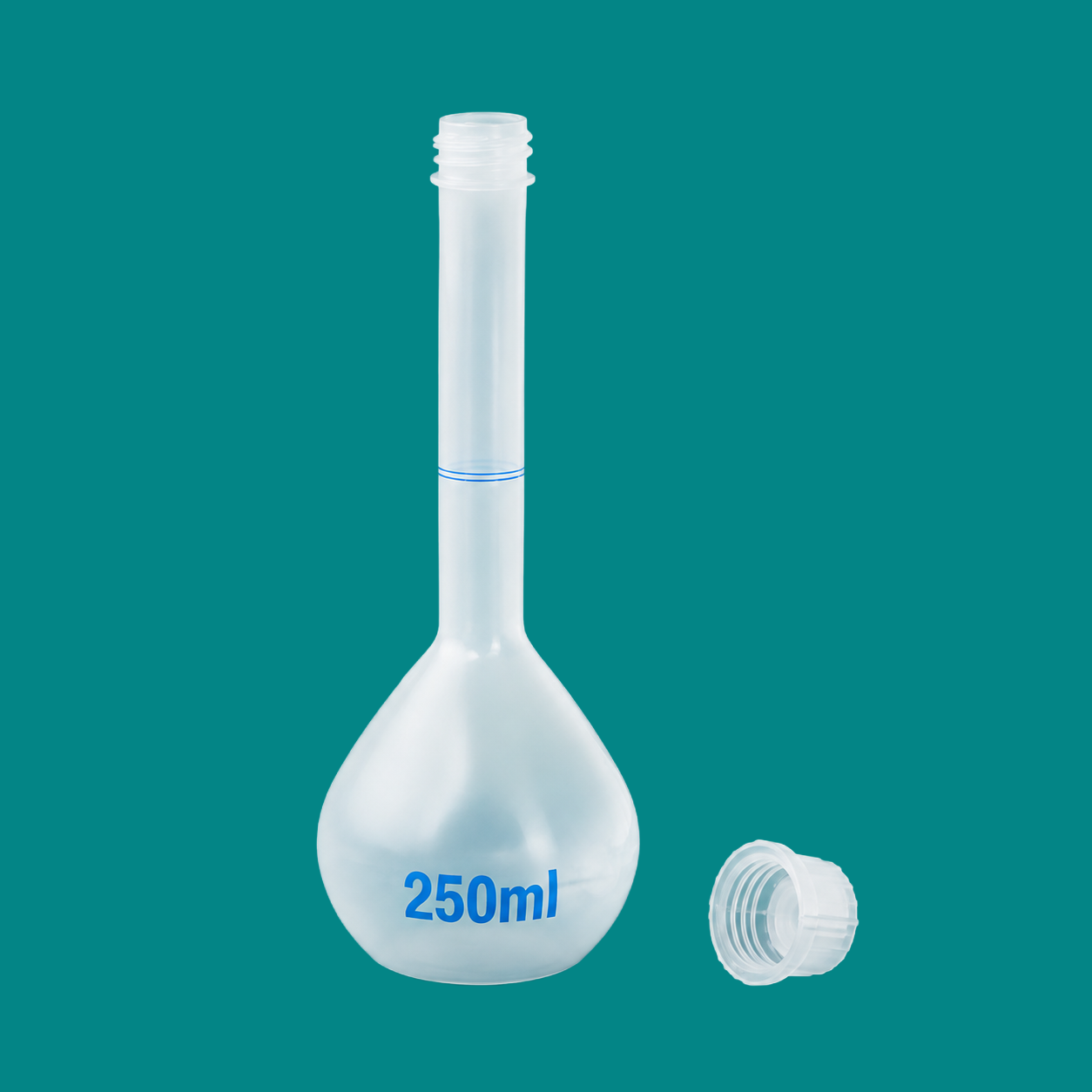

| 82466250ml | Screw cap | 83 | 20 | 230 |

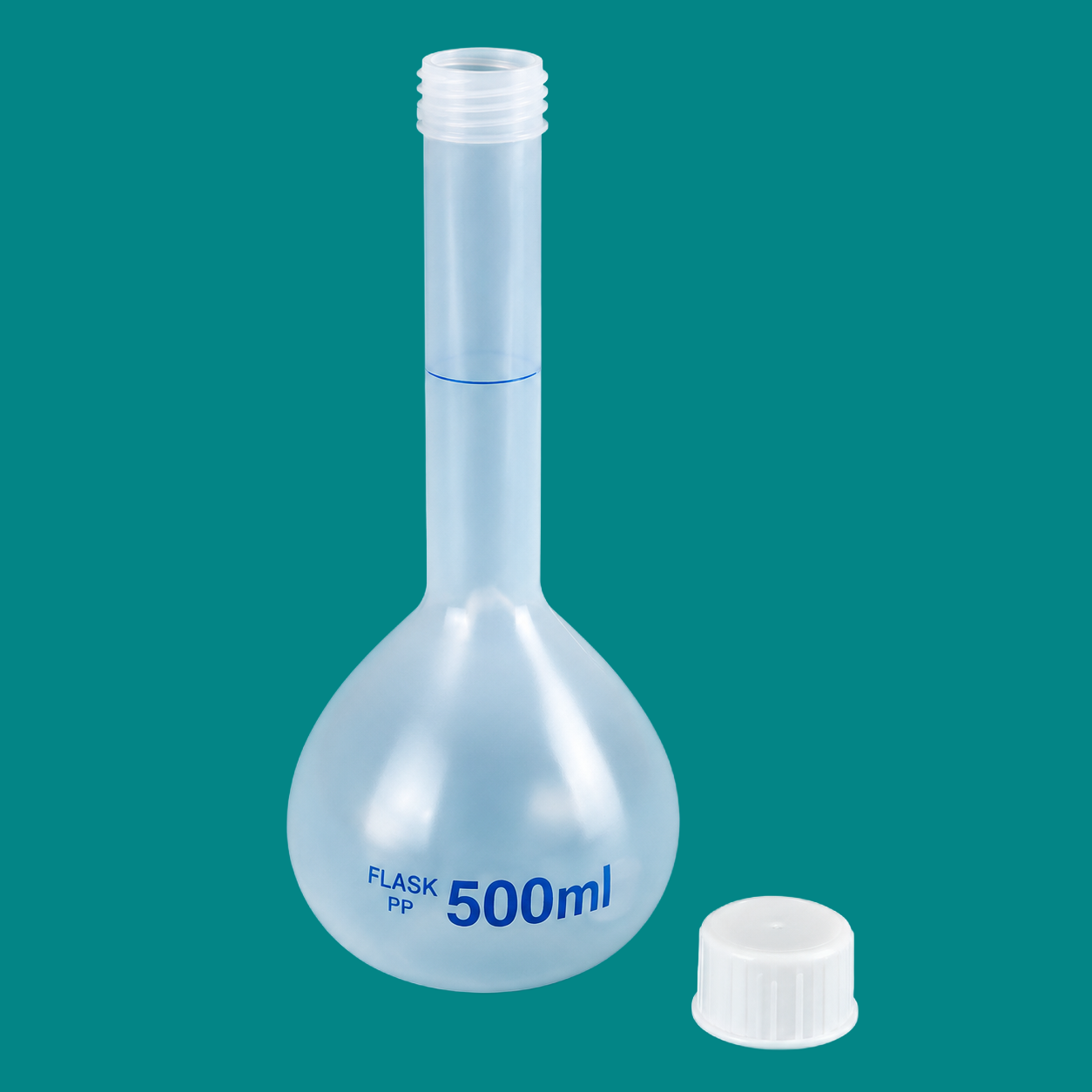

| 82467500ml | Screw cap | 103 | 20 | 261 |
Stopper Specifications
Dimensions for the stopper variants in this product family.
| SKU / Capacity | Closure | Diameter(mm) | Mouth(mm) | Height(mm) |
|---|---|---|---|---|

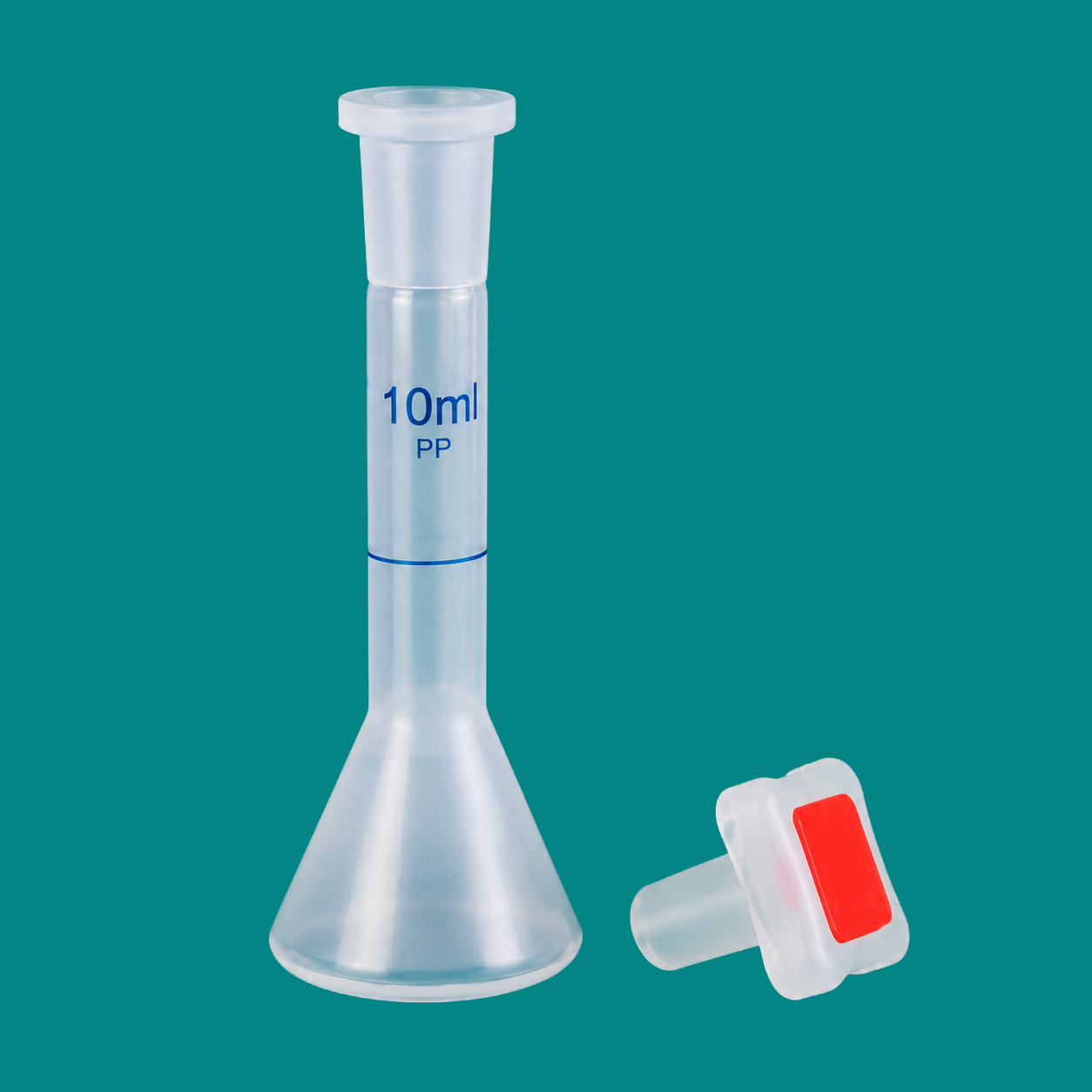

| 8246810ml | Stopper | 32 | 10 | 102 |

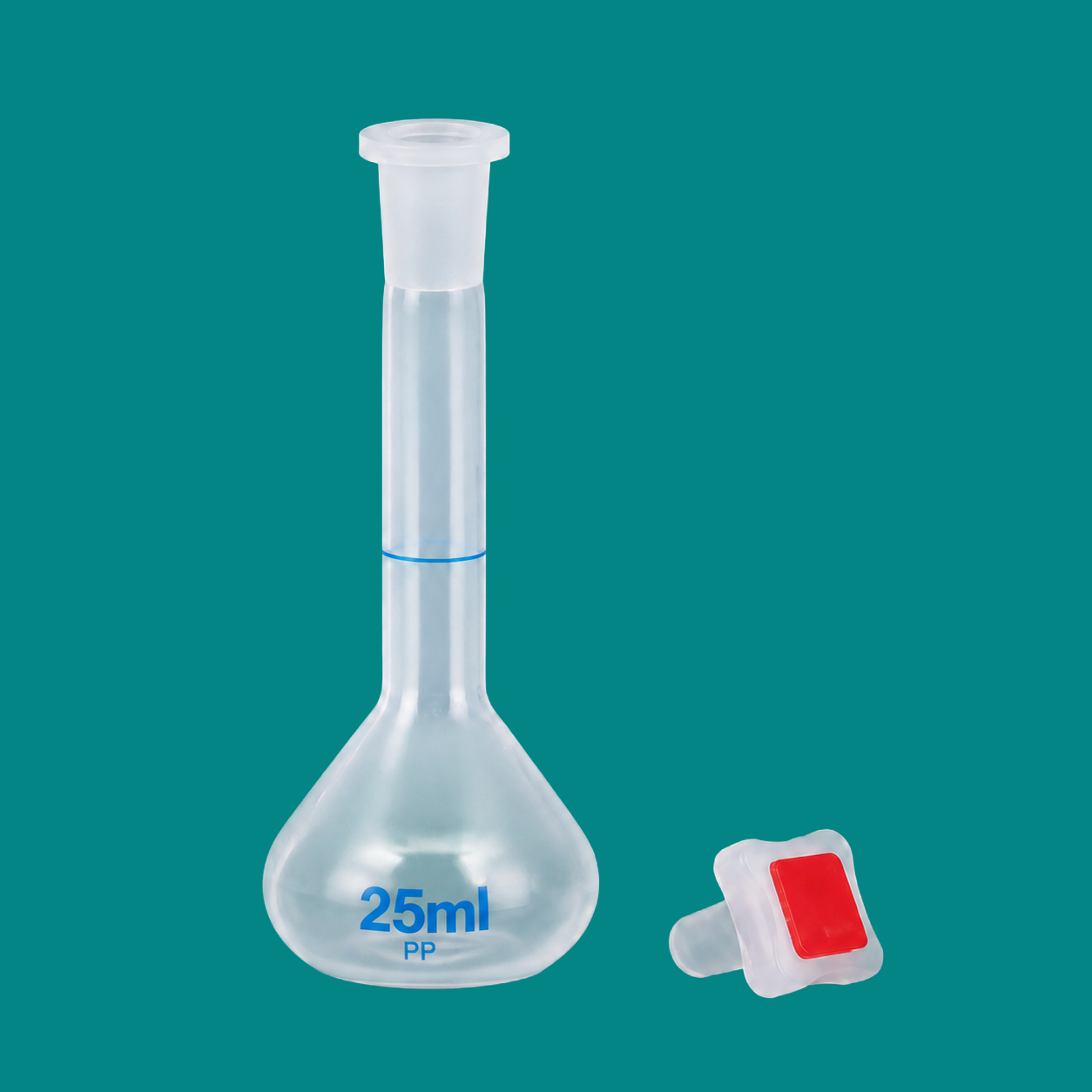

| 8246925ml | Stopper | 41 | 10 | 119 |

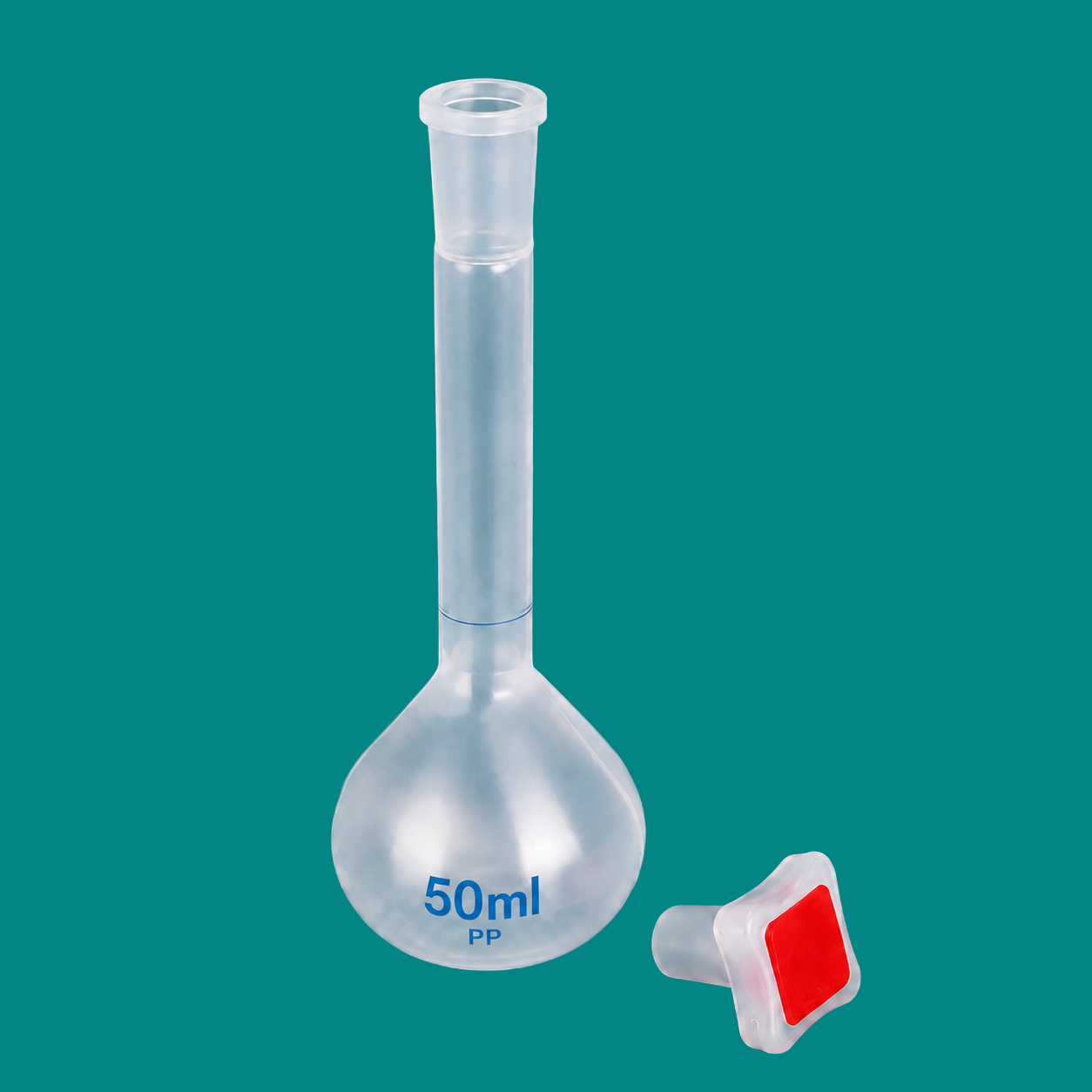

| 8247050ml | Stopper | 50 | 12 | 150 |

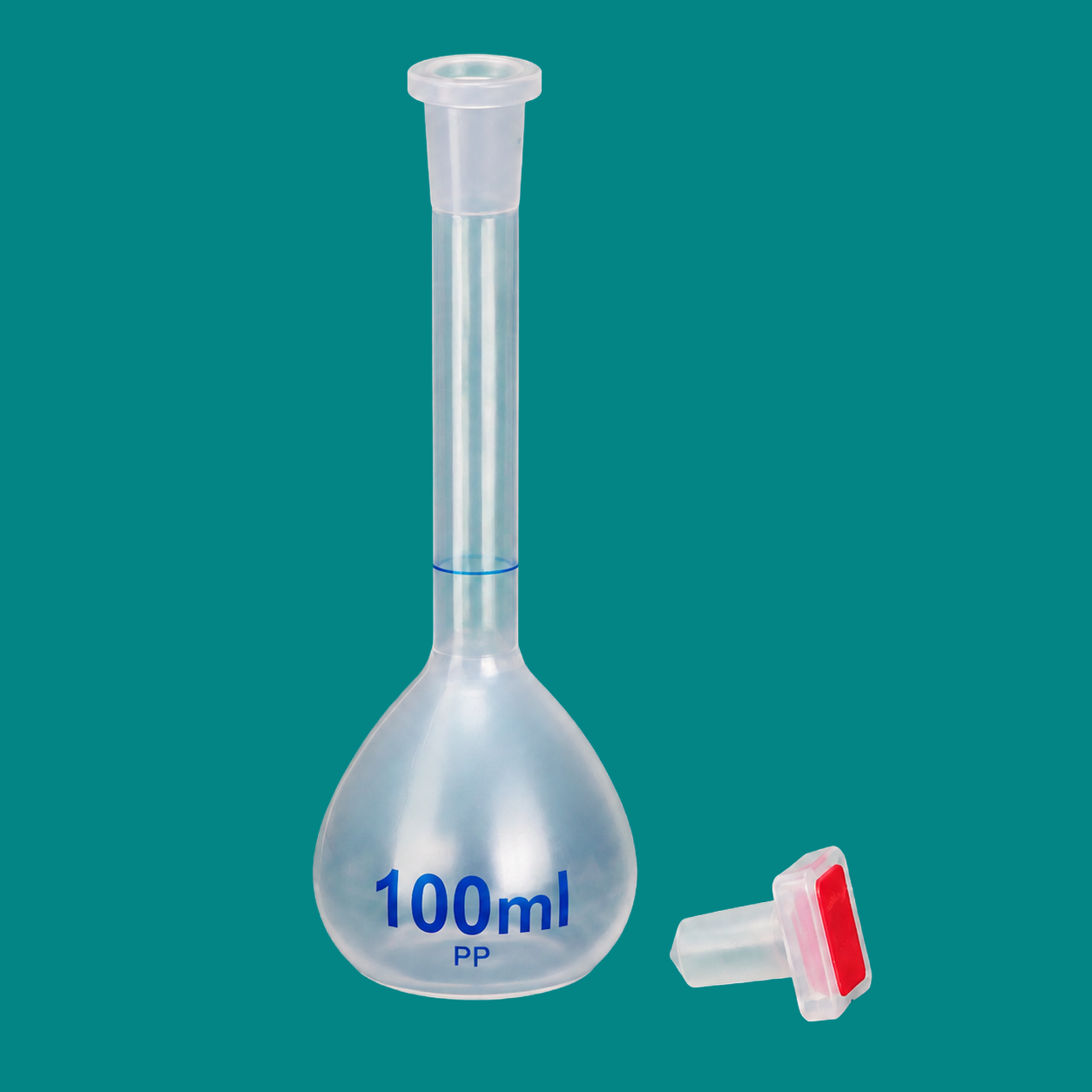

| 82471100ml | Stopper | 61 | 14 | 182 |

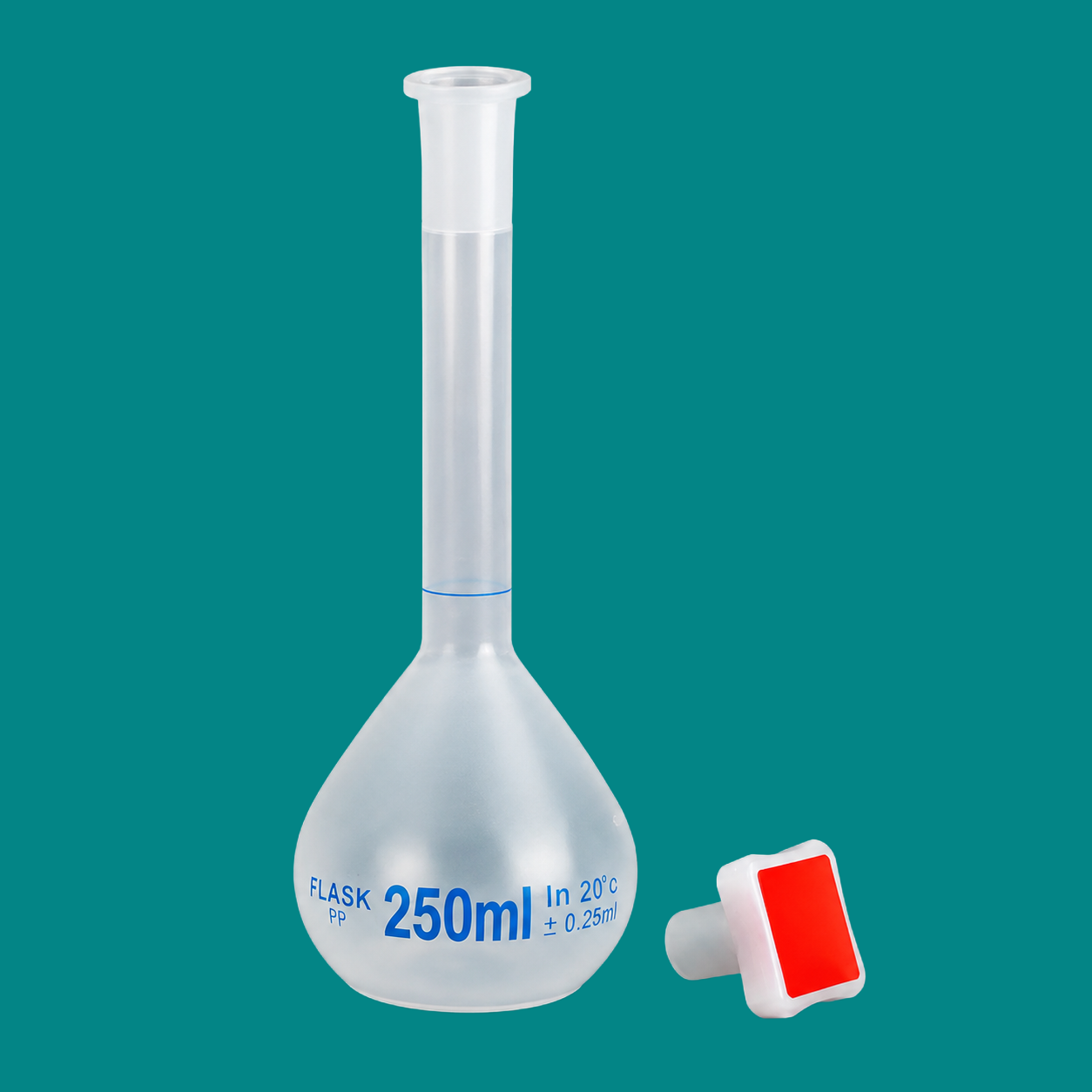

| 82472250ml | Stopper | 83 | 19 | 240 |

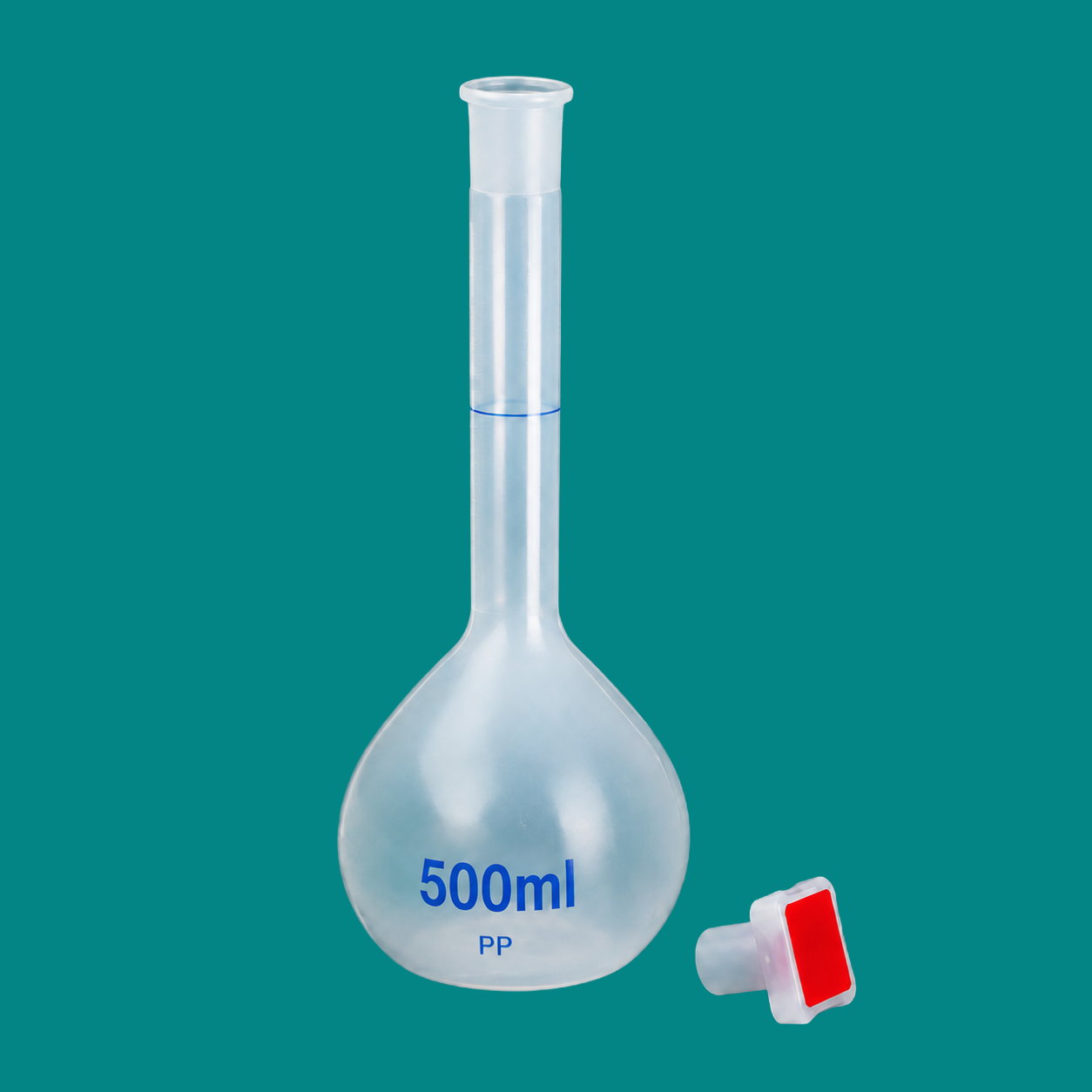

| 82473500ml | Stopper | 103 | 19 | 272 |

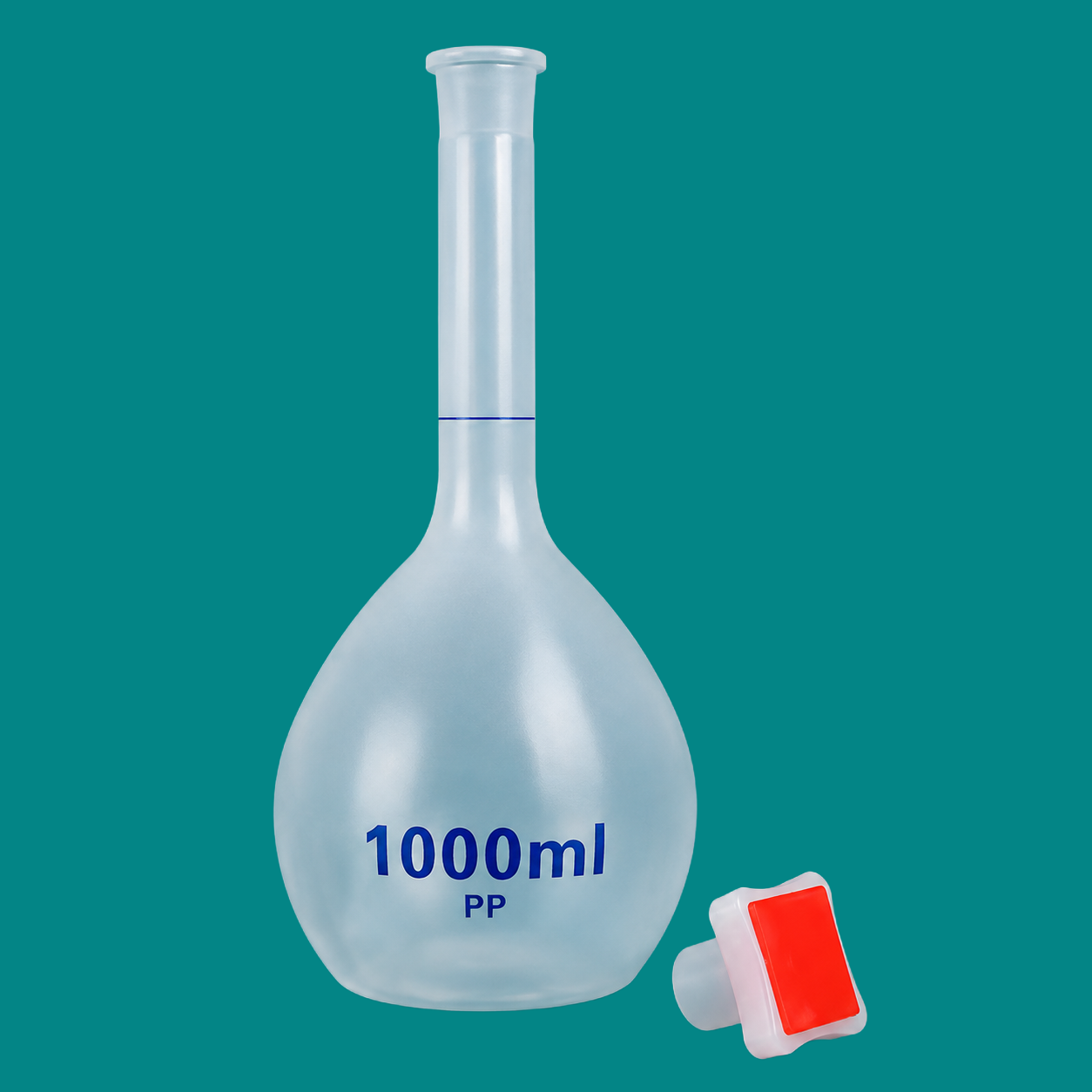

| 824741000ml | Stopper | 122 | 24 | 303 |
Services & Certification
Sterilization
Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.
Packaging Design
Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.
ISO 13485 Certification
Product description

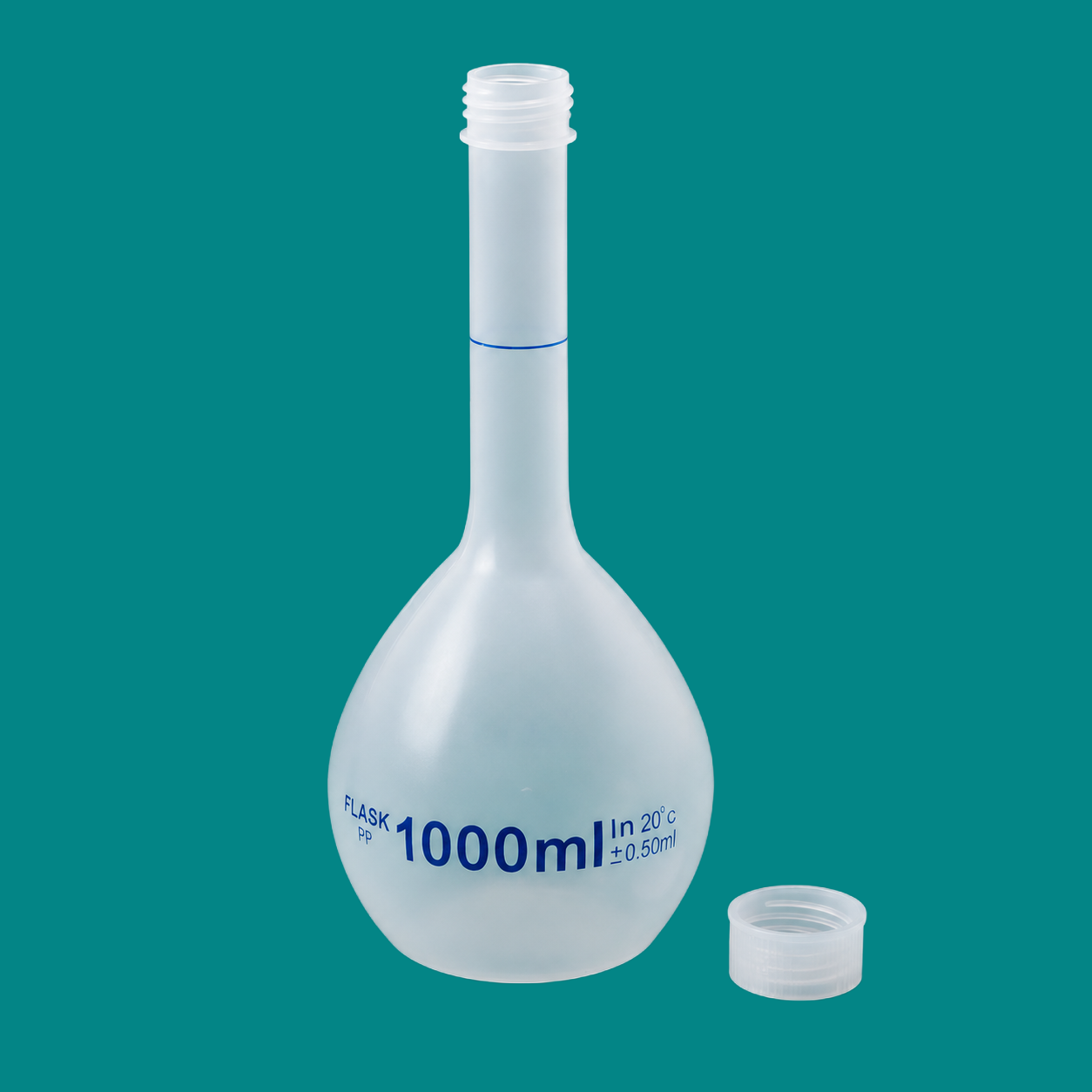

Polypropylene volumetric flasks span 10ml to 1000ml with screw-cap and stopper-style closure variants. Capacity-specific neck and body dimensions give laboratories options for solution preparation, dilution and routine volume work without splitting the two closure styles into separate product families. These general-purpose measuring flasks should be matched to the method by capacity and closure, with any required tolerance or calibration class confirmed separately.
